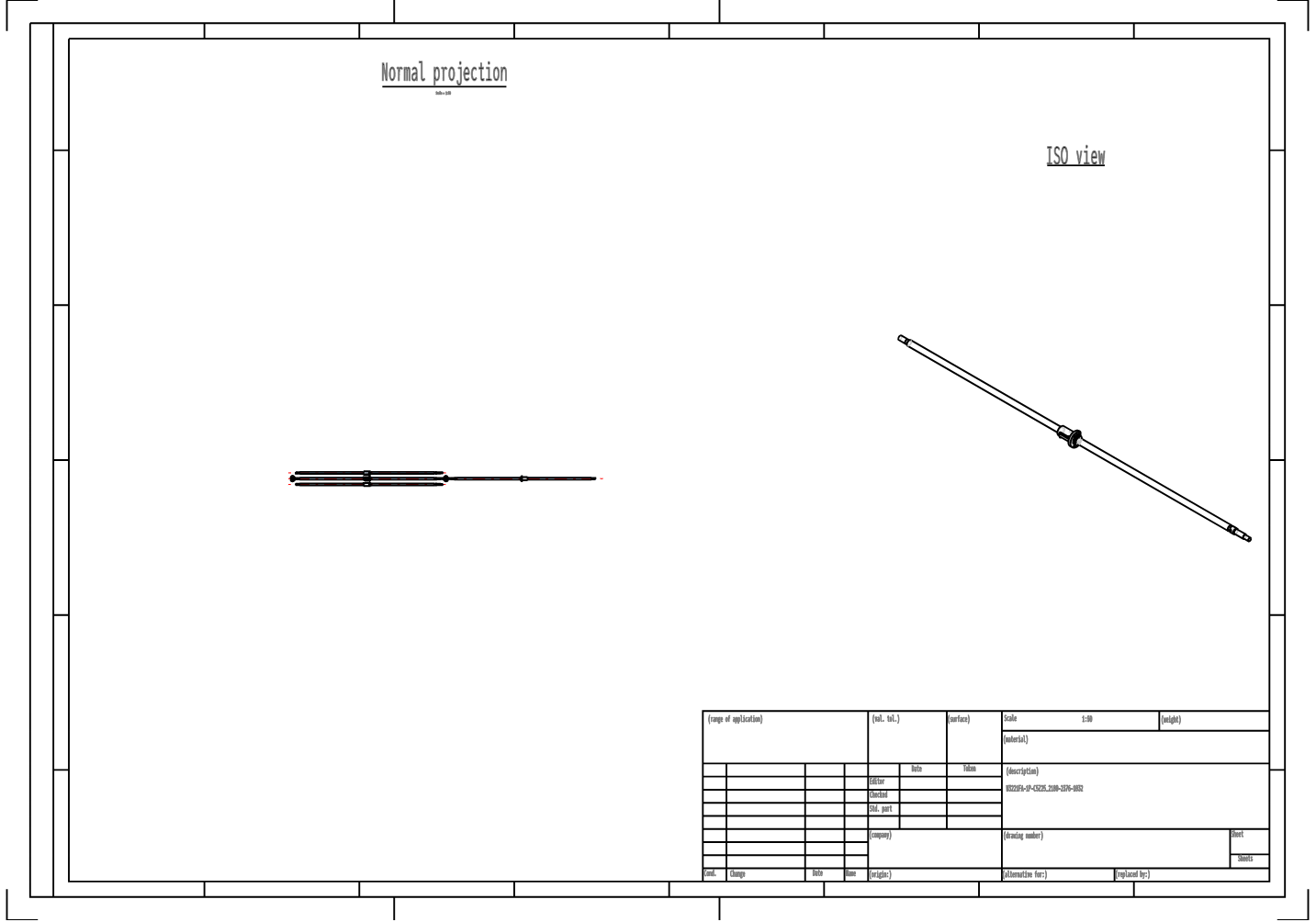

W3221FA-1P-C5Z25 Ball Screw NSK FA Type Heavy-duty Ball Screw

The NSK W3221FA-1P-C5Z25 is a high-lead precision ball screw from the NSK FA series. It features a 32mm screw diameter and a 25mm lead, offering high load capacity, high rigidity, low noise, and high-speed operation. It is suitable for high-precision linear drive applications such as CNC machine tools, automation equipment, semiconductor equipment, laser processing, and industrial robots.

The W3221FA-1P-C5Z25 ball screw is a C5 precision grade screw with a preloaded structure and standard end machining design, improving positioning accuracy and operational stability while supporting high-speed continuous operation and long service life.

Features of W3221FA-1P-C5Z25 Finished Ball Screw:

Conduit-type External Circulation: Utilizes a conduit-type external circulation ball screw system, allowing the balls to circulate smoothly within a conduit outside the nut, resulting in a smoother path.

Precise Clearance Control: Zero axial clearance, balancing high-precision positioning with smooth motion, avoiding overheating and wear caused by overload.

Compact Structure: The FA series nut has a 30% smaller outer diameter than traditional products, suitable for confined installation spaces, especially ideal for small automated equipment.

Long Life Design: High-quality bearing steel material + precision heat treatment process, combined with LR3 grease, ensures long-term stable operation.

Applications of NSK 32×25 FA type finished ball screws with shaft end fittings:
Semiconductor manufacturing, Electronic equipment, Medical instruments, Precision measurement, Automation equipment
