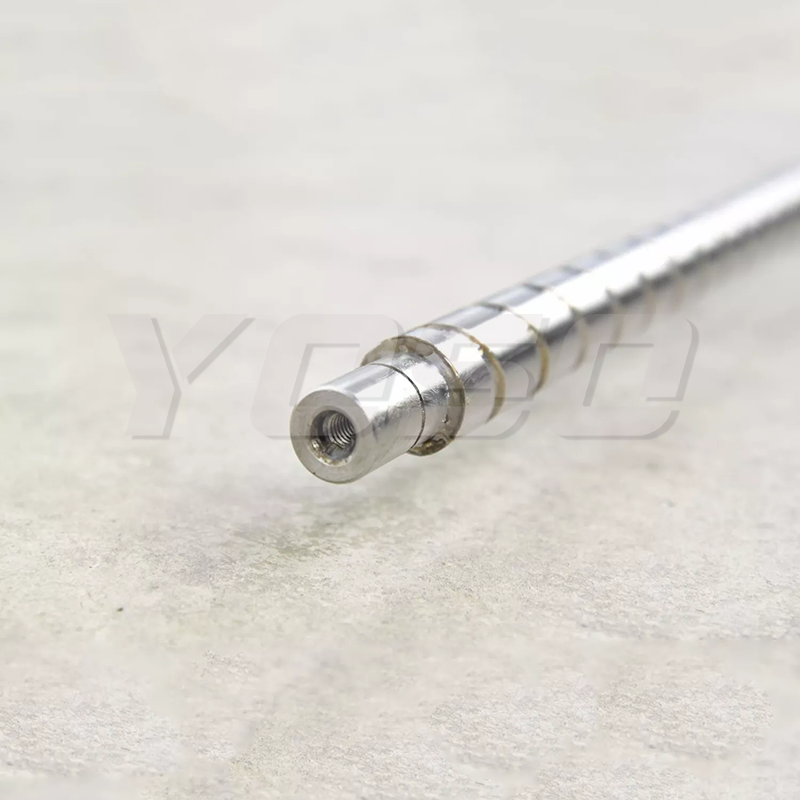

W3211FA-4-C5T32 NSK Shaft End Finished Products FA Type C5 Grade Ball Screw

The NSK W3211FA-4-C5T32 is a high-lead precision ball screw with a 32mm diameter and 32mm lead. It belongs to the FA type and has a precision grade of C5. It can achieve high-speed linear motion. The total length of the screw is about 1376mm. It is suitable for applications requiring rapid positioning, such as automated equipment.

Features of NSK W3211FA-4-C5T32 Ball Screw:

Large Lead and High Speed: With a lead of 32mm, it significantly reduces positioning time, making it ideal for efficiency-driven automation applications.

High-Precision Positioning Capability: C5 accuracy class enables high-precision and repeatable positioning, smooth operation, and minimal transmission error.

Powerful Load Capacity: Rated dynamic load (Ca) is 13300 N, and static load (C0a) is 25200 N, allowing it to withstand greater external forces and higher speeds with strong stability.

Applications of NSK FA type shaft-end finished ball screws:

CNC machine tools: machining centers, lathes, milling machines, etc.

Automation equipment: industrial robots, automated assembly lines, precision positioning platforms

Semiconductor equipment: wafer handling, testing equipment

Medical equipment: precision medical instruments, diagnostic equipment

Precision measuring instruments: coordinate measuring machines, image measuring instruments
