The NSK W2517FA-1P-C5Z20 is a high-precision ball screw with a finished shaft end and a flanged single nut, belonging to the FA type for industrial automation equipment.
The W2517FA-1P-C5Z20 ball screw features standard machined ends for easy installation and is suitable for automation equipment and precision linear drive systems requiring high speed response and smooth operation.
The main features of the W2517FA-1P-C5Z20 external circulation ball screw are as follows:
High positioning accuracy: C5 grade accuracy, precision ground for smooth operation.
Zero axial backlash: Achieved through interference ball preload (P-type), resulting in zero axial backlash, high rigidity, and suitability for bidirectional precision positioning.
Compact structure: Flange-type single nut design saves installation space.
Wide applicability: Designed specifically for industrial automation equipment (FA series), commonly found in CNC machine tools, industrial robots, automotive equipment, and precision manufacturing lines.
Typical application industries for the W2517FA-1P-C5Z20 large lead ball screw:
Industrial Automation
CNC Equipment
Electronic Manufacturing Equipment
Packaging/Printing Machinery
Logistics and Conveying Equipment
Electric Cylinders/Actuators

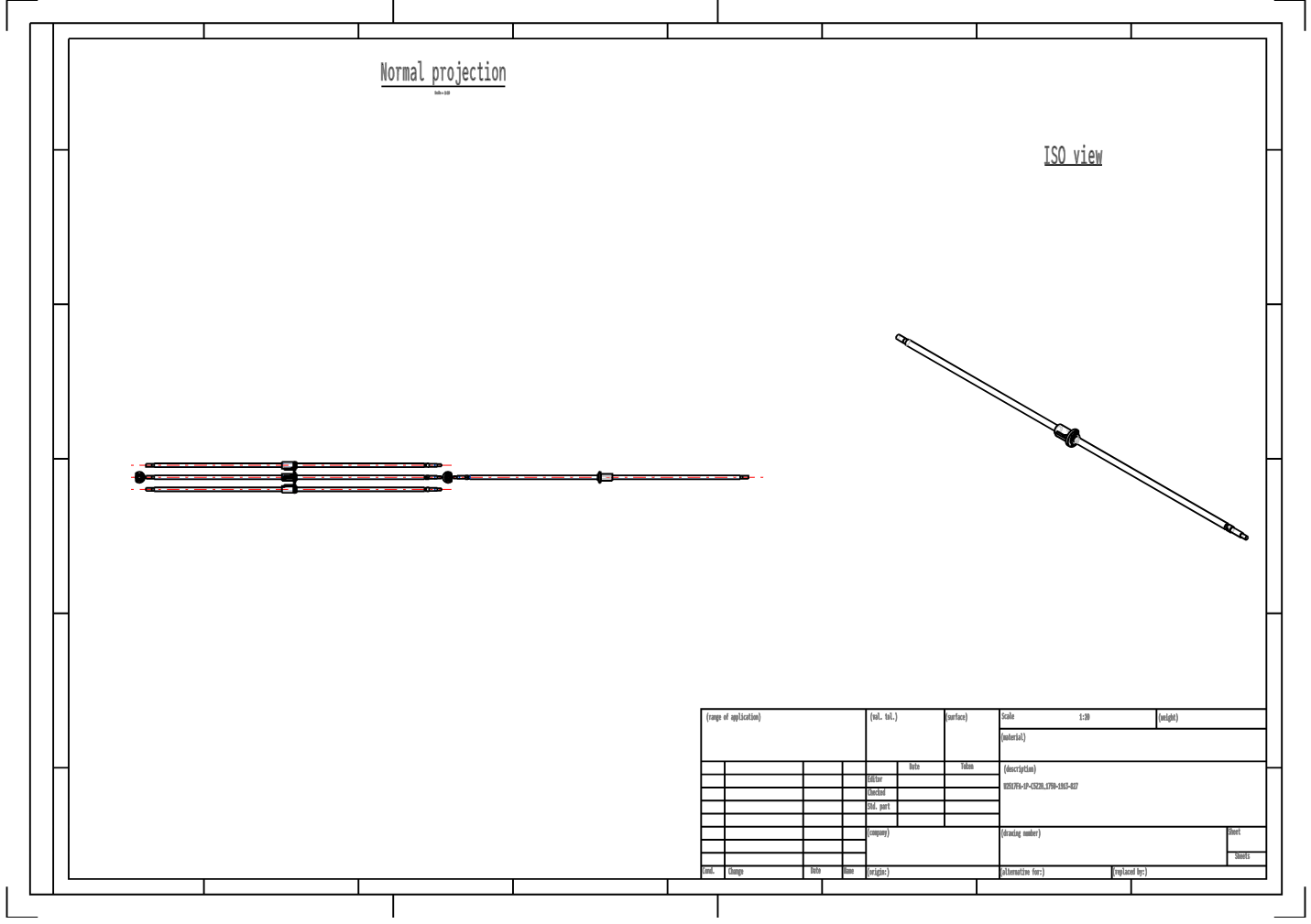

Item |
Specification |
Model No. |
W2517FA-1P-C5Z20 |
Series |
Shaft End Finished Product |
Type |
FA |
Screw Shaft Diameter [mm] |
25 |
Lead [mm] |
20 |
Accuracy Grade |
C5 |
Ball Diameter [mm] |
4.762 |
Valid Number of Laps |
2.5×1 |
Gap Symbol |
Z |
Circulation Method |
Pipe Circulation |
Nut Length [mm] |
96 |
Maximum travel [mm] |
1640 |
Screw Length (Lt) [mm] |
1750 |
Screw Length (La) [mm] |
1780 |
Screw Length (L) [mm] |
1913 |
Weight [kg] |
7.6 |
Rated Dynamic Load [N] |
11700 |
Rated Static Load [N] |
16300 |
Maximum Speed [Fixed-Free] (min-1) |
1090 |
Drive Side Support Unit |
WBK20-01A(Square) WBK20-11(Round) |
Reverse Drive Side Support Unit |
WBK20S-01(Square) |
