The NSK W2513FA-1P-C5Z20 is one of the standardized ball screw models in the NSK FA Series, belonging to the A-Series finished ball screws with machined shaft ends.
Features of the W2513FA-1P-C5Z20 finished ball screw with machined shaft ends:
High Precision: C5 grade precision ensures minimal lead error over long strokes.
High Transmission Efficiency: The rolling motion of the balls between the screw and nut results in low friction loss and higher efficiency than sliding screws.
Good Stability and Durability: NSK's proprietary manufacturing processes and materials ensure stability under high speed and heavy loads.
The NSK W2513FA-1P-C5Z20 ball screw is commonly used in:
CNC Machine Tools: Feed axes of CNC machining centers, lathes, and milling machines.
Automated Production Lines: Robotic arms, material handling robots.
Precision Measuring Instruments: Coordinate measuring machines, etc.

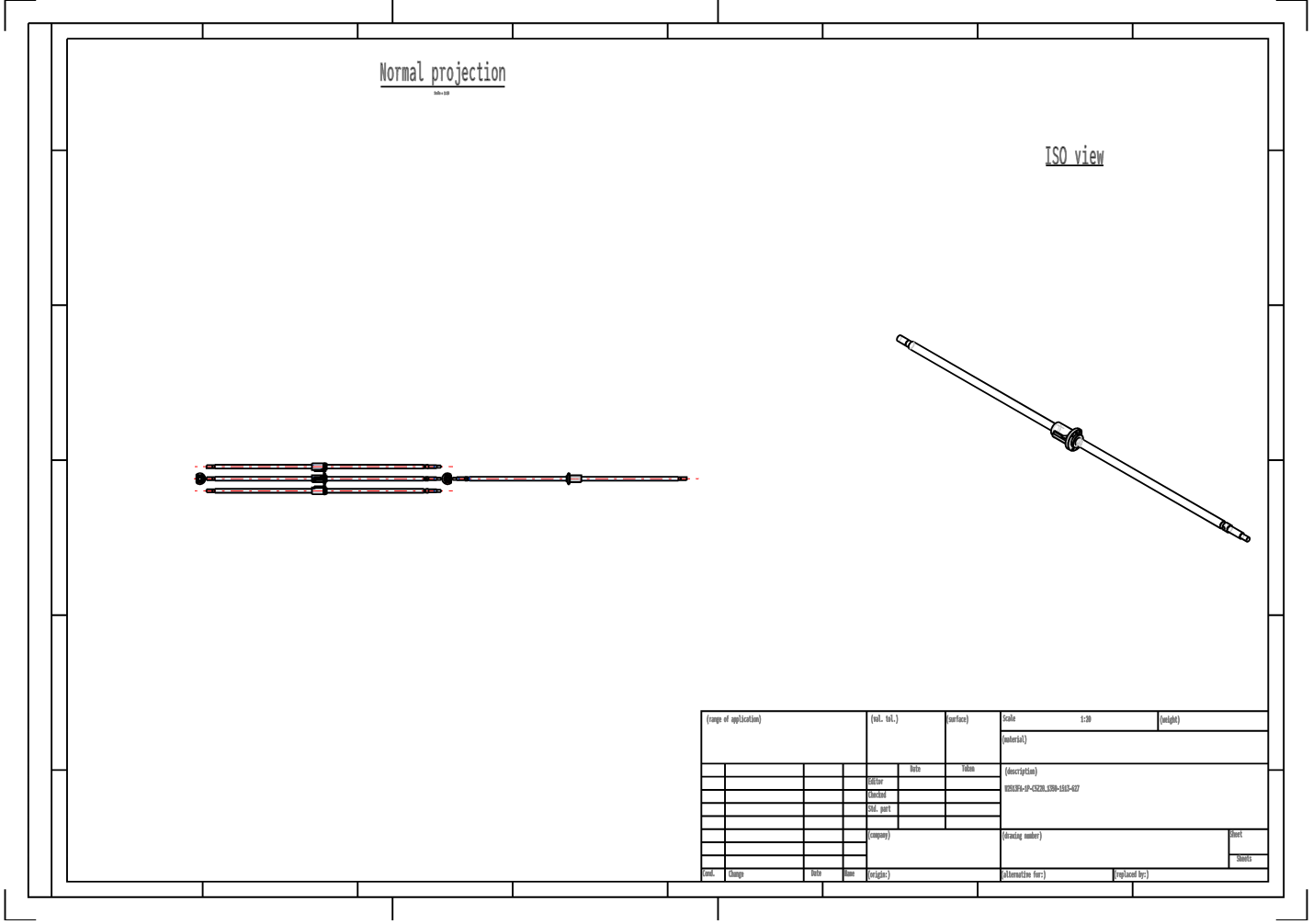

Item |
Specification |
Model No. |
W2513FA-1P-C5Z20 |
Series |
Shaft End Finished Product |
Type |
FA |
Screw Shaft Diameter [mm] |
25 |
Lead [mm] |
20 |
Accuracy Grade |
C5 |
Ball Diameter [mm] |
4.762 |
Valid Number of Laps |
2.5×1 |
Gap Symbol |
Z |
Circulation Method |
Pipe Circulation |
Nut Length [mm] |
96 |
Maximum travel [mm] |
1240 |
Screw Length (Lt) [mm] |
1350 |
Screw Length (La) [mm] |
1380 |
Screw Length (L) [mm] |
1513 |
Weight [kg] |
6.2 |
Rated Dynamic Load [N] |
11700 |
Rated Static Load [N] |
16300 |
Maximum Speed [Fixed-Free] (min-1) |
2800 |
Drive Side Support Unit |
WBK20-01A(Square) WBK20-11(Round) |
Reverse Drive Side Support Unit |
WBK20S-01(Square) |
