The NSK W2509FA-4-C5T25 ball screw is a C5-grade precision FA-type ball screw with a 25mm shaft diameter, 25mm lead, and a finished shaft end. It features single-nut preload, axial clearance ≤0.005mm, high rigidity, and strong load-bearing capacity, making it suitable for medium-to-high load automated equipment such as CNC machine tools and robots.
Features of the NSK W2509FA-4-C5T25 Finished Ball Screw:
High Precision: C5 precision ensures minimal lead error over long strokes.
High Transmission Efficiency: The rolling motion of the balls between the screw and nut results in low friction loss and higher efficiency than sliding screws.
Good Stability and Durability: NSK's proprietary manufacturing processes and materials guarantee stability under high speed and heavy loads.
The NSK W2509FA-4-C5T25 ball screw is commonly used in:
CNC Machine Tools: Feed axes of CNC machining centers, lathes, and milling machines.
Automated Production Lines: Robotic arms and material handling robots.
Precision Measuring Instruments: Coordinate measuring machines, etc.

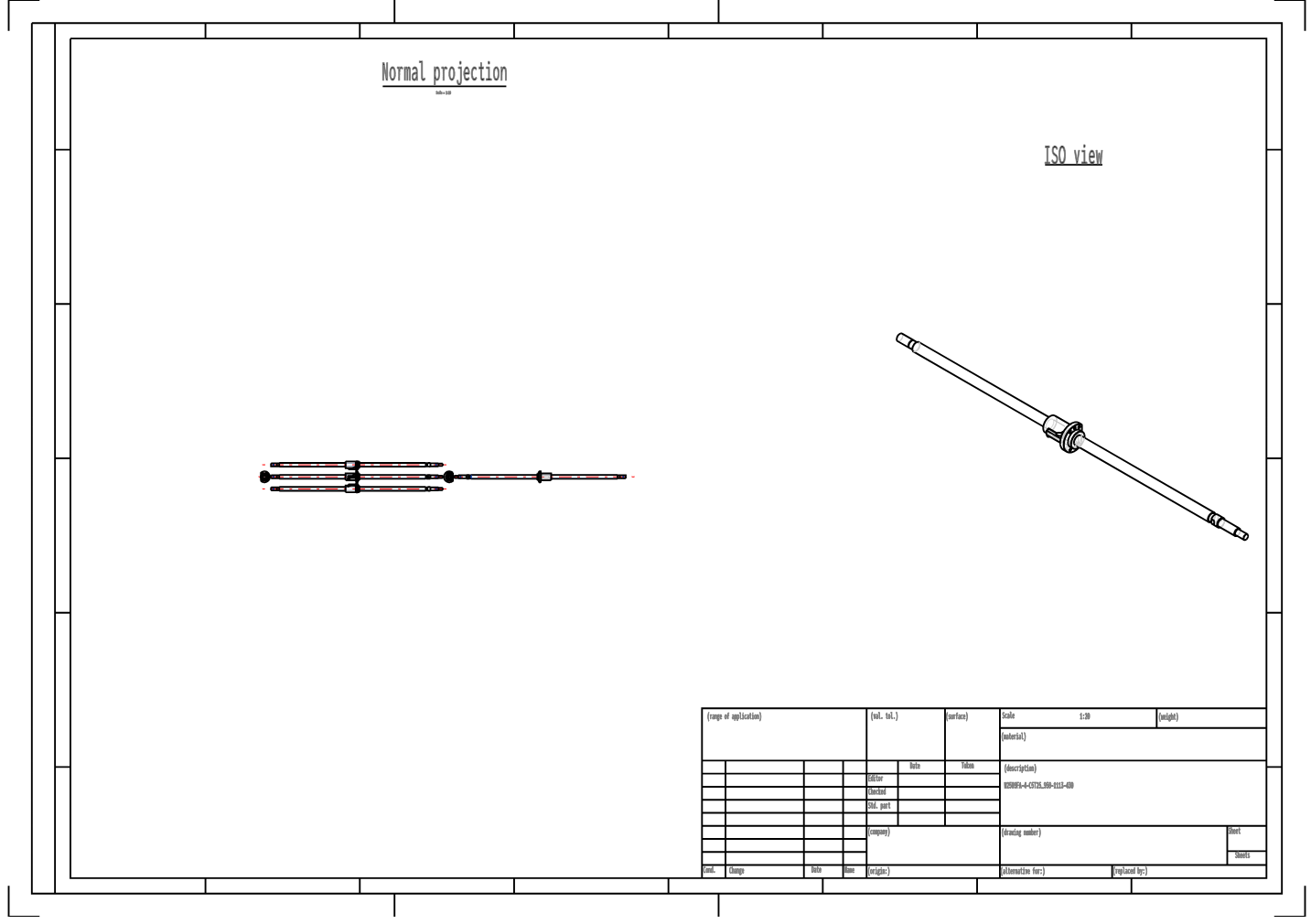

Item |
Specification |
Model No. |
W2509FA-4-C5T25 |
Series |
Shaft End Finished Product |
Type |
FA |
Screw Shaft Diameter [mm] |
25 |
Lead [mm] |
25 |
Accuracy Grade |
C5 |
Ball Diameter [mm] |
4.762 |
Valid Number of Laps |
1.5×1 |
Gap Symbol |
T |
Circulation Method |
Pipe Circulation |
Nut Length [mm] |
90 |
Maximum travel [mm] |
846 |
Screw Length (Lt) [mm] |
950 |
Screw Length (La) [mm] |
980 |
Screw Length (L) [mm] |
1113 |
Weight [kg] |
4.7 |
Rated Dynamic Load [N] |
11700 |
Rated Static Load [N] |
19700 |
Maximum Speed [Fixed-Free] (min-1) |
2800 |
Drive Side Support Unit |
WBK20-01A(Square) WBK20-11(Round) |
Reverse Drive Side |
WBK20S-01(Square) |
