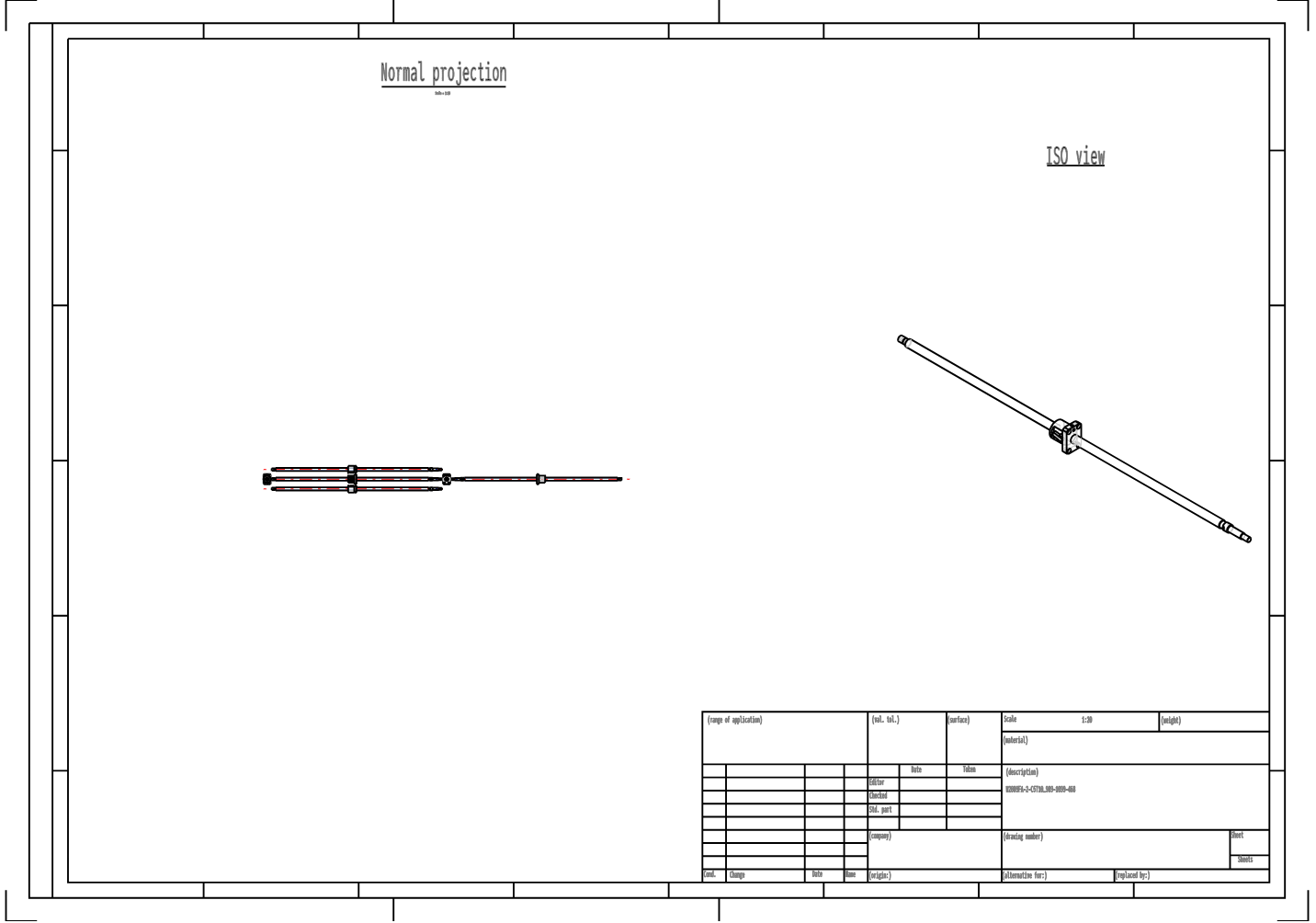

The NSK W2009FA-2-C5T10 is an external circulation ball screw with a diameter of 20 mm, a lead of 10 mm, a total length of approximately 1100 mm, a right-hand thread configuration, a root diameter of approximately 16.9 mm, and a C5 precision grade. It features high precision, low backlash, and high-efficiency transmission characteristics. The W2009FA-2-C5T10 shaft-end finished ball screw is suitable for high-speed positioning and precision linear motion applications in CNC machine tools and automated equipment.
Item |
Specification |
Model No. |
W2009FA-2-C5T10 |
Series |
Shaft End Finished Product |
Type |
FA |
Screw Shaft Diameter [mm] |
20 |
Lead [mm] |
10 |
Accuracy Grade |
C5 |
Ball Diameter [mm] |
3.969 |
Valid Number of Laps |
2.5×1 |
Gap Symbol |
Z |
Circulation Method |
Pipe Circulation |
Nut Length [mm] |
54 |
Maximum travel [mm] |
929 |
Screw Length (Lt) [mm] |
989 |
Screw Length (La) [mm] |
1014 |
Screw Length (L) [mm] |
1099 |
Weight [kg] |
3.0 |
Rated Dynamic Load [N] |
8350 |
Rated Static Load [N] |
11000 |
Maximum Speed [Fixed-Free] (min-1) |
3000 |
Drive Side Support Unit |
WBK15-01A(Square) WBK15-11(Round) |
Reverse Drive Side |
WBK15S-01(Square) |
