W1605FA-6GX-C5T32 Micro-gap Ball Screw NSK Shaft End Finished Product
W1605FA-6GX-C5T32 Micro-gap Ball Screw NSK Shaft End Finished Product
W1605FA-6GX-C5T32 Micro-gap Ball Screw NSK Shaft End Finished Product
W1605FA-6GX-C5T32 Micro-gap Ball Screw NSK Shaft End Finished Product
W1605FA-6GX-C5T32 Micro-gap Ball Screw NSK Shaft End Finished Product
W1605FA-6GX-C5T32 Micro-gap Ball Screw NSK Shaft End Finished Product

W1605FA-6GX-C5T32 Micro-gap Ball Screw NSK Shaft End Finished Product

Inquiry Contact Us
  • Description
1

+86-13636560152
[email protected]
Inquiry
The NSK W1605FA-6GX-C5T32 FA type ball screw has a 16mm shaft diameter and a 32mm lead, classifying it as an ultra-large lead ball screw. The FA W1605FA-6GX-C5T32 shaft-end finished ball screw features an end-cap circulation design with a flange-type nut, ensuring convenient installation and smooth operation. It is commonly used in industrial automation equipment.
The NSK shaft-end finished FA type precision ground ball screw features:
It employs an end-cap circulation structure, where the balls flow back through the end cap inside the nut, resulting in a more compact design with no exposed ball return tube, suitable for space-constrained equipment;
The large 32mm lead allows for a large linear travel distance per unit speed, providing excellent high-speed feed capability, suitable for rapid positioning and handling;
It is commonly available in higher precision grades (such as C5), offering good repeatability and meeting the needs of precision automation;
The shaft end is a finished structure with pre-machined mounting positions, allowing direct assembly of bearings and couplings, reducing design and manufacturing costs.
Typical application scenarios for small diameter + high lead ball screws:
I. Automation equipment / Industrial field
II. Semiconductor & electronic manufacturing equipment
III. Light machine tools / Auxiliary feed mechanisms
IV. Medical equipment / Precision instruments
V. Robots and electric actuators
VI. Light-load high-speed special equipment

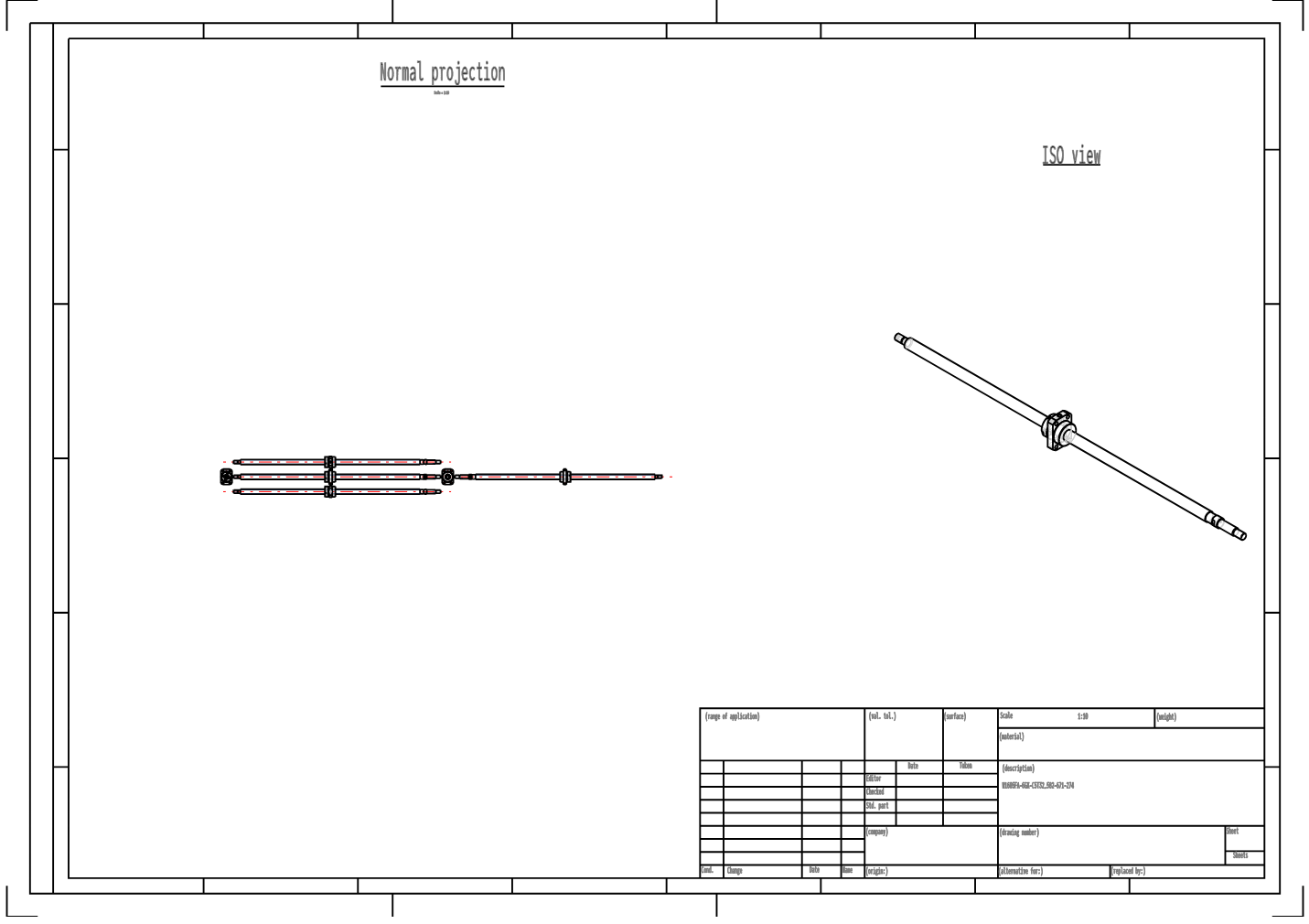

Item

Specification

Model No.

W1605FA-6GX-C5T32

Series

Shaft End Finished Product

Type

FA

Screw Shaft Diameter [mm]

16

Lead [mm]

32

Accuracy Grade

C5

Ball Diameter [mm]

3.175

Valid Number of Laps

0.7×2

Gap Symbol

T

Circulation Method

End Cap Circulation

Nut Length [mm]

34

Maximum travel [mm]

542

Screw Length (Lt) [mm]

582

Screw Length (La) [mm]

604

Screw Length (L) [mm]

671

Weight [kg]

1.2

Rated Dynamic Load [N]

4800

Rated Static Load [N]

7510

Maximum Speed [Fixed-Free] (min-1)

3000

Drive Side Support Unit

WBK12-01A(Square)

WBK12-11(Round)

Reverse Drive Side

WBK12S-01(Square)
