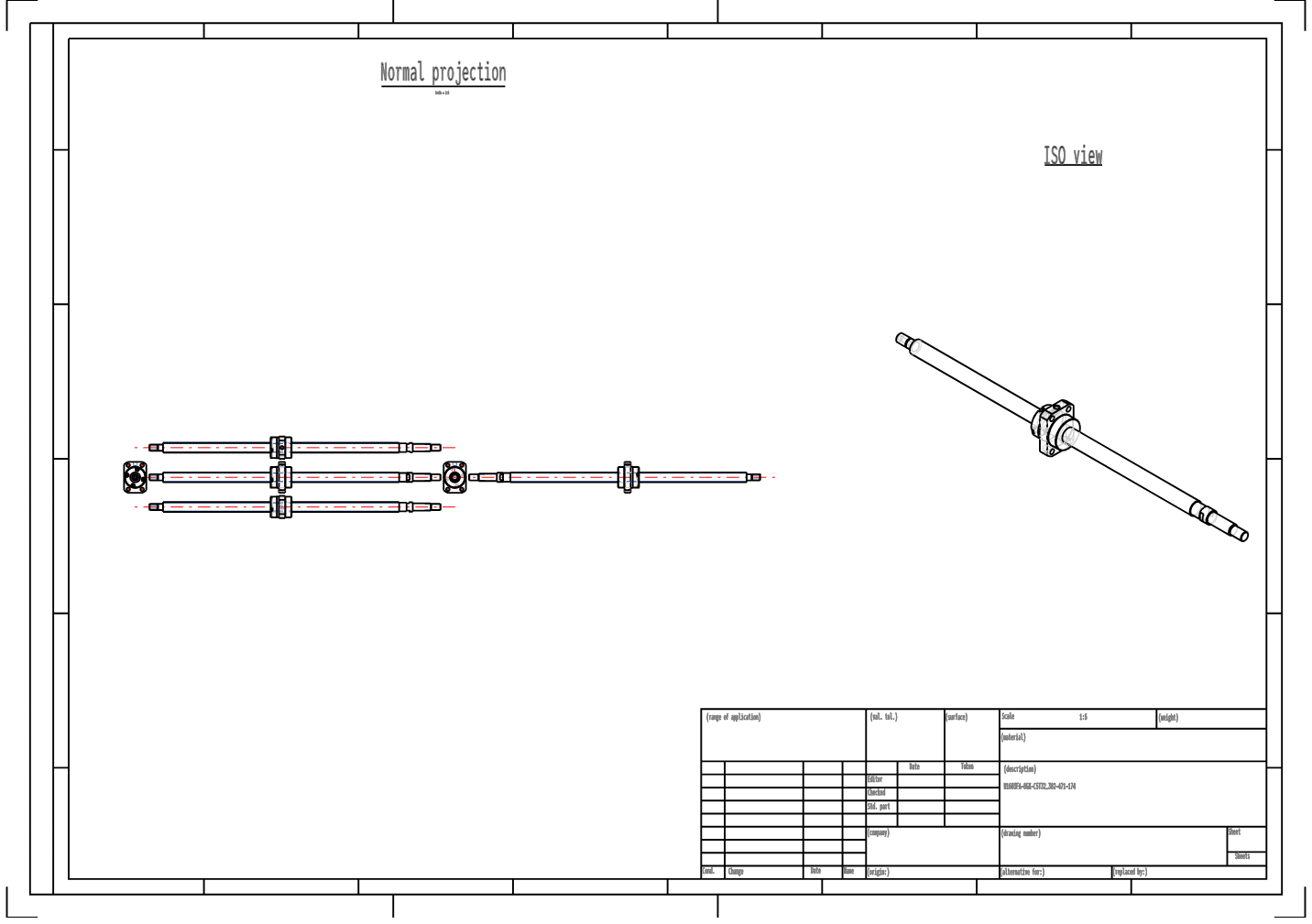

W1603FA-8GX-C5T32 NSK Ball Screw Shaft End Finished Product FA Type

The NSK W1603FA-8GX-C5T32 FA type ball screw has a 16mm shaft diameter and a 32mm lead, classifying it as an ultra-large lead ball screw. The FA W1603FA-8GX-C5T32 shaft-end finished ball screw features an end-cap circulation design with a flange-type nut, ensuring convenient installation and smooth operation. It is commonly used in industrial automation equipment.

The NSK shaft-end finished FA type precision ground ball screw features:

It employs an end-cap circulation structure, where the balls flow back through the end cap inside the nut, resulting in a more compact design with no exposed ball return tube, suitable for space-constrained equipment;

The large 32mm lead allows for a large linear travel distance per unit speed, providing excellent high-speed feed capability, suitable for rapid positioning and handling;

It is commonly available in higher precision grades (such as C5), offering good repeatability and meeting the needs of precision automation;

The shaft end is a finished structure with pre-machined mounting positions, allowing direct assembly of bearings and couplings, reducing design and manufacturing costs.
