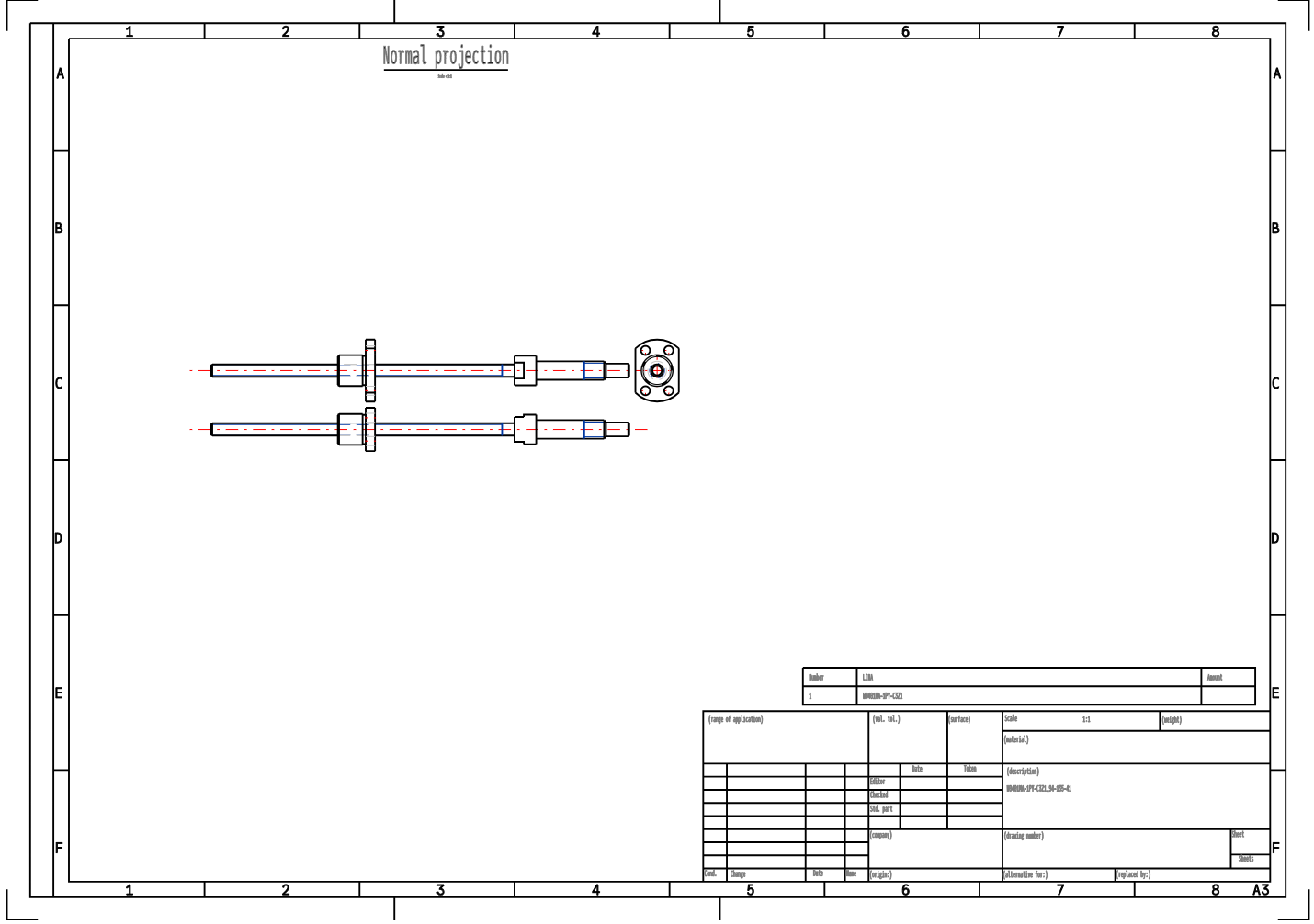

W0401MA-1PY-C3Z1 Small Lead, Small Diameter Ball Screw Precision Ball Screw

W0401MA-1PY-C3Z1 NSK miniature, low-lead ball screw, screw diameter 4mm, lead 1mm, C3 precision, flange nut, finished shaft end.

NSK MA finished shaft end products are standard NSK ball screw products with precision-machined shaft ends. Their main features include small lead, high precision, high speed, quiet operation, and a compact design. They are ready-to-use transmission components and are widely used in automation equipment and precision positioning systems.

MA Type Ball Screw Finished Shaft End Features:

Shaft End Condition: Finished shaft end products have pre-machined bearing mounting surfaces, keyways, threads, etc., and can be directly installed with support units.

Lead Features: Small lead design, suitable for high-precision micro-feed scenarios; minimum lead can reach 1mm.

Accuracy Grade: Standard accuracy is C3 and C5, meeting precision positioning requirements.

Cycle Method: Employs an end deflector cycle method, achieving high-speed, quiet operation (noise reduction of approximately 6dB compared to traditional methods).
