R151254013 Rexroth Flanged Single Nut FEM-E-S, standard sealing, for precision rolled ball screws SN-R, tolerance grades T5, T7, T9
Advantages of Rexroth FEM-E-S Flanged Single Nut Product:
⦁ Smooth operation due to the use of internal ball circulation design
⦁ Especially quiet operation thanks to the optimized ball lifting method
⦁ Preloaded single nuts are also adjustable
⦁ High rated load due to a large number of balls
⦁ Short nut length
⦁ No protruding parts, making the nut easy to install
⦁ Smooth external surface
⦁ Highly effective dustproof sealing
⦁ Wide range of products available, with stock on hand
Rexroth ball screw drive systems are successfully applied in various fields:
⦁ Machining tools
⦁ Forming processing equipment
⦁ Automation and handling
⦁ Wood processing
⦁ Electrical and electronics
⦁ Printing and paper
⦁ Injection molding machines
⦁ Food and packaging industry
⦁ Medical equipment
⦁ Textile industry
⦁ Others
Item |
Specification |
Part No. |
R151254013 |
Series |
Standard Series |
Nut Type |
FEM-E-S Flange Type Ball Nut |
Nominal Size [mm] |
50 × 10R × 6-6 |
Nominal Diameter [mm] |
50 |
Thread Direction |
Right-hand |
Lead [mm] |
10 |
Ball Diameter [mm] |
6 |
Number of Ball Circuits |
6 |

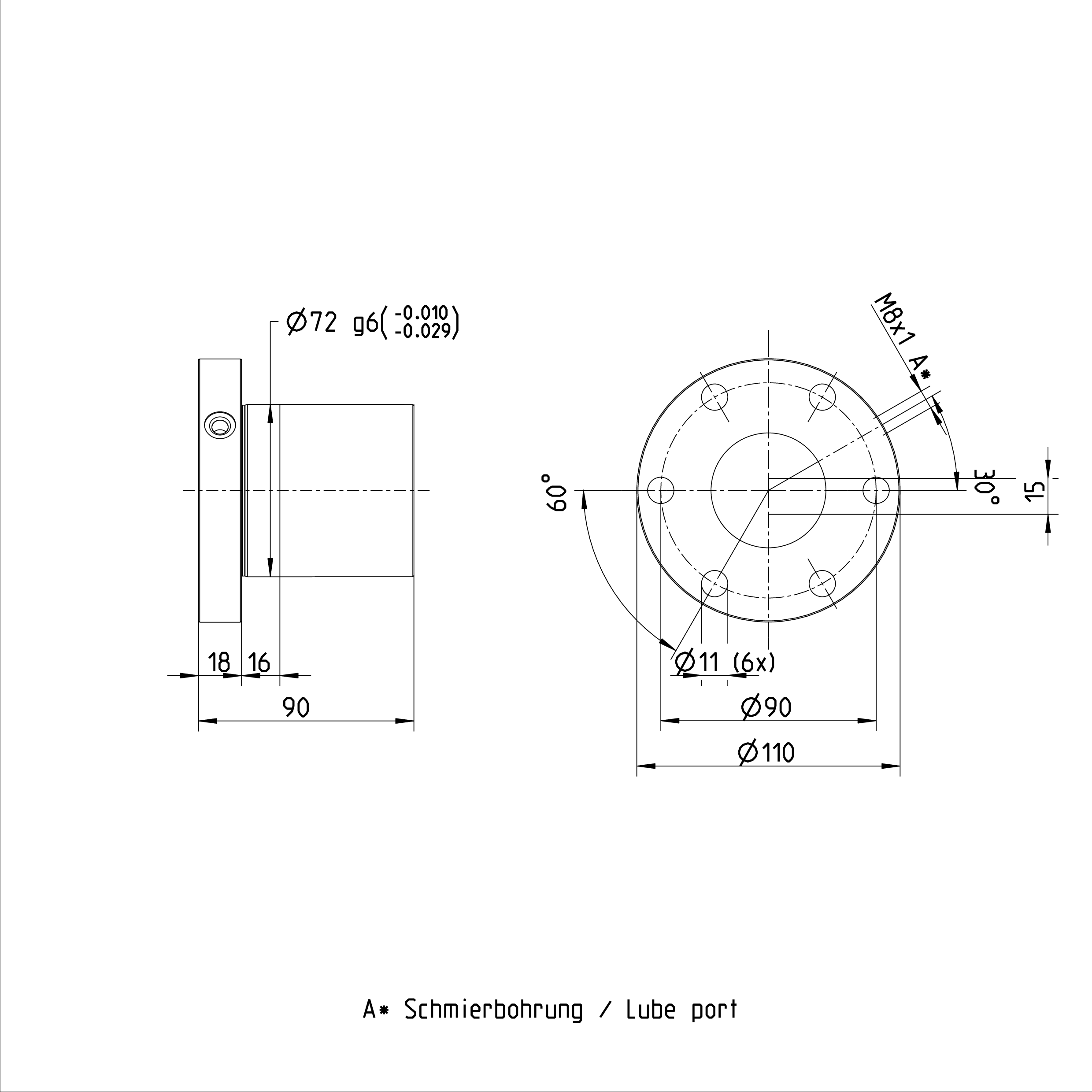

Nut Outer Diameter [mm] |
72 |
Flange Diameter [mm] |
110 |
Nut Length [mm] |
90 |
Mounting Holes |
BB4, 6 holes |
Weight [kg] |
2.02 |
Rated Dynamic Load [N] |
95600 |
Rated Static Load [N] |
166500 |
Max. Speed [m/min] |
30 |
