R254210005 Ball Nut with Low Friction Seal REXROTH 20 x 5R x 3 - 4 Ball Nut
R254210005 Ball Nut with Low Friction Seal REXROTH 20 x 5R x 3 - 4 Ball Nut

R254210005 Ball Nut with Low Friction Seal REXROTH 20 x 5R x 3 - 4 Ball Nut

Inquiry Contact Us
  • Description
1

+86-13636560152
[email protected]
Inquiry
R254210005 Rexroth Standard Series Nut, ZEV-E-S Screw-in Nut, No Seal, Tolerance Grades T3, T5, T7, T9

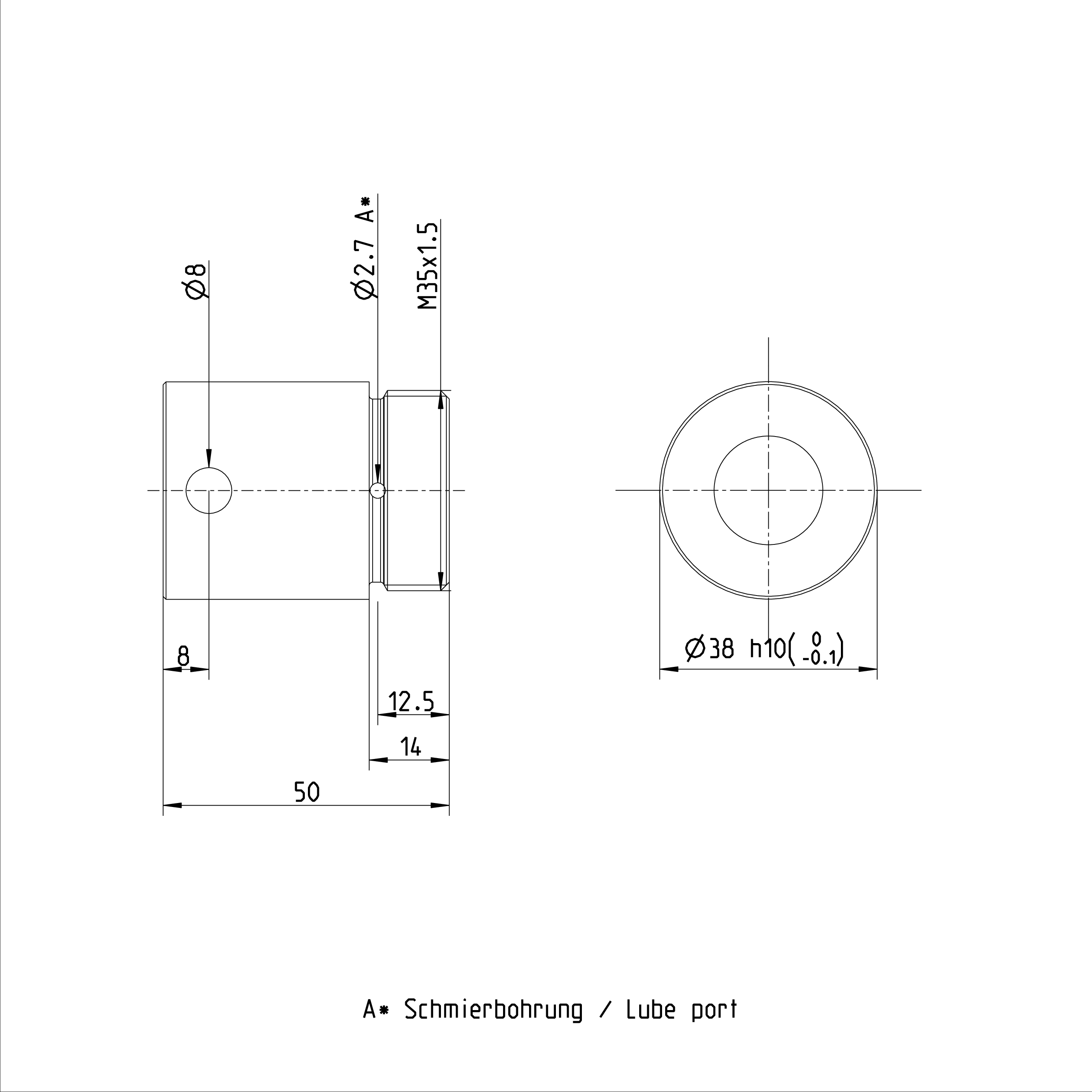

ZEV-E-S is a cylindrical screw-in single nut (without flange), end cap type ball recirculation design.
Installation Method: Threaded installation, saving axial/radial space, suitable for confined installation positions.
Sealing Configuration: Standard low-friction seal ring (some models offer no seal), reducing dust intrusion and extending lubrication intervals.
Preload and Clearance: Available in standard axial clearance version, with selectable preload grades C0, C00, C1 (micro-preload to light preload).
Tolerance Grades: Compatible with lead screw tolerances T3, T5, T7, T9, T10 (precision to general accuracy).
Material and Manufacturing Process: Metal body, end cap recirculation structure, smooth ball guidance, low operating noise, Dm-N High value
Rexroth ball screw drive systems have been successfully applied in various fields: machine tools, forming equipment, automation and material handling, woodworking, electrical and electronics, printing and papermaking, injection molding machines, food and packaging industries, medical equipment, textile industry, and others.

Item

Specification

Part No.

R254210005

Series

Standard Series

Nut Type

Screw-in Nut ZEV-E-S

Nominal Size [mm]

20 × 5R × 3- 4

Nominal Diameter [mm]

20

Thread Direction

Right-hand

Lead [mm]

5

Ball Diameter [mm]

3

Number of Ball Circuits

4

Nut Outer Diameter [mm]

38

Nut Length [mm]

50

Weight [kg]

0.25

Rated Dynamic Load [N]

17200

Rated Static Load [N]

21500

Max. Speed [m/min]

30
