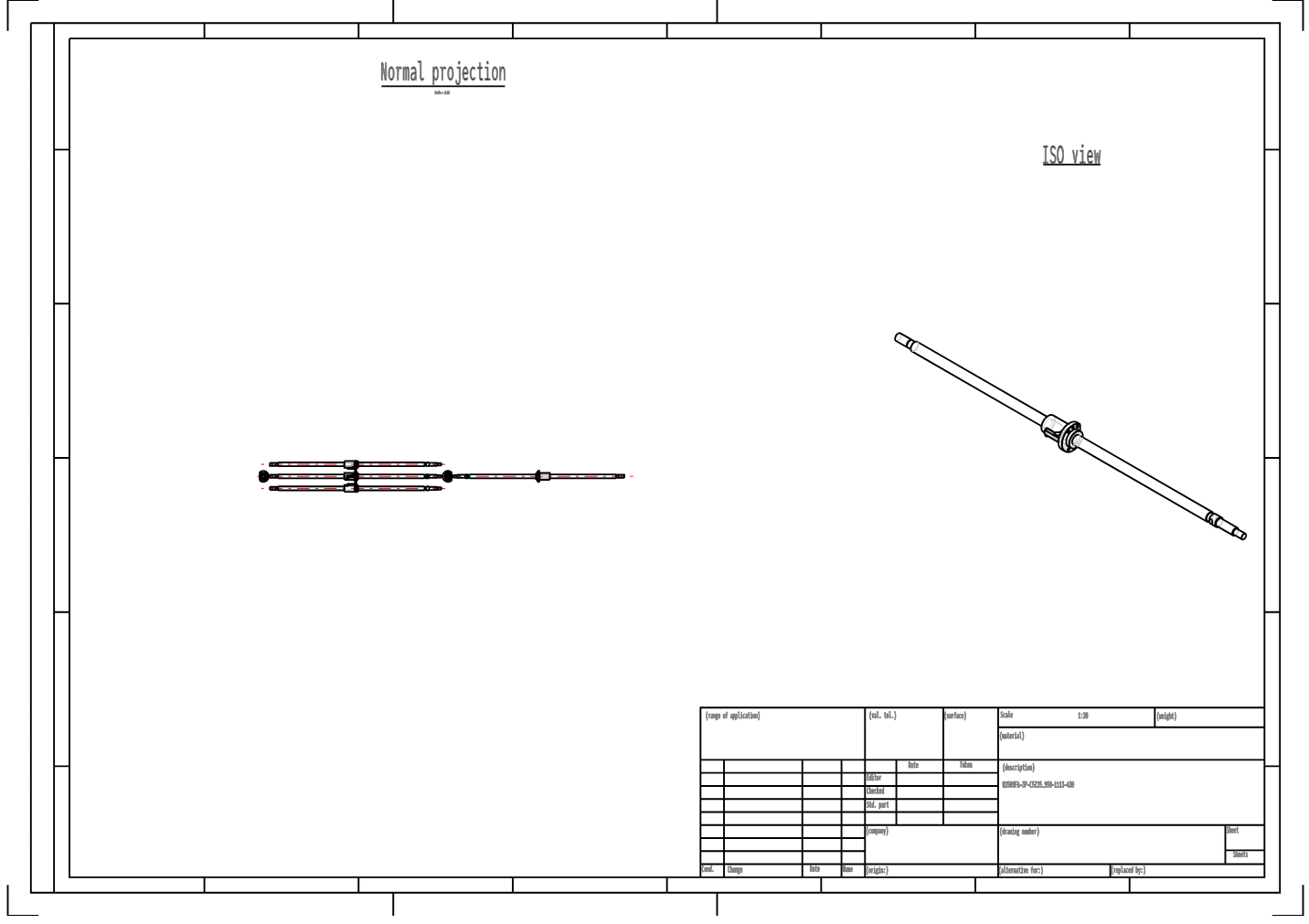

NSK W2509FA-3P-C5Z25 FA Type Ball Screw for Small Equipment

The NSK W2509FA-3P-C5Z25 is a FA series large-lead, shaft-end finished ball screw with a nominal diameter of 25 mm, a lead of 25 mm, and an accuracy class of C5.

The FA type W2509FA-3P-C5Z25 ball screw uses a tube-circulation structure, meaning the balls circulate through a return tube inserted into the nut body. Tube-circulation types are commonly used in medium to large-sized ball screws, featuring smooth operation and uniform force distribution, making them suitable for high-load working environments.

The main features of the W2509FA-3P-C5Z25 external circulation ball screw are as follows:

High positioning accuracy: Accuracy class up to C5, precision ground, ensuring smooth operation.

Zero axial backlash: Achieved through interference ball preload (P-type), resulting in zero axial backlash, high rigidity, and suitability for bidirectional precision positioning.

Compact structure: Flange-type single-nut design, saving installation space.

Wide applicability: Designed specifically for industrial automation equipment (FA series), commonly found in CNC machine tools, industrial robots, automotive equipment, and precision manufacturing lines.

Applications of NSK FA type shaft-end finished ball screws:

CNC machine tools: machining centers, lathes, milling machines, etc.

Automation equipment: industrial robots, automated assembly lines, precision positioning platforms

Semiconductor equipment: wafer handling, testing equipment

Medical equipment: precision medical instruments, diagnostic equipment

Precision measuring instruments: coordinate measuring machines, image measuring instruments
