NSK W2008FA-2-C5T10 Ball Screw for Pick and Place Machine
NSK W2008FA-2-C5T10 Ball Screw for Pick and Place Machine
NSK W2008FA-2-C5T10 Ball Screw for Pick and Place Machine
NSK W2008FA-2-C5T10 Ball Screw for Pick and Place Machine
NSK W2008FA-2-C5T10 Ball Screw for Pick and Place Machine
NSK W2008FA-2-C5T10 Ball Screw for Pick and Place Machine

NSK W2008FA-2-C5T10 Ball Screw for Pick and Place Machine

Inquiry Contact Us
  • Description
1

+86-13636560152
[email protected]
Inquiry

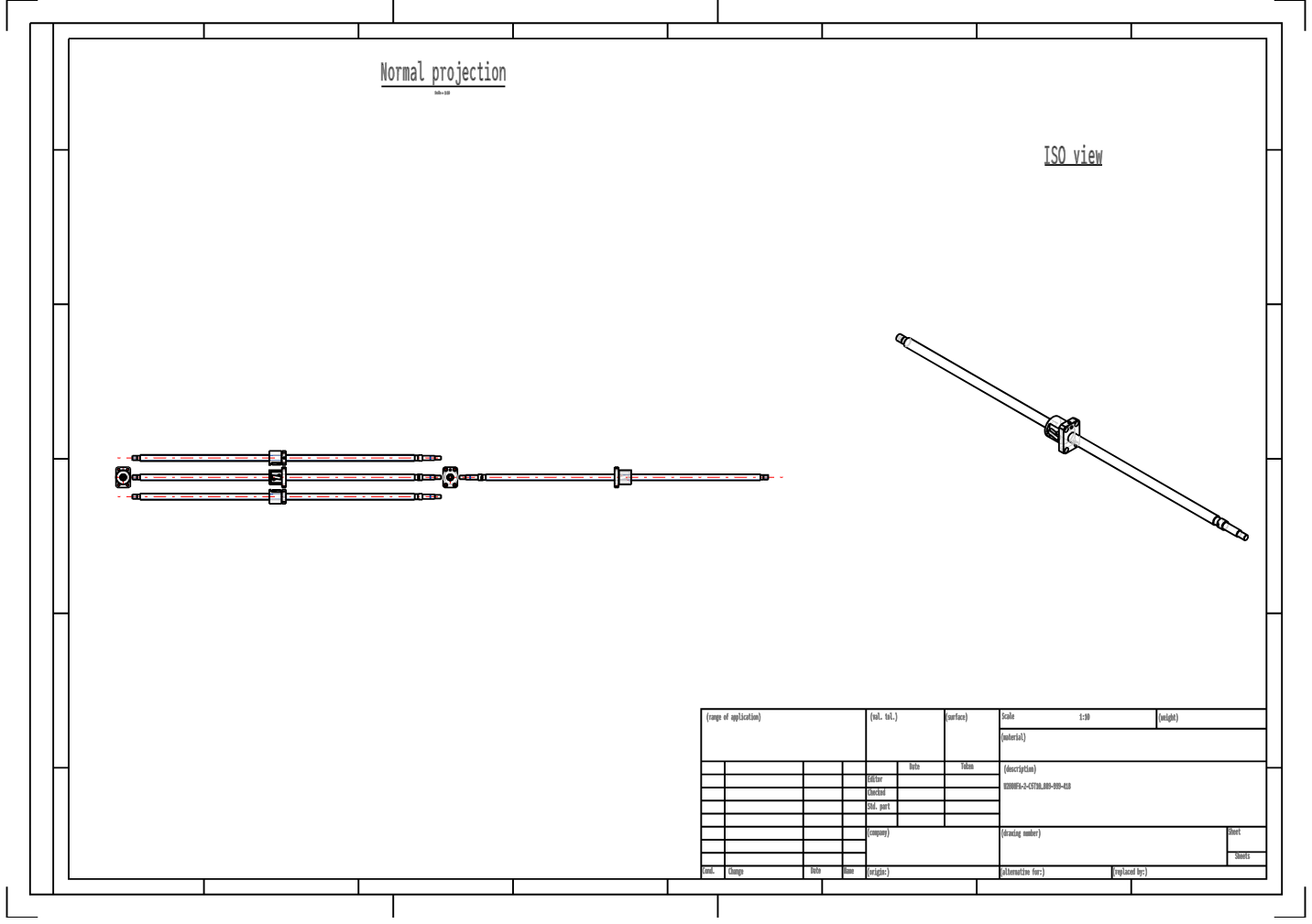

The NSK W2008FA-2-C5T10 is an external circulation ball screw with a diameter of 20 mm, a lead of 10 mm, a total length of approximately 1000 mm, a right-hand thread configuration, a root diameter of approximately 16.9 mm, and a C5 precision grade. It features high precision, low backlash, and high-efficiency transmission characteristics. The W2008FA-2-C5T10 shaft-end finished ball screw is suitable for high-speed positioning and precision linear motion applications in CNC machine tools and automated equipment.
NSK W2008FA-2-C5T10 Ball Screw Features:
High Precision (C5 Grade): Manufactured using a grinding process, resulting in small lead error and high repeatability, suitable for CNC machine tools and precision positioning systems.
High Load Capacity: Multiple balls bear force simultaneously, resulting in uniform load distribution and the ability to withstand large axial loads.
Standardized Shaft End (FA Type): The shaft end is pre-machined, allowing direct installation of standard support seats (such as BK/BF) without secondary machining.
External circulation (ball return tube type): The balls roll inside the nut to bear the load, and then return to the circulation channel through an external ball return tube. The structure is mature and stable, suitable for routine industrial conditions.
Typical application industries of NSK FA type shaft end finish control circulating ball screws:
I. Automation equipment industry
II. CNC machine tools and machining equipment
IV. Medical and laboratory equipment
V. Packaging and printing equipment
VI. Robotics and intelligent equipment

Item

Specification

Model No.

W2008FA-2-C5T10

Series

Shaft End Finished Product

Type

FA

Screw Shaft Diameter [mm]

20

Lead [mm]

10

Accuracy Grade

C5

Ball Diameter [mm]

3.969

Valid Number of Laps

2.5×1

Gap Symbol

Z

Circulation Method

Pipe Circulation

Nut Length [mm]

54

Maximum travel [mm]

829

Screw Length (Lt) [mm]

889

Screw Length (La) [mm]

914

Screw Length (L) [mm]

999

Weight [kg]

1.4

Rated Dynamic Load [N]

8350

Rated Static Load [N]

11000

Maximum Speed [Fixed-Free] (min-1)

3000

Drive Side Support Unit

WBK15-01A(Square)

WBK15-11(Round)

Reverse Drive Side

WBK15S-01(Square)
