NSK W1605FA-2-C5T16 Ball Screw C5 Precision Shaft-end Finished Ball Screw
NSK W1605FA-2-C5T16 Ball Screw C5 Precision Shaft-end Finished Ball Screw
NSK W1605FA-2-C5T16 Ball Screw C5 Precision Shaft-end Finished Ball Screw
NSK W1605FA-2-C5T16 Ball Screw C5 Precision Shaft-end Finished Ball Screw
NSK W1605FA-2-C5T16 Ball Screw C5 Precision Shaft-end Finished Ball Screw
NSK W1605FA-2-C5T16 Ball Screw C5 Precision Shaft-end Finished Ball Screw

NSK W1605FA-2-C5T16 Ball Screw C5 Precision Shaft-end Finished Ball Screw

Inquiry Contact Us
  • Description
1

+86-13636560152
[email protected]
Inquiry

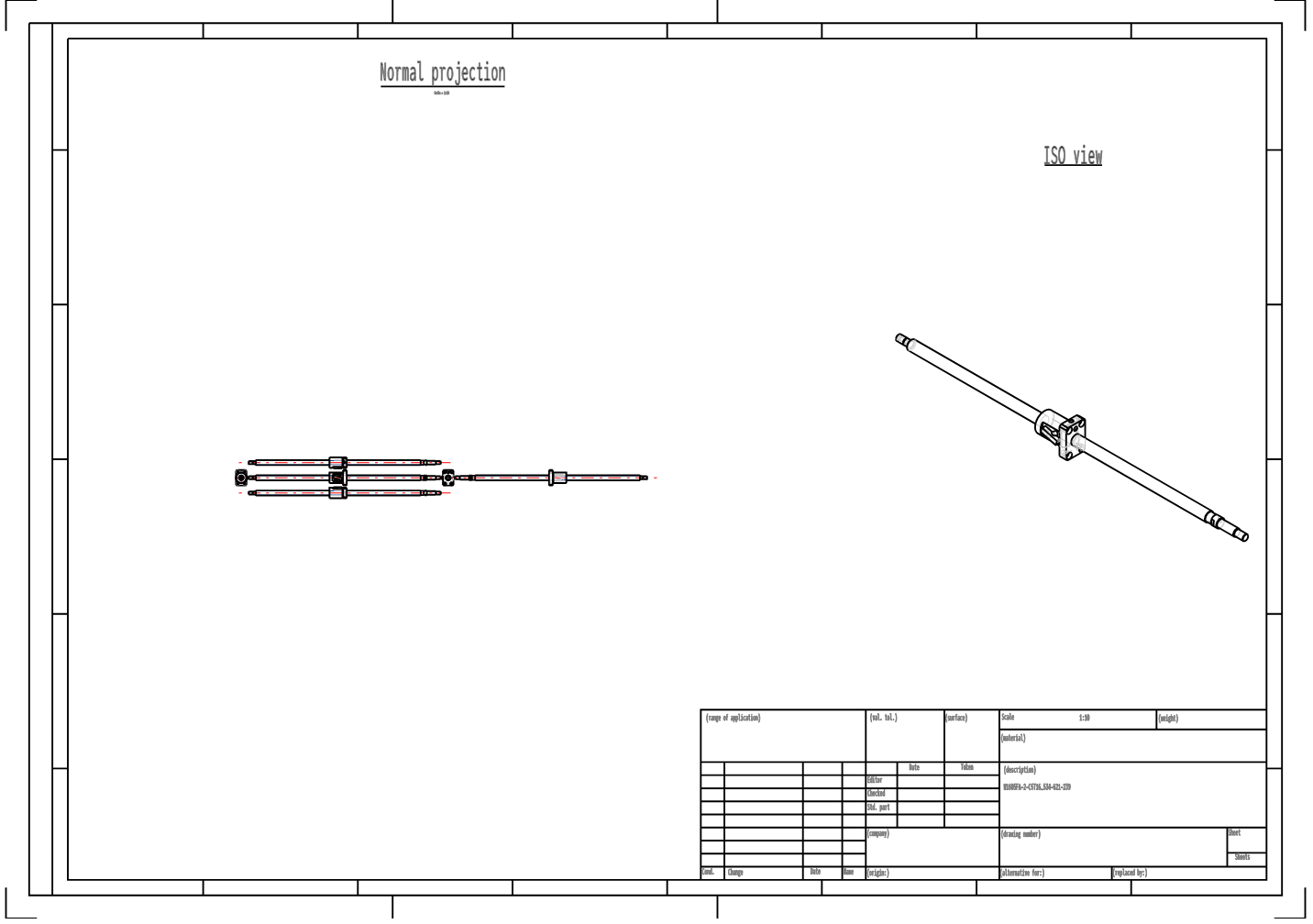

The NSK W1605FA-2-C5T16 ball screw is a large-lead ball screw with finished shaft ends. It has a 16mm diameter, 16mm lead, and C5 precision, and comes with a flange-type nut, suitable for precision linear drives.
The NSK FA type shaft-end finished ball screw is a standard ball screw series from NSK (Japan Precision Machinery). The shaft end is precision-machined and can be directly installed and used, eliminating the need for additional shaft end machining by the user, significantly shortening the equipment assembly cycle.
Features of the NSK FA type ball screw:
Pre-finished shaft end design: The shaft end is pre-machined (threads, keyways, etc.) at the factory, allowing for direct assembly and shortening the equipment development cycle.
High precision performance: C5 precision, combined with P preload, achieves micron-level positioning accuracy.
Compact structure: Smaller nut outer diameter saves equipment installation space, suitable for small precision equipment.
Reliable lubrication: Standard sealed grease supports long-term maintenance; some models can be upgraded to a maintenance-free lubrication system.
Fast Delivery: Commonly used specifications are in stock for quick response to demand.
Applications of W1605FA-2-C5T16 Precision Ball Screw:
Semiconductor manufacturing equipment, precision measuring instruments, electronic component assembly equipment, automated packaging, and medical devices; particularly suitable for applications requiring both compact space and high load.

Item

Specification

Model No.

W1605FA-2-C5T16

Series

Shaft End Finished Product

Type

FA

Screw Shaft Diameter [mm]

16

Lead [mm]

16

Accuracy Grade

C5

Ball Diameter [mm]

3.175

Valid Number of Laps

1.5×1

Gap Symbol

T

Circulation Method

Pipe Circulation

Nut Length [mm]

56

Maximum travel [mm]

472

Screw Length (Lt) [mm]

534

Screw Length (La) [mm]

554

Screw Length (L) [mm]

621

Weight [kg]

1.2

Rated Dynamic Load [N]

5480

Rated Static Load [N]

8080

Maximum Speed [Fixed-Free] (min-1)

3000

Drive Side Support Unit

WBK12-01A(Square)

WBK12-11(Round)

Reverse Drive Side

WBK12S-01(Square)
