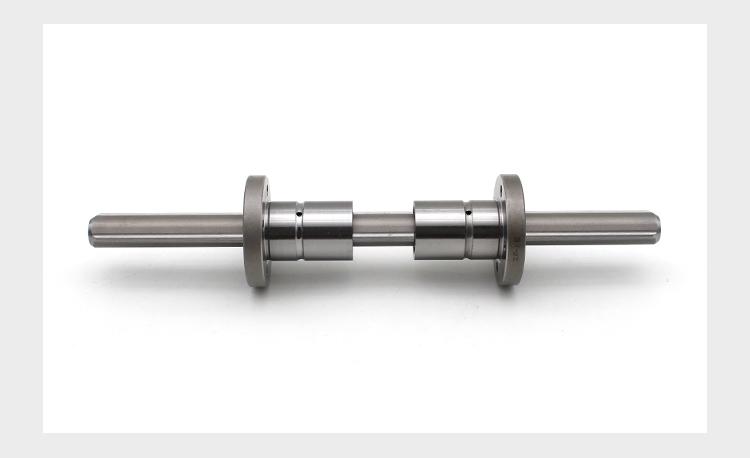

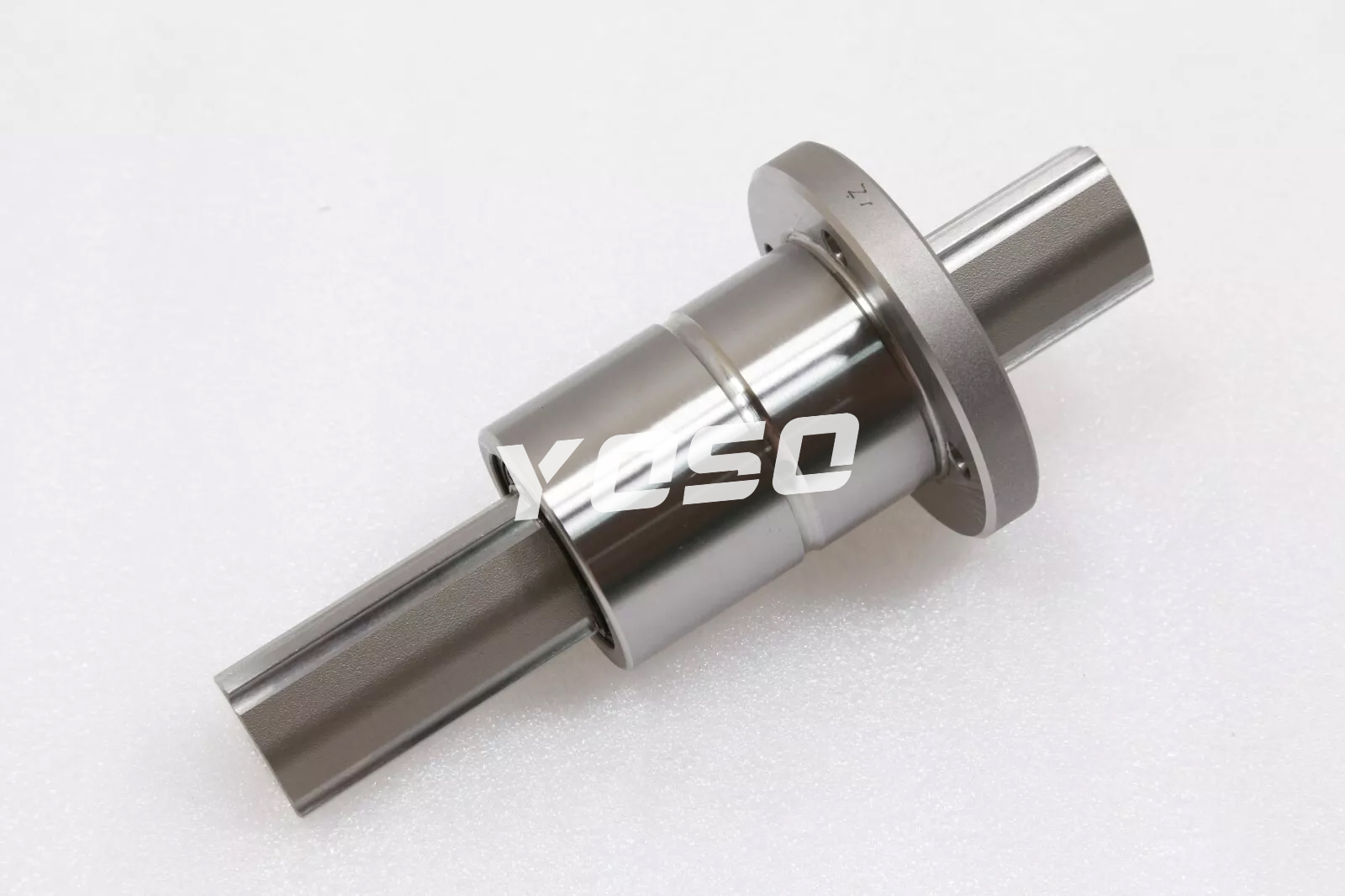

Ball spline sleeve: LBF 15 20 25 30 40 50 60 70 85 100 spline female

Inquiry Contact Us
  • Description
1

+86-13636560152
[email protected]
Inquiry



Model No. Nomina
shaft diameter
do 		External diameter
D 		Sleeve length
L1 		Maximum
shaft length
L 		Flange
diameter
D1 		Installation
hole center
D2 		Fange
thidkness
H
LBF15 15  23  0
-0.013 		40  0
-0.3 		400  43  0
-0.2 		32  7
LBF20 20  30  0
-0.013 		50  0
-0.3 		600  49  0
-0.2 		38  7
LBF25 25  38  0
-0.016 		60  0
-0.3 		800  60  0
0.2 		47  9
LBF30 30  45  0
-0.016 		70  0
-0.3 		1400  70  0
-0.2 		54  10
LBF32 32  48  0
-0.016 		70  0
-0.3 		1400  73  0
-0.2 		57  10
LBF40 50  57  0
-0.019 		90  0
-0.3 		1500  90  0
-0.2 		70  14
LBF50 50  70  0
-0.019 		100  0
-0.3 		1500  108  0
-0.2 		86  16
LBF60 60  85  0

-0.022 		127  0
-0.3 		1500  124  0
-0.2 		102  18
LBF70S 70  100  0
-0.022 		110  0
-0.3 		1700  142  0
-0.2 		117  20
LBF70 70  100  0
-0.022 		135  0
-0.3 		1700  142  0
-0.2 		117  20
LBF85S 85  120  0

-0.025 		140  0

-0.3 		1900  168  0

-0.2 		138  22
LBF85 85  120  0
-0.022 		155  0
-0.3 		1900  168  0
-0.2 		138  22
LBF100 100  135  0
-0.025 		160  0
-0.4 		1900  195  0
-0.2 		162  25


Model No. Counterbore
    depth
      h 		Oil hole
d 		Counterbore
diameter
d2 		Through hole
diameter
d1 		Oil hole
position
     F 		Basicrated torque Basic ratedload(radial)
Dynamic
torqueCT
    N-m 		   Static
torqueCoT
    N-m 		Rated
dynamic load
C(kN) 		Rated static
load
Co(kN)
LBF15 4.4  2  8  4.5  13  27.8  65.2  3.9  8.1
LBF20 4.4  3  8  4.5  18  62.3  135.2  6.6  12.7
LBF25 5  3  10  5.8  21  127.3  268.3  10.9  20.2
LBF30 6  3  11  6.6  25  155.7  318.7  11.1  20
LBF32 6  3  12  7  25  236.4  459.9  15.8  27.1
LBF40 7  4  15  9  31  548  1081.9  29.3  50.9
LBF50 9  4  18  11  34  880.6  1711.6  37.7  64.5
LBF60 11  4  18  11  45.5  2135.9  4172.9  76.2  131.1
LBF70S 13  4  20  13.5  35  2488  4141.1  76.1  111.5
LBF70 13  4  20  14  47.5  3153.4  5797.6  96.5  156.1
LBF85S 13  4  20  13.5  48  3978  6927.4  100.2  153.6
LBF85 13  5  20  13  55.5  4437.2  8082  111.8  179.2
LBF100 17.5  5  26  18  55  6905.9  11737.2  147.9  221.3
