FA Type Finished Shaft-end Ball Screw W2004FA-2-C5T10 NSK Ball Screw Wholesale
FA Type Finished Shaft-end Ball Screw W2004FA-2-C5T10 NSK Ball Screw Wholesale
FA Type Finished Shaft-end Ball Screw W2004FA-2-C5T10 NSK Ball Screw Wholesale
FA Type Finished Shaft-end Ball Screw W2004FA-2-C5T10 NSK Ball Screw Wholesale
FA Type Finished Shaft-end Ball Screw W2004FA-2-C5T10 NSK Ball Screw Wholesale
FA Type Finished Shaft-end Ball Screw W2004FA-2-C5T10 NSK Ball Screw Wholesale

FA Type Finished Shaft-end Ball Screw W2004FA-2-C5T10 NSK Ball Screw Wholesale

Inquiry Contact Us
  • Description
1

+86-13636560152
[email protected]
Inquiry

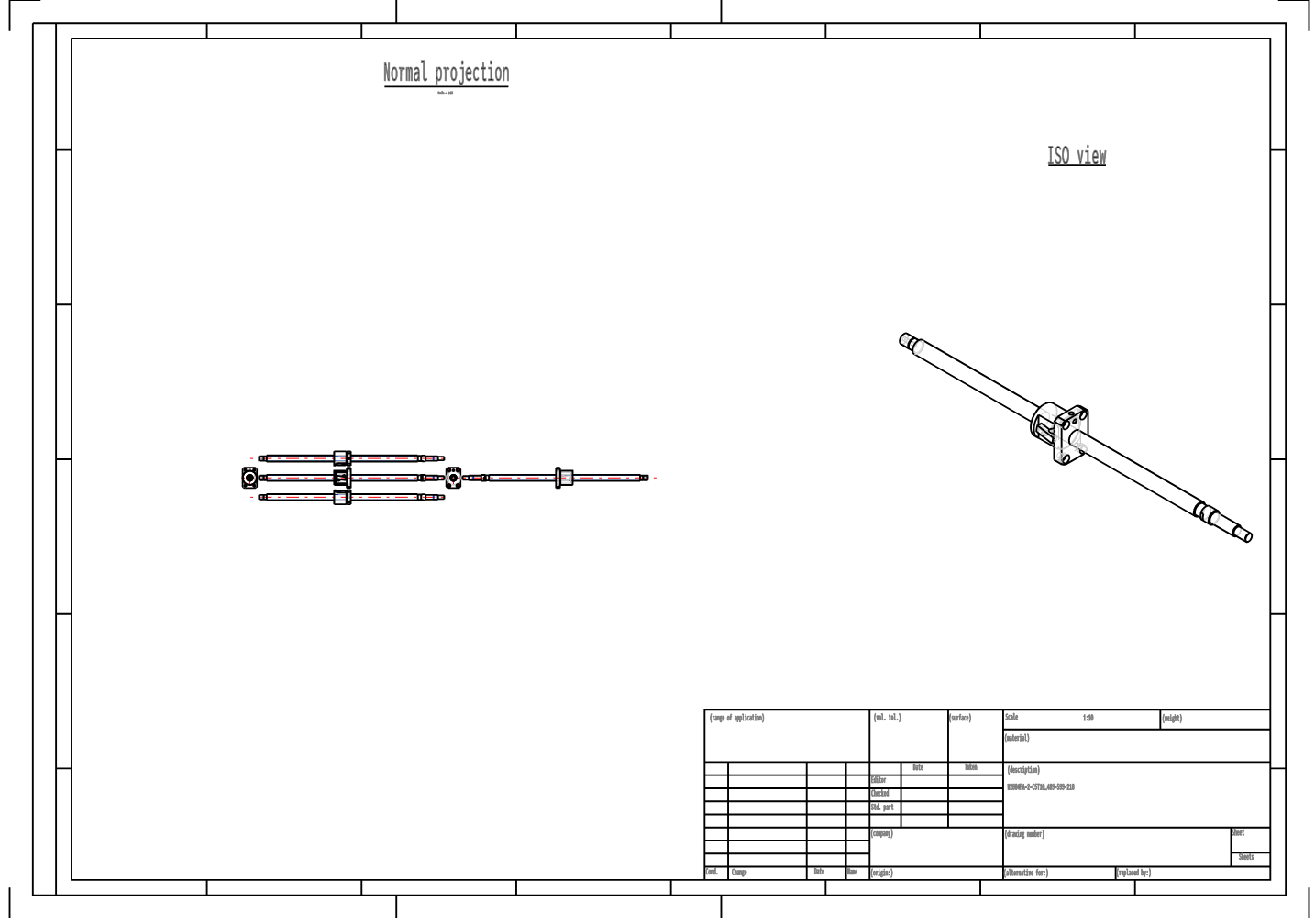

The W2004FA-2-C5T10 is an NSK FA type pre-finished ball screw, meaning that both ends of the screw shaft have been precision-machined to NSK standard support units at the factory and can be directly installed and used. The NSK ball screw W2004FA-2-C5T10 has a shaft diameter of 20 mm, a lead of 10 mm, an accuracy class of C5, and uses a tubular circulation structure, suitable for positioning and reciprocating motions in general automated equipment.
The NSK A-series pre-machined FA 20×10 ball screws feature the following characteristics:
Pre-machined shaft end: The mounting section and threads are pre-machined at the factory, allowing for direct assembly and use, reducing processing costs and errors.
Standard stock: Universal specifications, short lead time, and high cost-effectiveness.
Moderate precision: Commonly C5 grade, meeting general positioning and transmission needs.
High transmission efficiency: Ball circulation structure, low friction, and smooth operation.
Selectable rigidity and preload: Supports preload or micro-clearance configurations to adapt to different working conditions.
Easy maintenance: Supports lubrication replenishment, ensuring stable service life.
Wide application: Suitable for automated equipment, handling mechanisms, and small precision devices.
Typical application industries of NSK FA type shaft end finish control circulating ball screws:
I. Automation equipment industry
II. CNC machine tools and machining equipment
IV. Medical and laboratory equipment
V. Packaging and printing equipment
VI. Robotics and intelligent equipment

Item

Specification

Model No.

W2004FA-2-C5T10

Series

Shaft End Finished Product

Type

FA

Screw Shaft Diameter [mm]

20

Lead [mm]

10

Accuracy Grade

C5

Ball Diameter [mm]

3.969

Valid Number of Laps

2.5×1

Gap Symbol

Z

Circulation Method

Pipe Circulation

Nut Length [mm]

54

Maximum travel [mm]

429

Screw Length (Lt) [mm]

489

Screw Length (La) [mm]

514

Screw Length (L) [mm]

599

Weight [kg]

1.9

Rated Dynamic Load [N]

8350

Rated Static Load [N]

11000

Maximum Speed [Fixed-Free] (min-1)

3000

Drive Side Support Unit

WBK15-01A(Square)

WBK15-11(Round)

Reverse Drive Side

WBK15S-01(Square)
