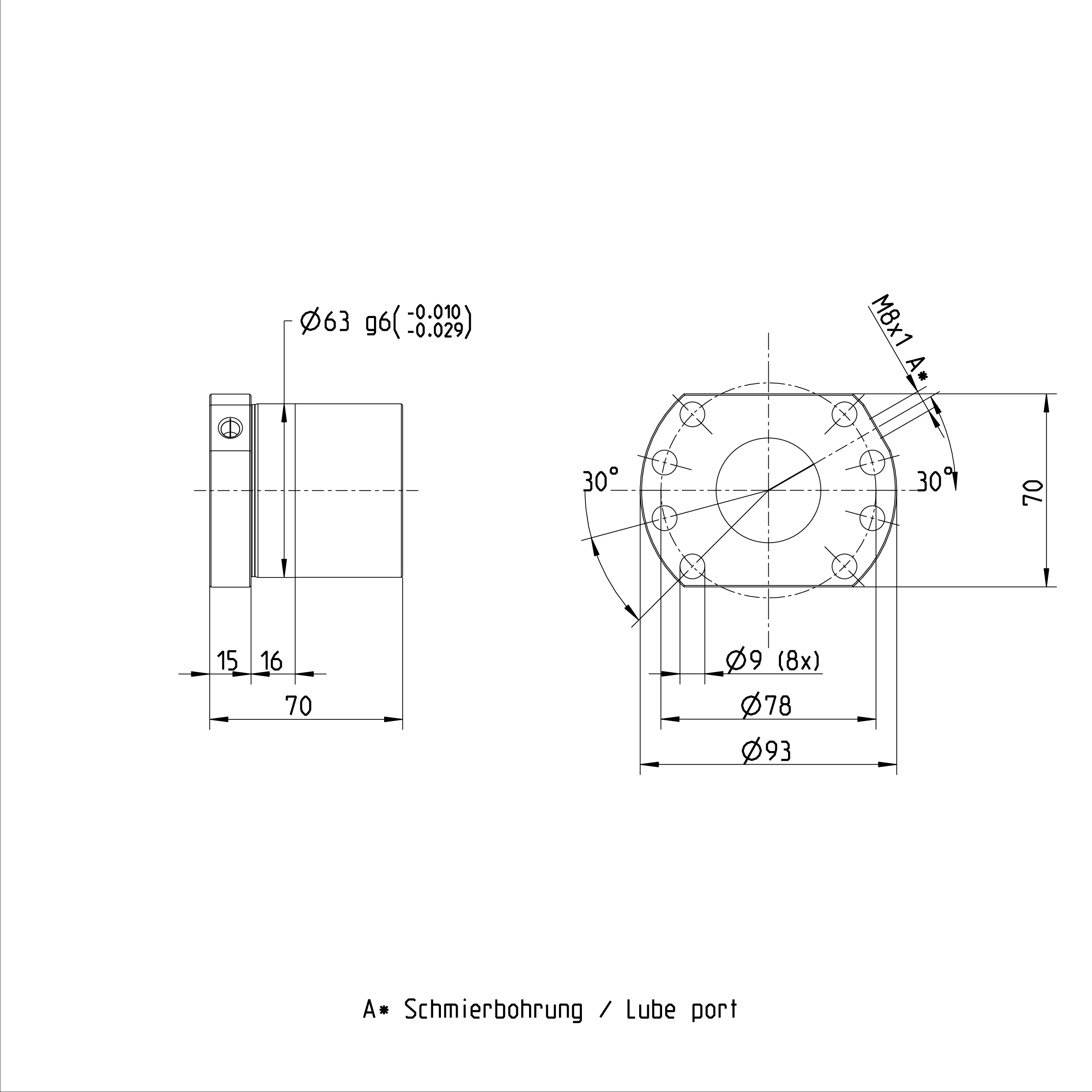

R150244083 Rexroth standard series nut, FEM-E-B flange type, single nut, standard seal, tolerance grades T5, T7, T9, preloading classes C0, C00, C1, C2, C3
Advantages of Rexroth FEM-E-B flange type single nut:
⦁ Smooth operation due to ball recirculation design
⦁ Especially quiet operation thanks to optimized ball lifting from the raceway
⦁ Preloaded single nut is also adjustable
⦁ High rated load due to large number of balls
⦁ Short nut length
⦁ No protruding parts, easy to install
⦁ Smooth outer surface
⦁ Effective dust protection seal
⦁ Wide product range, available in stock
Rexroth ball screw drive systems are successfully applied in various fields:
Cutting machine tools
- Forming machines
Automation and material handling
Woodworking
Electrical and electronics
Printing and paper
Injection molding machines
Food and packaging industry
Medical equipment
Textile industry
Others
Item |
Specification |
Part No. |
R150244083 |
Series |
Standard Series |
Nut Type |
FEM-E-B Flange Type Ball Nut |
Nominal Size [mm] |
40 × 10R × 6-4 |
Nominal Diameter [mm] |
40 |
Thread Direction |
Right-hand |
Lead [mm] |
10 |
Ball Diameter [mm] |
6 |
Number of Ball Circuits |
4 |
Nut Outer Diameter [mm] |
63 |
Flange Diameter [mm] |
93 |
Nut Length [mm] |
70 |
Mounting Holes |
BB1, 8 holes |
Weight [kg] |
1.19 |
Rated Dynamic Load [N] |
60000 |
Rated Static Load [N] |
86400 |
Max. Speed [m/min] |
38 |
