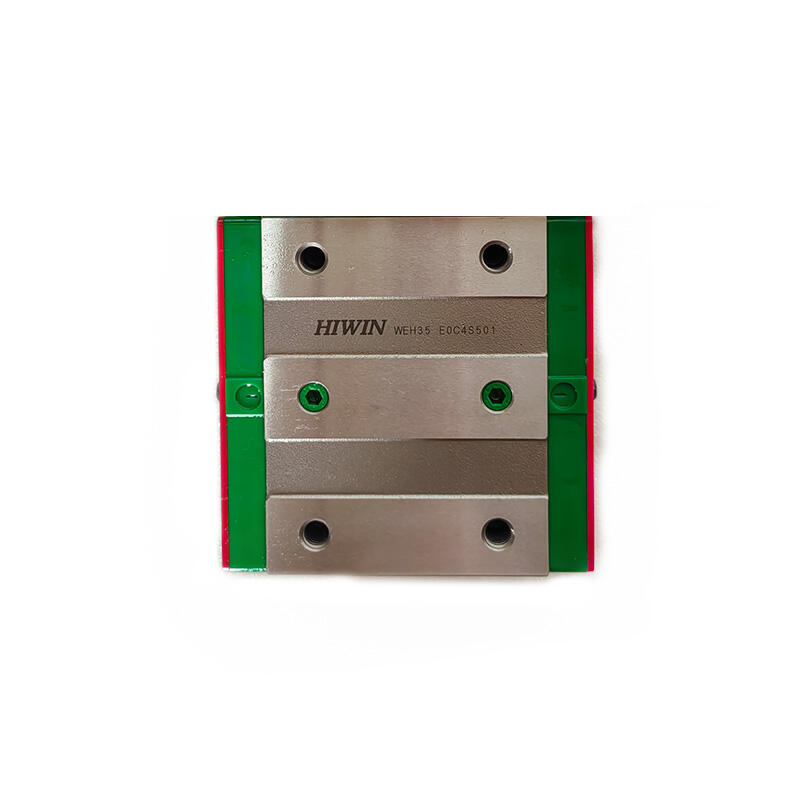

WE Series-Wide Ball Linear Guide Features of WE series linear guides: HIWIN WEH35CC Linear Guide
The WE series adopts a four-row steel ball load-bearing design. With a 45-degree contact angle design, it has four-direction equal load characteristics and an automatic self-aligning function, which can absorb assembly errors on the mounting surface and achieve high-precision requirements. At the same time, the line rail width is increased and the combined height is reduced to achieve ultra-high torsional impedance. When the environment requires space restrictions, or when there is a need for large torque, it can be used in a single-axis manner.
Product Information | |
Product Name |

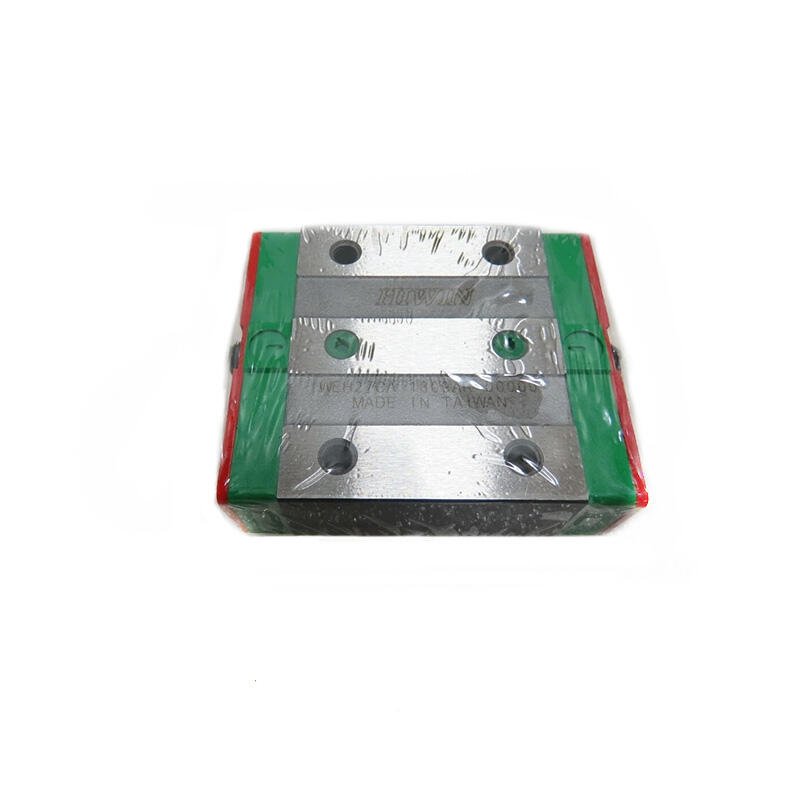

HIWIN WEH35CA Linear Guide |
Material |
steel |
Length |
Customized |
Model No. |

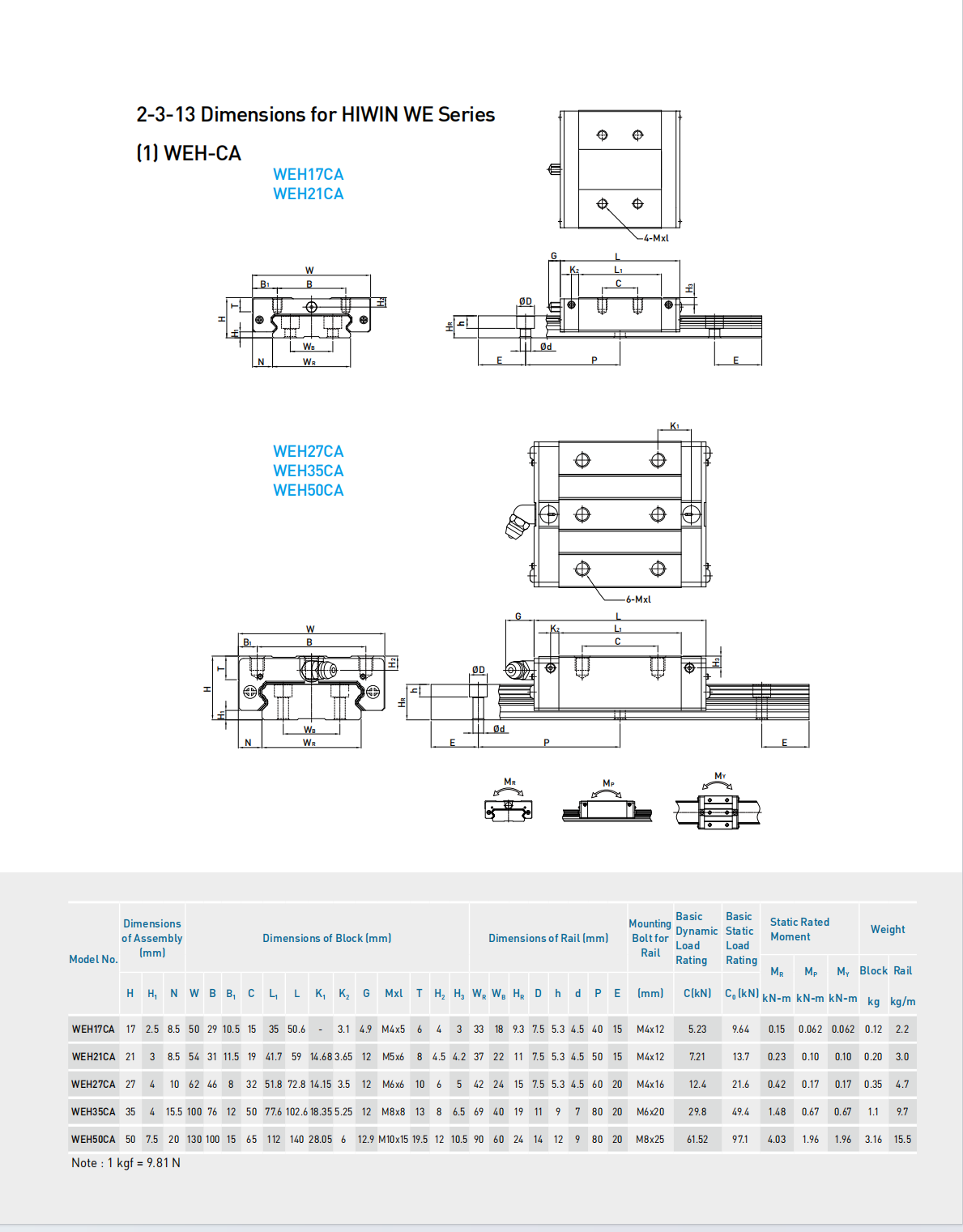

WEH17CA WEH21CA WEH27CA WEH35CA WEH50CA |
Our services |
According to drawings or samples for our customers to manufacture products. |
Product Package |
a. Plastic bag with box case or wooden case. We can provide shipping information to our customer at any time. |
Typical application scenarios |
Large machining centers (vertical, gantry) Heavy CNC milling machines, boring machines Precision grinders Large stamping equipment, presses Heavy-load handling and transfer units in automated production lines Precision heavy-load positioning platforms in semiconductor equipment |
