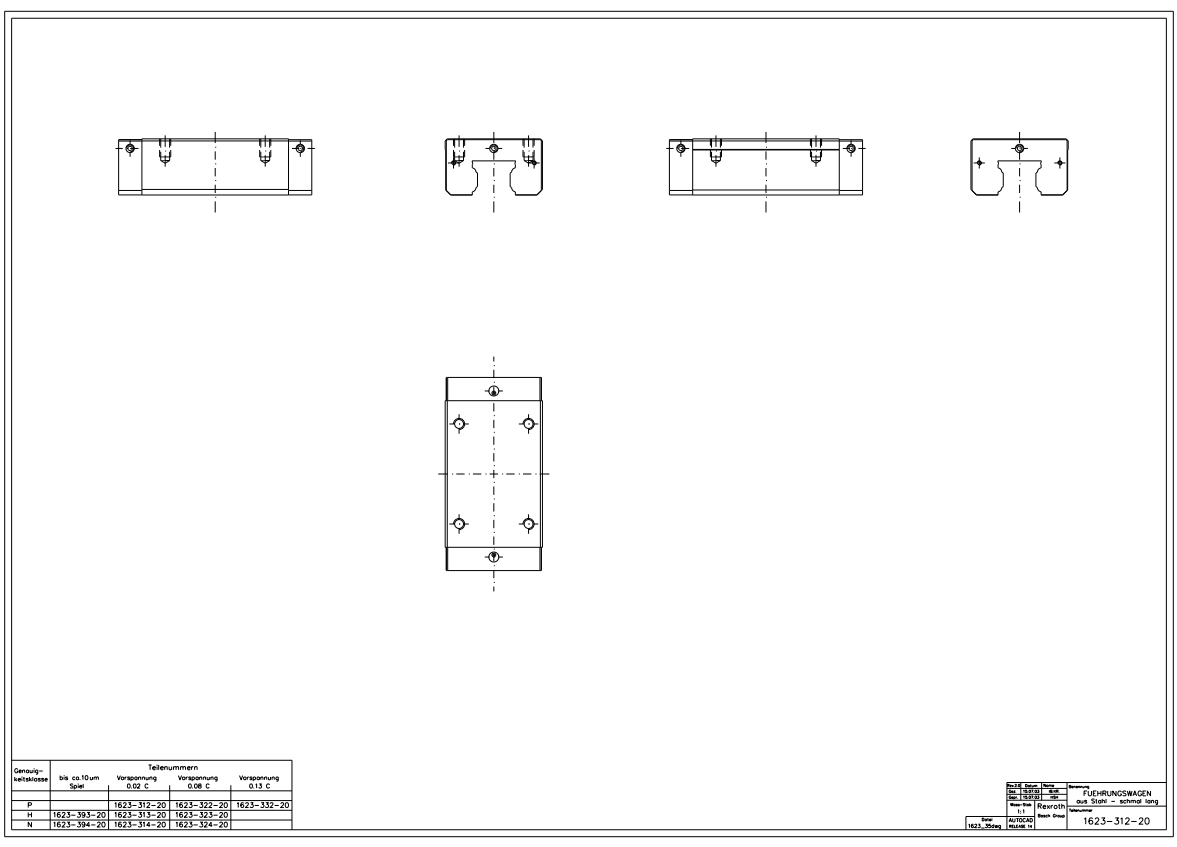

SLS Narrow Ball Slider R162331422 KWD-035-SLS-C1-N-1 Ball Block with Ball Chain

The Bosch Rexroth R162331422 high-rigidity ball slide is a 15-gauge SLS narrow-type extended ball slide made of carbon steel. It features high precision, low preload, and a ball chain design, achieving high rigidity, low friction, and heavy load capacity, making it suitable for high-precision, high-load linear motion applications.

Key features of the REXROTH SLS series ball slides:

① Narrow, extended standard height structure, requiring less lateral installation space; height is the same as conventional slides, eliminating the need for frame modifications, suitable for compact equipment layouts;

② Four-row ball layout, four-way equal rated load; extended slide body significantly improves anti-tipping and anti-torque capabilities, with excellent overall rigidity;

③ Multiple precision grades (N/P/H/SP/XP) are available; slides and guide rails of the same specifications are fully interchangeable, facilitating inventory and maintenance replacement;

④ Supports multiple preload levels (C0/C1/C2/C3), eliminating movement backlash, resulting in low frictional resistance, no crawling at low speeds, low noise, and suitability for high-speed applications;
