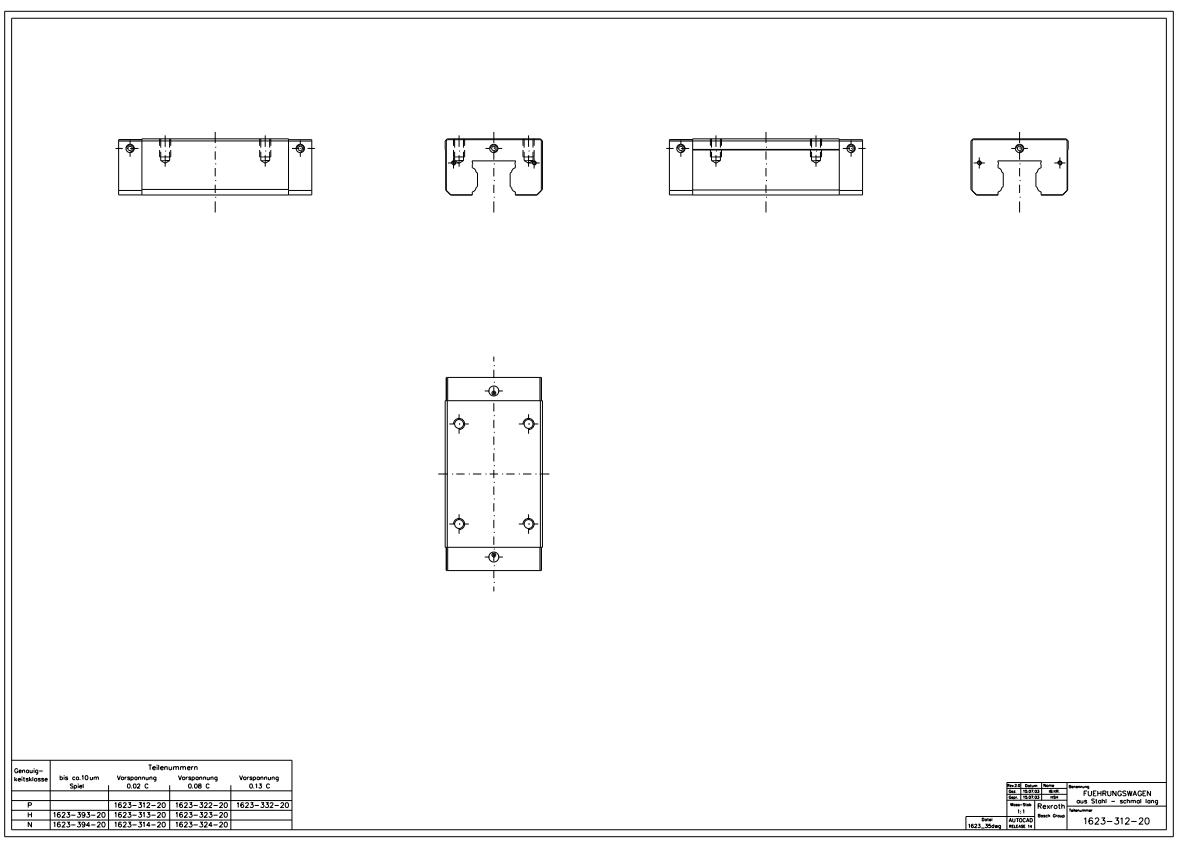

The REXROTH R162332320 is a 30mm steel standard ball slide, belonging to the SLS series. It features a narrow, elongated, and standard-height design. The R162332320 ball slide has an H-grade precision class and a C2 (average) preload class.
SLS narrow ball slide offer extremely high rigidity and are widely used in industrial automation equipment with stringent requirements for installation space, load capacity, and operational smoothness.
Key advantages of the R162332320 slide:
High Torque Capacity: The extended SLS design provides a larger contact area, significantly improving resistance to torsional torque.
High Interchangeability: Rexroth slides and guideways can be combined arbitrarily within the same precision class, making maintenance and replacement very convenient.
Multi-directional Load Capacity: It has the same rated load capacity in all four main load directions.
Item |
Specification |
Part Number |
R162332320 |
Ball Runner Type |
SLS |
Size |
35 |
Preload Class |
C2 |
Accuracy Class |
H |
Sealing |
SS – Standard Seal |
Ball Chain |
Without Ball Chain |
Guide Block Width [mm] |
70 |
Guide Block Length [mm] |
139.0 |
Guide Block Height [mm] |
40.40 |
Guide Block Height with Rail [mm] |
48 |
Mass [kg] |
1.70 |
Rated Dynamic Load [N] |
66700 |
Rated Static Load [N] |
116000 |
Rated Dynamic Torque Load [Nm] |
1440 |
Rated Static Torque Load [Nm] |
2500 |
