The Bosch Rexroth R162322222 ball slider is a narrow, long, standard-height ball slider with a carbon steel construction and a standard sealed ball chain design, achieving high rigidity, low friction, and heavy load capacity, making it suitable for high-precision, high-load linear motion applications.
KWD-025-SLS-C2-P-1 is the complete code for all parameters of the R162322222 slider. 25 represents the size specification, SLS indicates that the slider is a narrow and long slider structure (high rigidity, saving lateral space), C2 indicates average preload level, and P indicates precision accuracy level.
Item |
Specification |
Part Number |
R162322222 |
Ball Runner Type |
SLS |
Size |
25 |
Preload Class |
C2 |
Accuracy Class |
P |
Sealing |
SS – Standard Seal |
Ball Chain |
With Ball Chain |

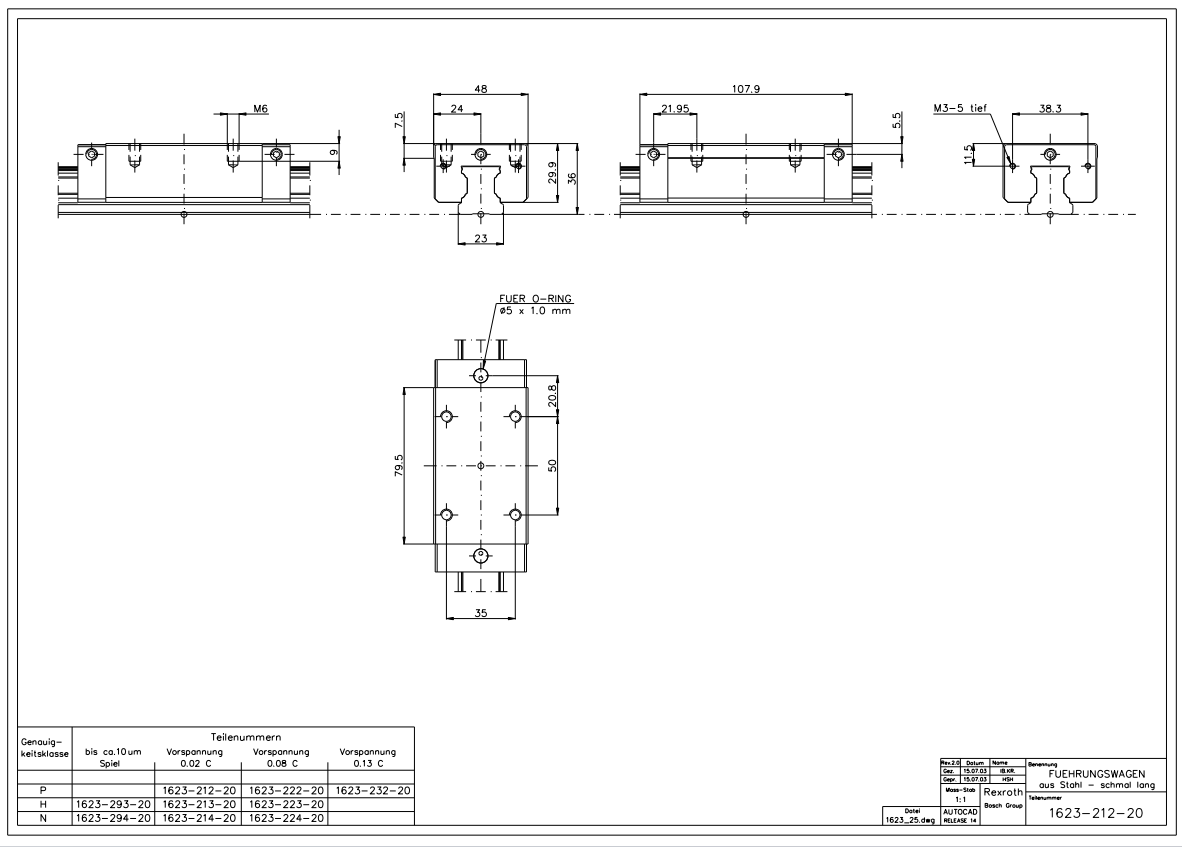

Guide Block Width [mm] |
48 |
Guide Block Length [mm] |
107.9 |
Guide Block Height [mm] |
29.90 |
Guide Block Height with Rail [mm] |
36 |
Mass [kg] |
0.65 |
Rated Dynamic Load [N] |
34800 |
Rated Static Load [N] |
47300 |
Rated Dynamic Torque Load [Nm] |
500 |
Rated Static Torque Load [Nm] |
670 |
