The Bosch Rexroth R162322220 is an SLS type (narrow, long, standard height) ball slide block belonging to the ball guide system category. This R1623 ball slide block is commonly used in industrial automation applications requiring space-saving design and the ability to withstand extremely high loads and torques.
KWD-025-SLS-C2-P-1 is the complete code for all parameters of the R162322220 slider. 25 represents the size specification, SLS indicates that the slider is a narrow and long slider structure (high rigidity, saving lateral space), C1 indicates average preload level, and P indicates accuracy precision.
Key Features of the R1623 SLS Ball Slide Block:
Narrow Design: Suitable for applications with limited lateral installation space.
Extended Length: Offers higher load capacity and torsional rigidity compared to standard length slide blocks.
Interchangeability: This slide block can be used with ball guideways of the same size and accuracy class.
Material: Constructed from carbon steel.
Lubrication: Preliminary lubrication and rust prevention treatment is performed at the factory, typically using Dynalub 510 grease.
Rexroth SLS narrow ball slides are among the most common slide types used in industrial automation and precision manufacturing due to their narrow lateral design and high-precision operation.
Typical Application Industries
1. Machine Tools and Precision Metalworking
2. Electronics and Semiconductor Manufacturing
3. Measurement and Laboratory Technology
4. Automated Production Lines and Robotics
5. Packaging Machinery
6. Medical Equipment

Item

Specification

Part Number

R162322220

Ball Runner Type

SLS

Size

25

Preload Class

C2

Accuracy Class

P

Sealing

SS – Standard Seal

Ball Chain

Without Ball Chain

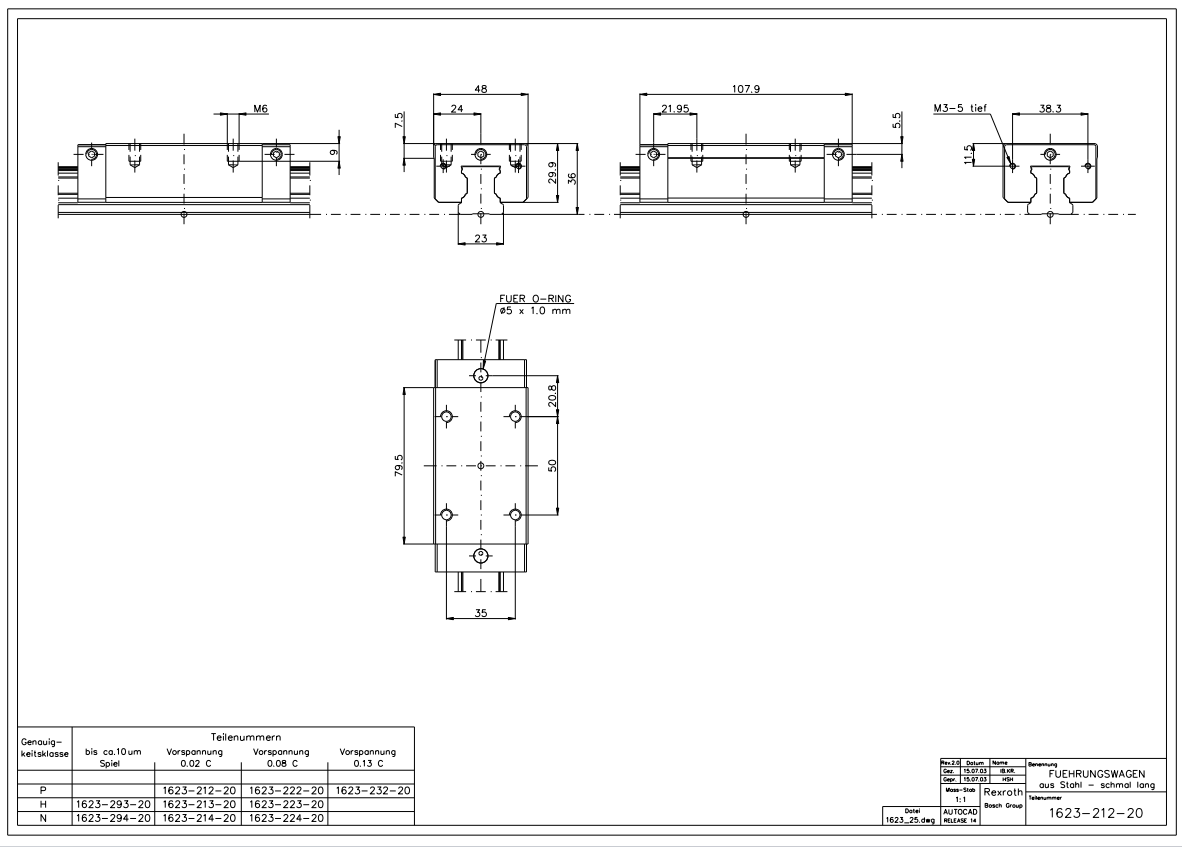

Guide Block Width [mm]

48

Guide Block Length [mm]

107.9

Guide Block Height [mm]

29.90

Guide Block Height with Rail [mm]

36

Mass [kg]

0.65

Rated Dynamic Load [N]

37300

Rated Static Load [N]

52500

Rated Dynamic Torque Load [Nm]

530

Rated Static Torque Load [Nm]

750
