REXROTH R162373820 KWD-030-SLS-C3-X-1 Carbon Steel Ball Runner Block
REXROTH R162373820 KWD-030-SLS-C3-X-1 Carbon Steel Ball Runner Block
REXROTH R162373820 KWD-030-SLS-C3-X-1 Carbon Steel Ball Runner Block
REXROTH R162373820 KWD-030-SLS-C3-X-1 Carbon Steel Ball Runner Block
REXROTH R162373820 KWD-030-SLS-C3-X-1 Carbon Steel Ball Runner Block
REXROTH R162373820 KWD-030-SLS-C3-X-1 Carbon Steel Ball Runner Block

REXROTH R162373820 KWD-030-SLS-C3-X-1 Carbon Steel Ball Runner Block

Inquiry Contact Us
  • Description
1

+86-13636560152
[email protected]
Inquiry
The R162373820 ball slider is a high-precision, high-rigidity ball slider from Bosch Rexroth's SLS series, model code KWD-030-FLS-C3-X-1. It is commonly used in linear motion systems with stringent requirements for positioning accuracy and load capacity. The narrow, long ball slider R162373820 features a high preload (C3) and extra precision (XP) design, with a CS steel body, providing high rigidity and high load capacity.
Key features of Rexroth SLS steel sliders:
① Utilizes a four-row ball bearing circulation structure, providing equal load capacity in four directions. It can simultaneously withstand radial, reverse, and lateral loads, offering excellent overall rigidity and load-bearing performance.
② The narrow, elongated design of the SLS slider effectively saves lateral installation space while ensuring high load capacity, making it suitable for compact equipment layouts.
③ The rolling friction structure ensures smooth operation and a low coefficient of friction, supporting high-speed (up to approximately 5 m/s) and high-acceleration conditions.
④ Ball bearing sliders can be equipped with a ball chain design, significantly reducing noise and wear, and improving service life and stability.
⑤ Factory pre-lubricated and supports long-term lubrication solutions, requiring minimal maintenance under optimal operating conditions.
⑥ Offers multiple preload and precision grades to flexibly match different application requirements in terms of rigidity, precision, and lifespan.

Item

Specification

Part Number

R162373820

Ball Runner Type

SLS

Size

30

Preload Class

C3

Accuracy Class

XP

Sealing

SS – Standard Seal

Ball Chain

Without Ball Chain

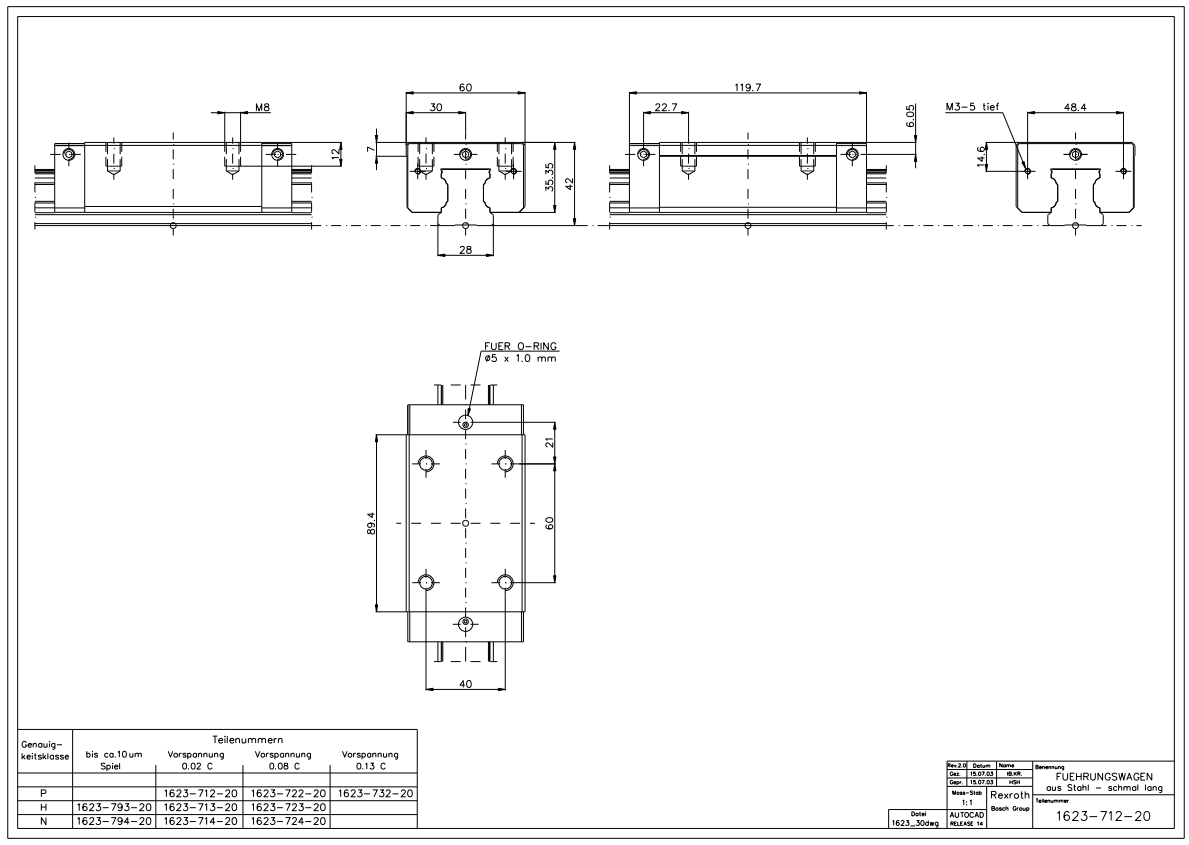

Guide Block Width [mm]

60

Guide Block Length [mm]

119.7

Guide Block Height [mm]

35.35

Guide Block Height with Rail [mm]

42

Mass [kg]

1.10

Rated Dynamic Load [N]

46000

Rated Static Load [N]

66900

Rated Dynamic Torque Load [Nm]

800

Rated Static Torque Load [Nm]

1160
