The Bosch Rexroth R162349320 is a 35mm SLS series high-rigidity ball slide, featuring an H-grade high precision and a C0 preload-free design, offering enhanced rigidity, vibration resistance, and positioning stability.
The R162349320 ball slide, with its high rigidity, heavy-duty performance, and high precision, is widely used in high-end CNC machine tools, precision automation, semiconductor equipment, and high-load industrial motion systems.
The core features of the Rexroth SLS R162349320 ultra-thin, long, standard-height ball slide are as follows:
Compact Design: Ultra-thin, long structure, highly adaptable to scenarios with limited lateral installation space.
Omnidirectional Equal Load: Consistent load capacity in all four main load directions, excellent high torque capacity and torsional rigidity.
High Precision and Interchangeability: High precision grade; slides and guides within the same precision grade can be freely combined, offering unlimited interchangeability.
Low Noise and Smooth Operation: Low operating noise, excellent rolling characteristics, built-in standard seals, pre-filled lithium-based grease, and easy maintenance.
Item |
Specification |
Part Number |
R162349320 |
Ball Runner Type |
SLS |
Size |
45 |
Preload Class |
C0 |
Accuracy Class |
H |
Sealing |
SS – Standard Seal |
Ball Chain |
Without Ball Chain |

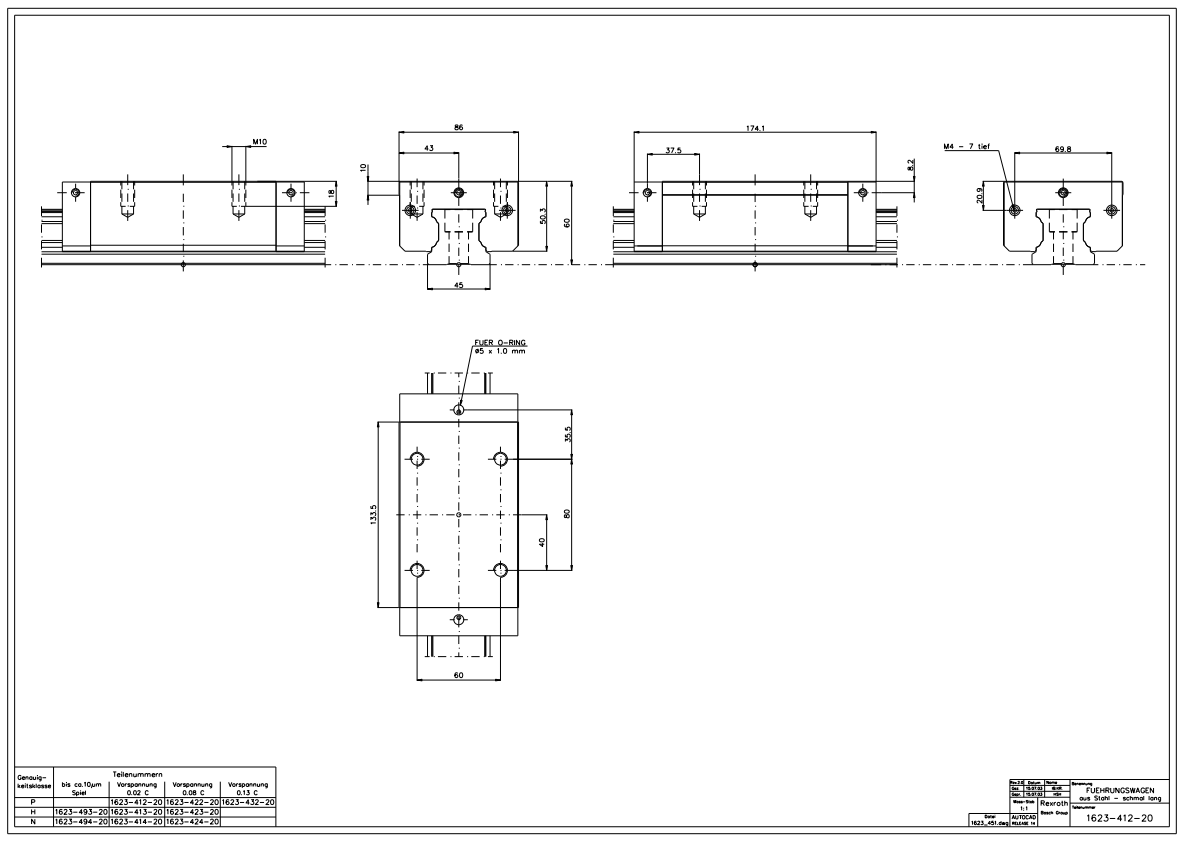

Guide Block Width [mm] |
86 |
Guide Block Length [mm] |
174.1 |
Guide Block Height [mm] |
50.30 |
Guide Block Height with Rail [mm] |
60 |
Mass [kg] |
3.20 |
Rated Dynamic Load [N] |
111000 |
Rated Static Load [N] |
190000 |
Rated Dynamic Torque Load [Nm] |
3010 |
Rated Static Torque Load [Nm] |
5120 |
