REXROTH FLS R165341322 Ball Block High-precision Ball Bearing Slider BSHP
REXROTH FLS R165341322 Ball Block High-precision Ball Bearing Slider BSHP
REXROTH FLS R165341322 Ball Block High-precision Ball Bearing Slider BSHP
REXROTH FLS R165341322 Ball Block High-precision Ball Bearing Slider BSHP

REXROTH FLS R165341322 Ball Block High-precision Ball Bearing Slider BSHP

Inquiry Contact Us
  • Description
1

+86-13636560152
[email protected]
Inquiry

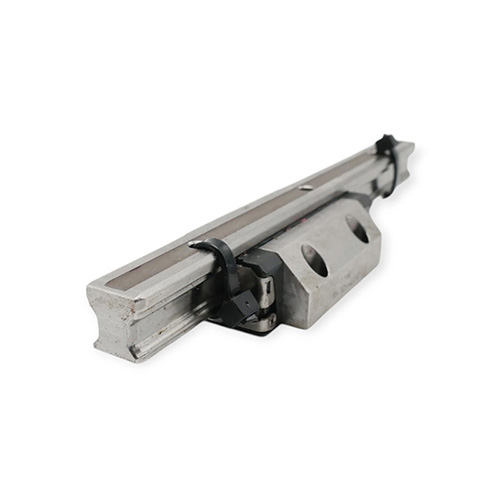

The Bosch Rexroth R165341322 ball slide is a 45 flange-type extended high-precision ball slide (FLS). R165341322 FLS ball block features a carbon steel structure, H precision, C1 preload, and a ball chain design, achieving high rigidity, low friction, and heavy load capacity, making it suitable for high-precision, high-load linear motion applications.
Key Features and Performance of FLS Ball Slider:
  • High Load Capacity and High Rigidity: The extended design provides a larger contact area compared to standard length sliders (such as FNS), significantly improving the ability to withstand high loads and moments.
  • Flexible Installation: As a flange-type slider, it supports bolt mounting from the top or bottom, suitable for various mechanical structures.
  • Applications: Possesses extremely high load-bearing capacity, suitable for applications with the most demanding stiffness requirements.
  • Smooth operation: Under external loads, it can effectively reduce friction fluctuations and provide excellent running smoothness.
Rexroth ultra-high load capacity ball slides FLS are primarily used in the following industries:
  • Machine tools
  • Industrial automation and robotics
  • Precision packaging and printing machinery
  • Assembly and conveying technology
  • Electronics and semiconductor equipment

Highlights of Rexroth REXROTH ball slides:
  • Interchangeability with ball guide systems
  • Optional integrated wear-free sensing measurement system
  • Various accessories
  • Top mounts can be bolted on from the top and bottom of the ball slide
  • Increased stiffness under lifting and lateral loads by additional bolts secured in two holes in the center of the ball slide
  • All accessories are equipped with end-face fastening threads
  • High stiffness in all load directions - suitable for applications with only one slide per track
  • Integrated fully sealed
  • High torque load capacity
  • Optimized inlet geometry and a large number of balls minimize changes in elastic deflection
  • Smooth, noiseless operation due to optimized ball and ball chain return and guidance design
  • Various preload levels

Item

Specification

Part Number

R165341322

Ball Runner Type

FLS

Size

45

Preload Class

C1

Accuracy Class

H

Sealing

SS – Standard Seal

Ball Chain

With Ball Chain

Guide Block Width [mm]

120

Guide Block Length [mm]

174.1

Guide Block Height [mm]

50.30

Guide Block Height with Rail [mm]

60

Mass [kg]

4.30

Rated Dynamic Load [N]

106000

Rated Static Load [N]

177000

Rated Dynamic Torque Load [Nm]

2870

Rated Static Torque Load [Nm]

4770
