REXROTH FLS Ball Runner Block R165341422 Flange Type Long Series
REXROTH FLS Ball Runner Block R165341422 Flange Type Long Series
REXROTH FLS Ball Runner Block R165341422 Flange Type Long Series
REXROTH FLS Ball Runner Block R165341422 Flange Type Long Series

REXROTH FLS Ball Runner Block R165341422 Flange Type Long Series

Inquiry Contact Us
  • Description
1

+86-13636560152
[email protected]
Inquiry

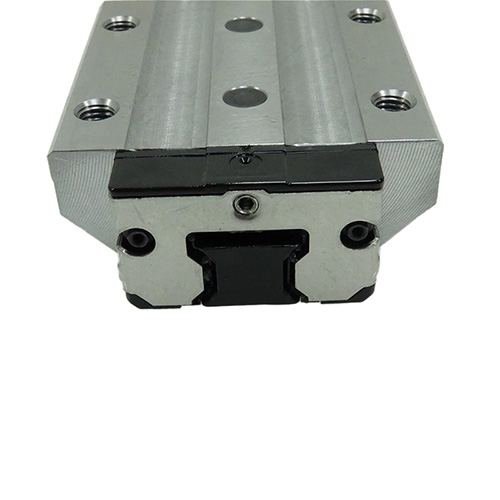

The Bosch Rexroth R165341422 is a high-precision carbon steel ball slide block (linear slide) with a long flange design (FLS). It is part of the High Precision Ball Guide System (BSHP) series. R165341422 35 specification FLS ball slide, C3 height preload, UP precision class.
FLS is a specific specification code for slide blocks in REXROTH Linear Motion Technology systems, representing Flange, Long, and Standard height. FLS slide blocks offer extremely high rigidity and load-bearing capacity, suitable for applications with the most demanding rigidity requirements.
REXROTH FLS long ball slides are widely used in industrial applications where stability is paramount:
High Rigidity: Their extended design effectively reduces frictional fluctuations during operation, providing excellent smoothness.
Heavy Load Capacity: FLS ball slides are suitable for CNC machine tools, large automated assembly lines, robots, and heavy material handling systems.
High Compatibility: The slides and guideways are interchangeable, allowing users to freely combine different specifications of slides and guideways within the same accuracy class, greatly facilitating logistics and maintenance.
Rexroth ultra-high load capacity ball slides FLS are primarily used in the following industries:
Machine tools
Industrial automation and robotics
Precision packaging and printing machinery
Assembly and conveying technology
Electronics and semiconductor equipment

Item

Specification

Part Number

R165341422

Ball Runner Type

FLS

Size

45

Preload Class

C1

Accuracy Class

N

Sealing

SS – Standard Seal

Ball Chain

With Ball Chain

Guide Block Width [mm]

120

Guide Block Length [mm]

174.1

Guide Block Height [mm]

50.30

Guide Block Height with Rail [mm]

60

Mass [kg]

4.30

Rated Dynamic Load [N]

106000

Rated Static Load [N]

177000

Rated Dynamic Torque Load [Nm]

2870

Rated Static Torque Load [Nm]

4770
