The Bosch Rexroth R162373822 ball slide is a high-precision linear guide assembly belonging to the SLS series. SLS ball slides offer extremely high rigidity and are widely used in industrial automation equipment with stringent requirements for installation space, load capacity, and smooth operation.
Key Advantages of the R162373822 Slide:
High Torque Capacity: The extended SLS design provides a larger contact area, significantly improving resistance to torsional torque.
Low Noise Operation: Equipped with a ball chain (end code 22), the balls do not collide during circulation, resulting in quieter and smoother operation.
High Interchangeability: Rexroth slides and guides can be combined arbitrarily within the same precision class, making maintenance and replacement very convenient.
Multi-directional Load Capacity: It has the same rated load capacity in all four main load directions.
Item |
Specification |
Part Number |
R162373822 |
Ball Runner Type |
SLS |
Size |
30 |
Preload Class |
C3 |
Accuracy Class |
XP |
Sealing |
SS – Standard Seal |
Ball Chain |
With Ball Chain |

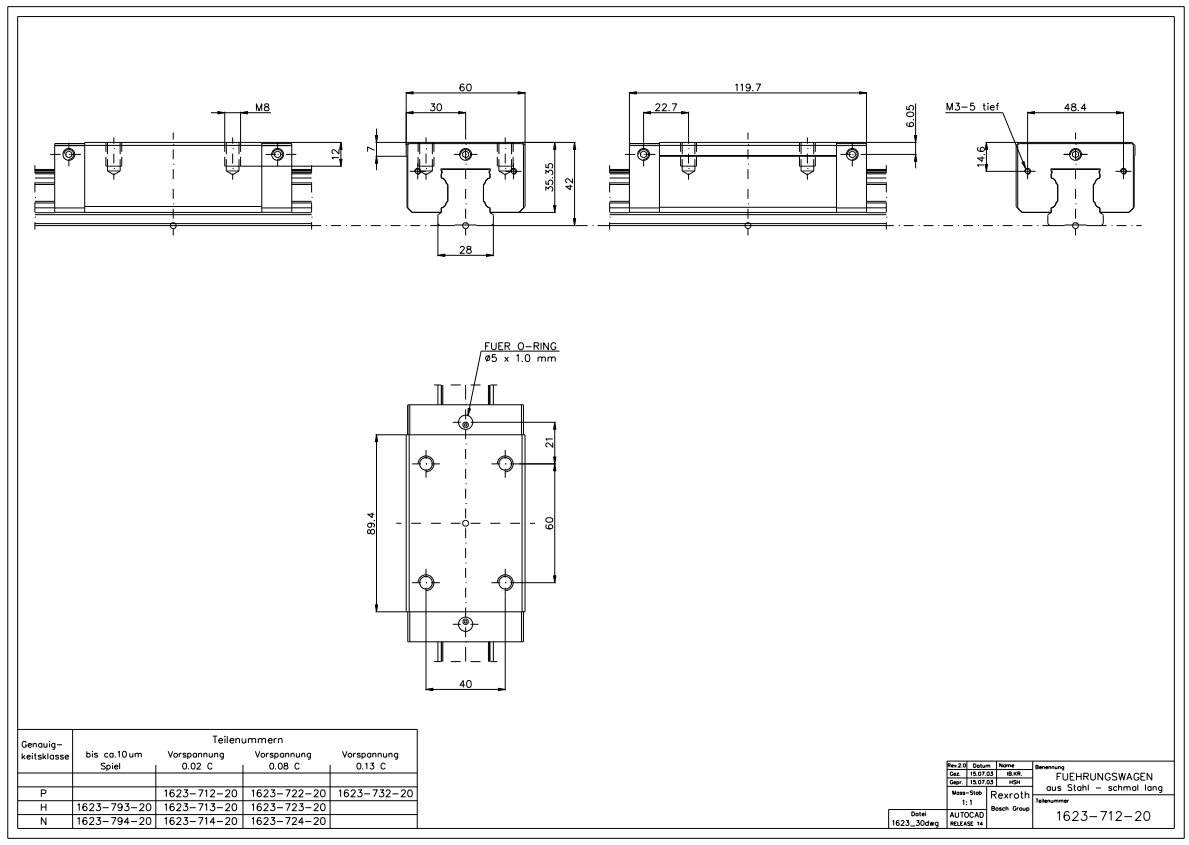

Guide Block Width [mm] |
60 |
Guide Block Length [mm] |
119.7 |
Guide Block Height [mm] |
35.35 |
Guide Block Height with Rail [mm] |
42 |
Mass [kg] |
1.10 |
Rated Dynamic Load [N] |
43800 |
Rated Static Load [N] |
62200 |
Rated Dynamic Torque Load [Nm] |
760 |
Rated Static Torque Load [Nm] |
1080 |
