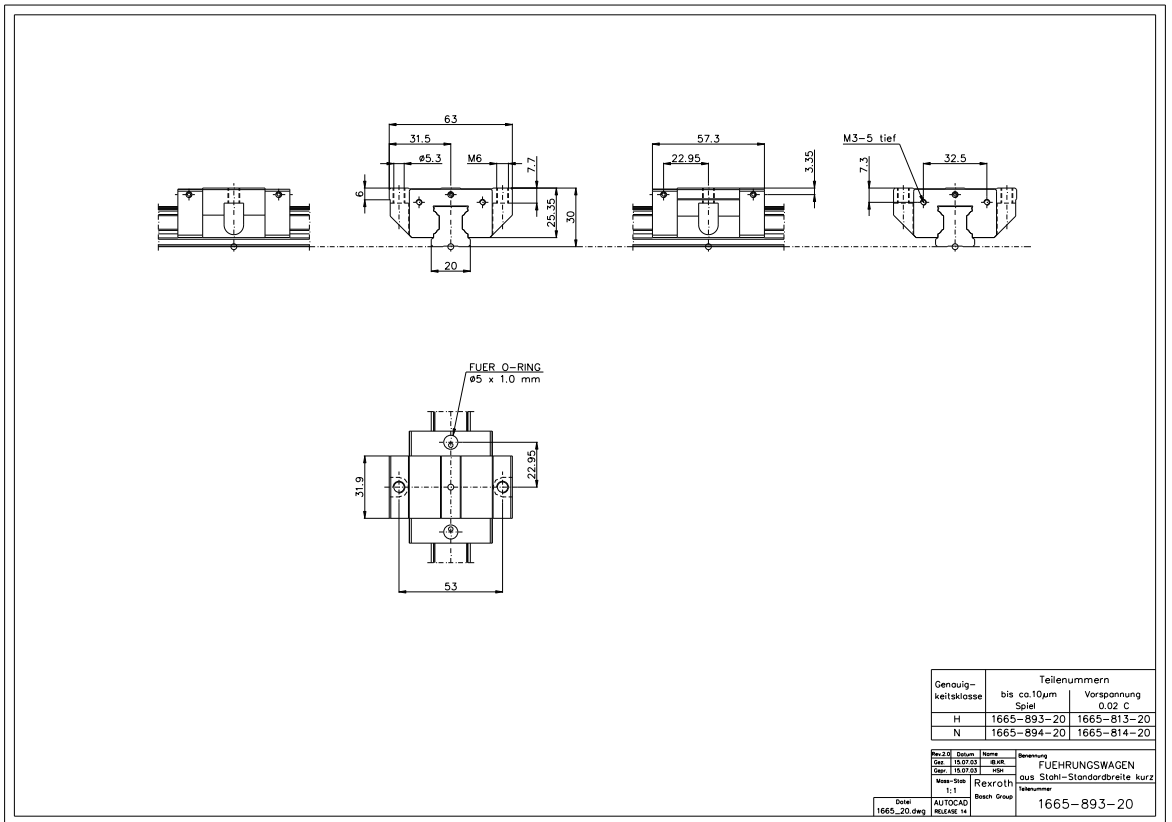

R166581422 Ball Runner Block Carbon Steel KWD-020-FKS-C1-N-1

Rexroth R166581422 is a high-performance, high-precision ball slide (BSHP series), officially designated as KWD-020-FKS-C1-N-1. The R166581422 is a short-flange, standard-height linear guide ball slide, primarily used in high-precision automated and machine tool equipment where longitudinal installation space is limited.

Key features of the R166581422 (FKS) ball slide block:

Flange-short (FKS) construction: The slide block has a flange, providing good mounting rigidity and a small footprint, suitable for compact equipment designs.

Four-row ball circulation design: Utilizing a four-row ball contact design, it can achieve medium load capacity in radial, reverse radial, and lateral directions.

High-precision guidance: Smooth operation with high positioning accuracy and repeatability.

Equipped with sealing and lubrication system: Standard end face seal and optimized internal lubrication channels effectively prevent contaminant ingress and extend service life

Ball chain design: Low noise and smooth movement, suitable for automated equipment and precision machinery applications.

Common Applications

R166581422 short sliders are frequently used in precision linear transmission mechanisms requiring high frequency, lightweight operation, and high accuracy. Common applications include:

3D printers and small CNC engraving machines

Electronic semiconductor assembly and placement machines

Industrial robots and automated manipulators

Medical testing and laboratory analytical instruments and equipment
