R166581322 C1 Low Preload Ball Slider KWD-020-FKS-C1-N-1 Ball Runner Block

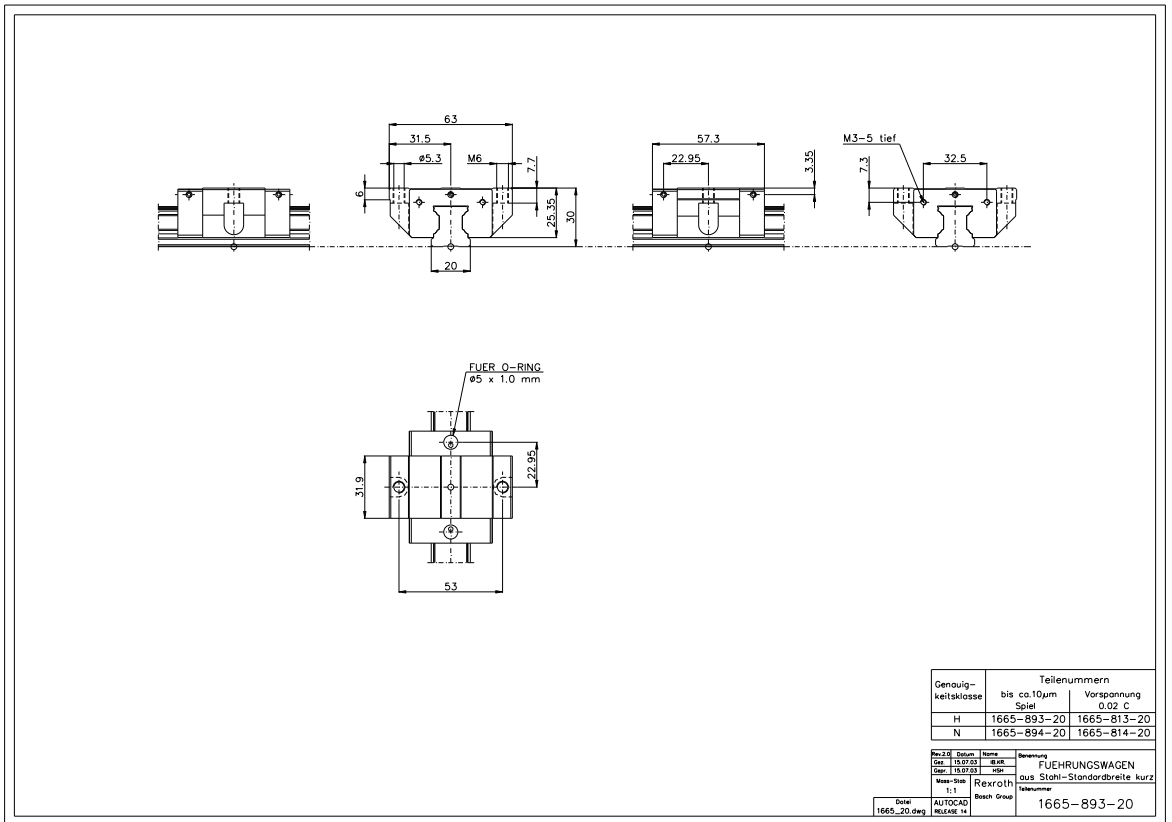

The R166581322 ball slide is an FKS type, size 20 (width 63mm, length 57.3mm, height 30mm), featuring a low preload (C1) and high precision design, suitable for smooth and accurate linear guidance.

The Rexroth FKS type ball slide is a flange-type, short-body, standard-height linear guide slide. Its key feature is its ability to withstand high torque loads even in situations with limited lateral space, and the same rated load in all four main load directions.

Key Advantages and Features of the R166581322 High-Precision Ball Slider:

Compact Structure: The short design is particularly suitable for use in areas of machinery where longitudinal (axial) space is limited and long sliders cannot be accommodated.

Smooth and Low-Noise Operation: Rexroth's optimized ball circulation inlet geometry and ball chain design significantly reduce friction fluctuations and noise, resulting in extremely smooth operation.

High Interchangeability: This slider supports Rexroth's universal interchangeability design. Within the same precision class, the slider can be replaced individually at any time and can be combined with any Rexroth standard ball guide of the same specification, greatly simplifying warehousing and after-sales maintenance.

Main Application Areas of FKS Type Ball Slider R166581322

Automation Equipment

CNC Machine Tools

Electronic and Semiconductor Equipment

Testing and Measuring Equipment

Medical and Laboratory Equipment

Precision Positioning Systems
