REXROTH FLS long ball slides are widely used in industrial applications where stability is paramount:
High Rigidity: Their extended design effectively reduces frictional fluctuations during operation, providing excellent smoothness.
Heavy Load Capacity: FLS ball slides are suitable for CNC machine tools, large automated assembly lines, robots, and heavy material handling systems.
High Compatibility: The slides and guideways are interchangeable, allowing users to freely combine different specifications of slides and guideways within the same accuracy class, greatly facilitating logistics and maintenance.
Item |
Specification |

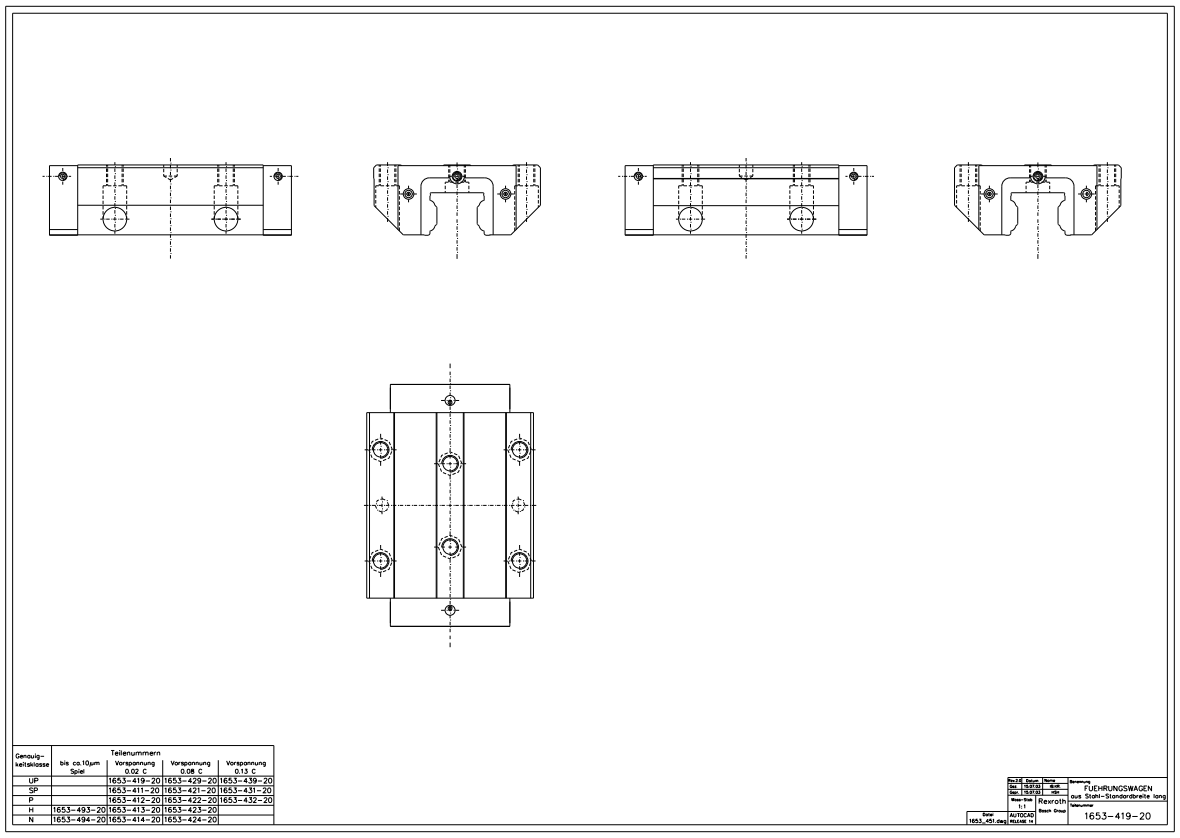

Part Number |
R165349420 |
Ball Runner Type |
FLS |
Size |
45 |
Preload Class |
C0 |
Accuracy Class |
N |
Sealing |
SS – Standard Seal |
Ball Chain |
Without Ball Chain |
Guide Block Width [mm] |
120 |
Guide Block Length [mm] |
174.1 |
Guide Block Height [mm] |
50.30 |
Guide Block Height with Rail [mm] |
60 |
Mass [kg] |
4.30 |
Rated Dynamic Load [N] |
111000 |
Rated Static Load [N] |
190000 |
Rated Dynamic Torque Load [Nm] |
3010 |
Rated Static Torque Load [Nm] |
5120 |
