R165341920 Rexroth R1653 FLS Slider KWD-045-FLS-C1-UP-1
R165341920 Rexroth R1653 FLS Slider KWD-045-FLS-C1-UP-1
R165341920 Rexroth R1653 FLS Slider KWD-045-FLS-C1-UP-1
R165341920 Rexroth R1653 FLS Slider KWD-045-FLS-C1-UP-1

R165341920 Rexroth R1653 FLS Slider KWD-045-FLS-C1-UP-1

Inquiry Contact Us
  • Description
1

+86-13636560152
[email protected]
Inquiry

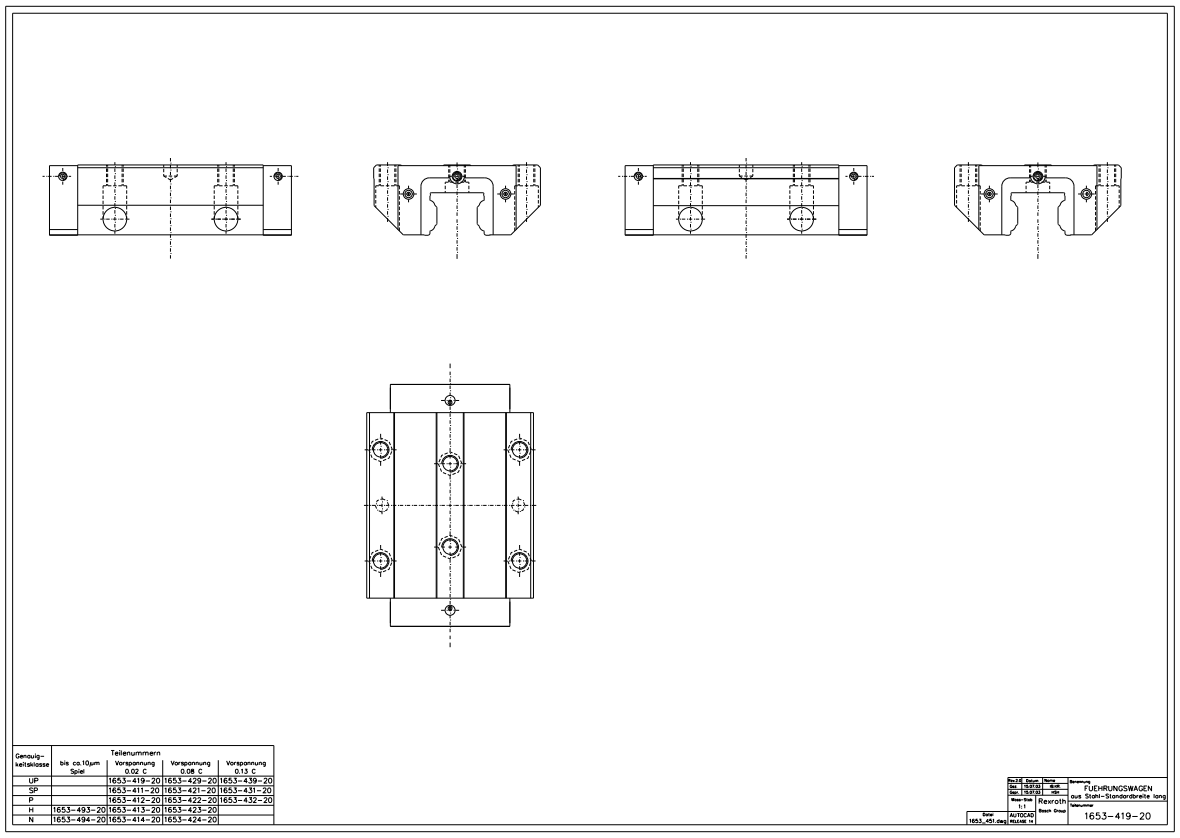

FLS type ball slider, ultra-high load capacity, R165341920 ball slider specification 45, CS steel slider, UP-level precision, C1-level preload, standard seal, ball chain not included.

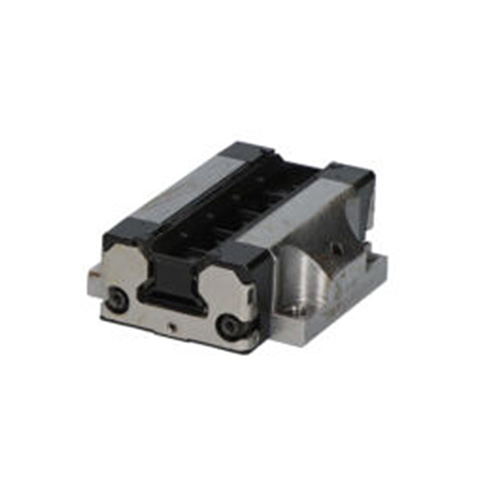

Bosch Rexroth's FLS steel ball slider is a flange-type, extended, standard height linear motion component. It is designed for operating environments with extremely high rigidity and load-bearing capacity requirements, offering excellent load-bearing capacity.
Key Features and Performance of FLS Ball Slider:
High Load Capacity and High Rigidity: The extended design provides a larger contact area compared to standard length sliders (such as FNS), significantly improving the ability to withstand high loads and moments.
Flexible Installation: As a flange-type slider, it supports bolt mounting from the top or bottom, suitable for various mechanical structures.
Applications: Possesses extremely high load-bearing capacity, suitable for applications with the most demanding stiffness requirements.
Smooth operation: Under external loads, it can effectively reduce friction fluctuations and provide excellent running smoothness.
Rexroth ultra-high load capacity ball slides FLS are primarily used in the following industries:
Machine tools
Industrial automation and robotics
Precision packaging and printing machinery
Assembly and conveying technology
Electronics and semiconductor equipment

Item

Specification

Part Number

R165341920

Ball Runner Type

FLS

Size

45

Preload Class

C1

Accuracy Class

UP

Sealing

SS – Standard Seal

Ball Chain

Without Ball Chain

Guide Block Width [mm]

120

Guide Block Length [mm]

174.1

Guide Block Height [mm]

50.30

Guide Block Height with Rail [mm]

60

Mass [kg]

4.30

Rated Dynamic Load [N]

111000

Rated Static Load [N]

190000

Rated Dynamic Torque Load [Nm]

3010

Rated Static Torque Load [Nm]

5120
