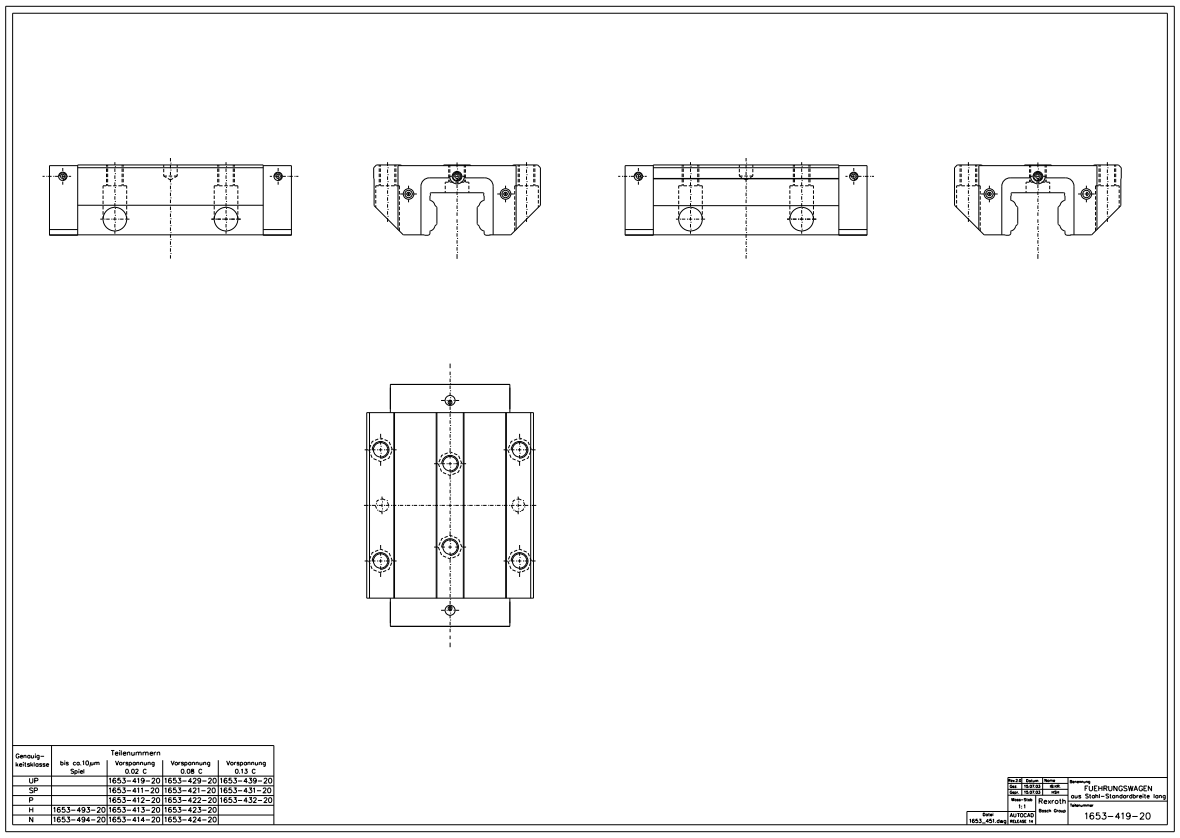

The R165341820 ball slide is a high-precision, high-rigidity ball slide from Bosch Rexroth's FLS series, model code KWD-045-FLS-C1-X-1. It is commonly used in linear motion systems with stringent requirements for positioning accuracy and load capacity. The 45 size flange-type long ball slide R165341820 features a slight preload (C1) and high-precision (XP) design, with a CS steel body, providing high rigidity and high load capacity.
Item |
Specification |
Part Number |
R165341820 |
Ball Runner Type |
FLS |
Size |
45 |
Preload Class |
C1 |
Accuracy Class |
XP |
Sealing |
SS – Standard Seal |
Ball Chain |
Without Ball Chain |
Guide Block Width [mm] |
120 |
Guide Block Length [mm] |
174.1 |
Guide Block Height [mm] |
50.30 |
Guide Block Height with Rail [mm] |
60 |
Mass [kg] |
4.30 |
Rated Dynamic Load [N] |
111000 |
Rated Static Load [N] |
190000 |
Rated Dynamic Torque Load [Nm] |
3010 |
Rated Static Torque Load [Nm] |
5120 |
