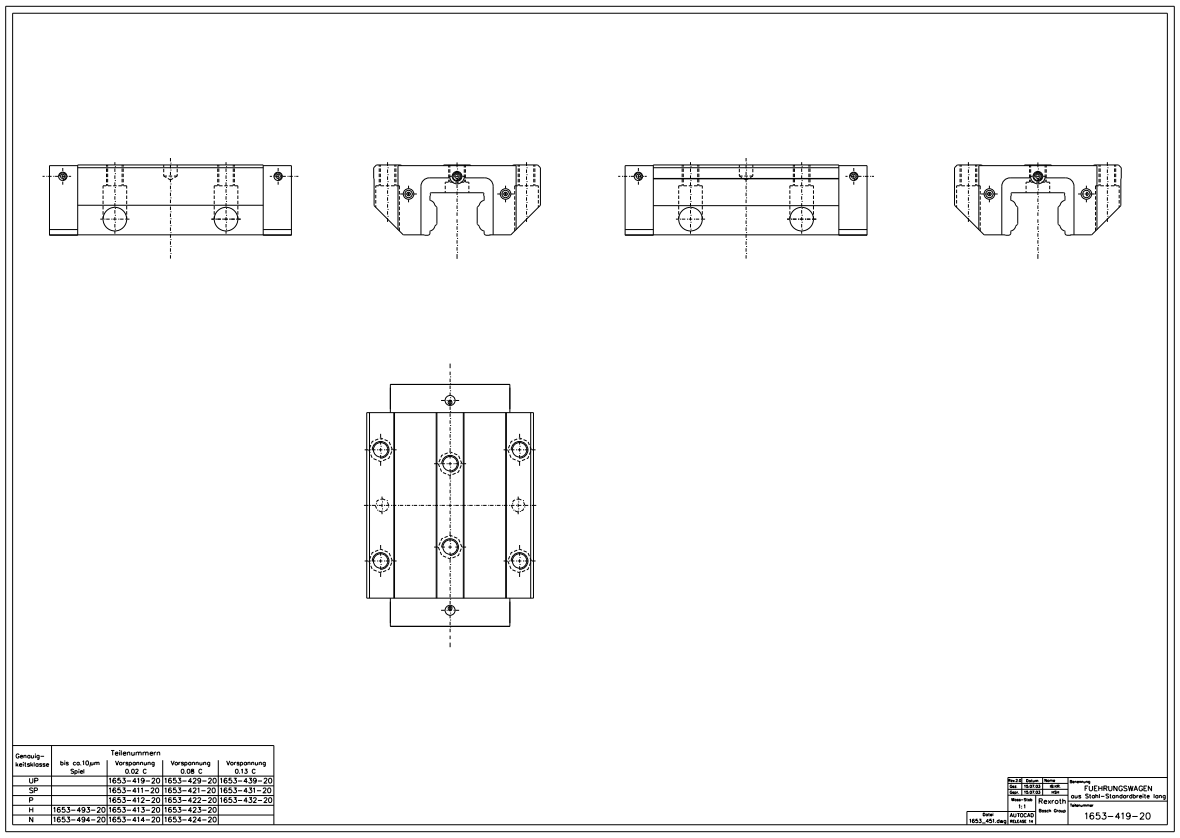

R165341222 FLS Extended Slider REXROTH 45 Size Ball Runner Block

The R165341222 ball slide is a high-precision, high-rigidity ball slide from Bosch Rexroth's FLS series, model code KWD-045-FLS-C1-P-1. It is commonly used in linear motion systems with stringent requirements for positioning accuracy and load capacity. The 45 size flange-type long ball slide R165341222 features a preload (C1) and precision (P) design, with a CS steel body, providing high rigidity and high load capacity.

The main features of the FLS flange-type extended ball bearing slider can be summarized as follows:

1. High rigidity and high load capacity: The extended structure of the FLS slider increases the number of balls and distributes the force more evenly, significantly improving load capacity and impact resistance;
2. Good installation stability: The flange base provides a larger mounting contact surface, allowing for fastening from above or below, suitable for equipment requiring high fixing strength;
3. Four-way equal load capacity: The FLS flange-type slider has a consistent rated load in all directions (up, down, left, and right), adapting to complex stress conditions;
4. Smooth operation and high precision: Optimized ball circulation results in low friction and low vibration, suitable for high-precision linear motion systems;
5. Wide range of applications: Particularly suitable for applications requiring high rigidity and high stability, such as CNC machine tools, automated production lines, and heavy-duty precision equipment.
