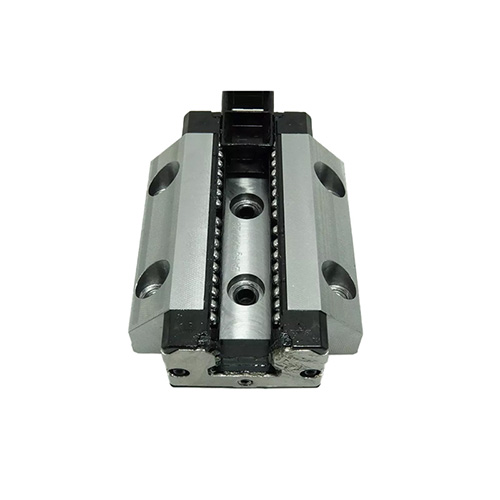

R165332222 Steel Standard Ball Block REXROTH FLS Medium Preload Slider

The Bosch Rexroth R165332222 is a high-precision carbon steel ball slide block (linear slide) with a long flange design (FLS). It is part of the High Precision Ball Guide System (BSHP) series. The R165332222 ball slide block is a 35 gauge and features an integrated ball chain for storage.

FLS is a specific specification code for slide blocks in REXROTH Linear Motion Technology systems, representing Flange, Long, and Standard height. FLS slide blocks offer extremely high rigidity and load-bearing capacity, suitable for applications with the most demanding rigidity requirements.

• Machine tools, Industrial automation and robotics, Precision packaging and printing machinery, Assembly and conveying technology, and Electronics and semiconductor equipment.
• Highlights of Rexroth REXROTH ball slides:
• Interchangeability with ball guide systems
• Optional integrated wear-free sensing measurement system
• Various accessories
• Top mounts can be bolted on from the top and bottom of the ball slide
• Increased stiffness under lifting and lateral loads by additional bolts secured in two holes in the center of the ball slide
• All accessories are equipped with end-face fastening threads
• High stiffness in all load directions - suitable for applications with only one slide per track
• Integrated fully sealed
• High torque load capacity
• Optimized inlet geometry and a large number of balls minimize changes in elastic deflection
• Smooth, noiseless operation due to optimized ball and ball chain return and guidance design
• Various preload levels
