R162119420 Ball Slider, extremely high load capacity, FLS type, size 15, CS steel, N-grade precision, C0-grade preload, standard seal, ball chain not included.
Bosch Rexroth's FLS ball slider is a flange-type, extended, standard height linear motion component. It is designed for operating environments with extremely high rigidity and load-bearing capacity requirements, offering excellent load-bearing capacity.
Key Features and Performance of FLS Ball Slider:
High Load Capacity and High Rigidity: The extended design provides a larger contact area compared to standard length sliders (such as FNS), significantly improving the ability to withstand high loads and moments.
Flexible Installation: As a flange-type slider, it supports bolt mounting from the top or bottom, suitable for various mechanical structures.
Applications: Possesses extremely high load-bearing capacity, suitable for applications with the most demanding stiffness requirements.
Smooth operation: Under external loads, it can effectively reduce friction fluctuations and provide excellent running smoothness.
Highlights of Rexroth REXROTH ball slides:
  • Interchangeability with ball guide systems
  • Optional integrated wear-free sensing measurement system
  • Various accessories
  • Top mounts can be bolted on from the top and bottom of the ball slide
  • Increased stiffness under lifting and lateral loads by additional bolts secured in two holes in the center of the ball slide
  • All accessories are equipped with end-face fastening threads
  • High stiffness in all load directions - suitable for applications with only one slide per track
  • Integrated fully sealed
  • High torque load capacity
  • Optimized inlet geometry and a large number of balls minimize changes in elastic deflection
  • Smooth, noiseless operation due to optimized ball and ball chain return and guidance design
  • Various preload levels

Item

Specification

Part Number

R165319420

Ball Runner Type

FLS

Size

15

Preload Class

C0

Accuracy Class

N

Sealing

SS – Standard Seal

Ball Chain

Without Ball Chain

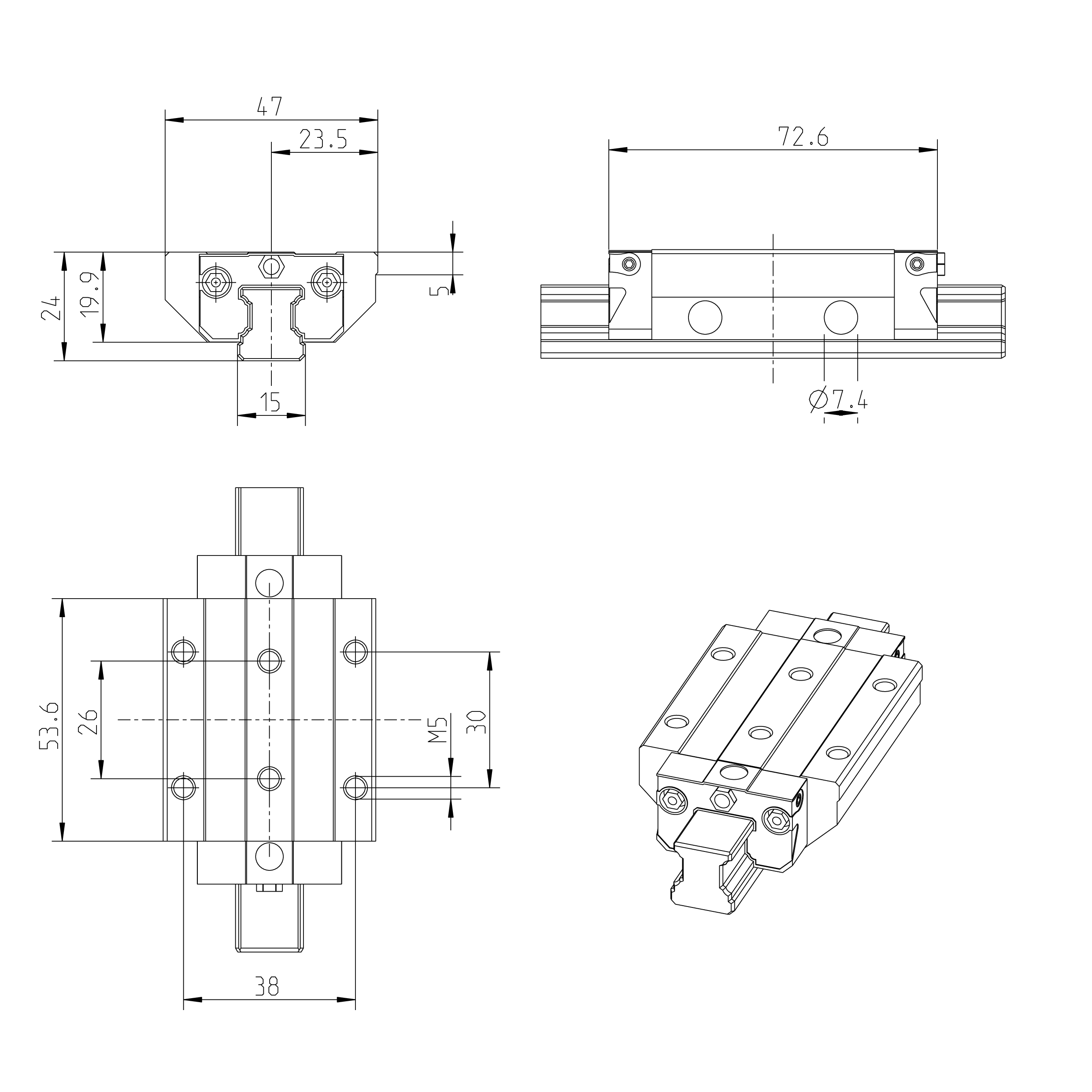

Guide Block Width [mm]

47

Guide Block Length [mm]

72.6

Guide Block Height [mm]

19.9

Guide Block Height with Rail [mm]

24

Mass [kg]

0.3

Rated Dynamic Load [N]

12800

Rated Static Load [N]

18400

Rated Dynamic Torque Load [Nm]

120

Rated Static Torque Load [Nm]

180
