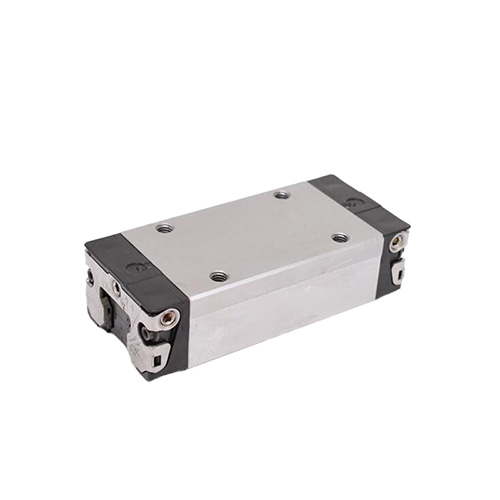

The Bosch Rexroth R162472820 SLH ball slide is a 30-size narrow-profile extended (SLH) high-precision ball slide with a carbon steel construction, suitable for applications with limited lateral space and high rigidity requirements.
The Rexroth SLH ball slide is an extended, high-center-of-gravity, narrow linear guide slide. It offers extremely high load capacity and rigidity, and is widely used in automated and CNC machinery with stringent precision and space requirements.
Advantages of the SLH high-center-of-gravity slide:
High load capacity and high rigidity: The long slide combined with the high profile design can withstand greater overall loads.
Smooth operation: Optimized internal raceway geometry ensures excellent motion smoothness.
Versatility: Compatible with various standard Rexroth profile guides, with high compatibility in sealing and lubrication systems.
Applications of Bosch Rexroth R162472820 Heavy-Duty Ball Sliders:
CNC Machine Tools
Automation Equipment
Semiconductor and Electronics Manufacturing
Industrial Robotics
Laser and Optical Equipment
Packaging and Printing
Medical Equipment
New Energy and Lithium Battery Equipment
Precision Measurement and Testing
Aerospace and Scientific Research Equipment
Item |
Specification |
Part Number |
R162472820 |
Ball Runner Type |
SLH |
Size |
30 |
Preload Class |
C2 |
Accuracy Class |
XP |
Sealing |
SS – Standard Seal |
Ball Chain |
Without Ball Chain |
Guide Block Width [mm] |
60 |
Guide Block Length [mm] |
119.7 |
Guide Block Height [mm] |
38.35 |
Guide Block Height with Rail [mm] |
45 |
Mass [kg] |
1.20 |
Rated Dynamic Load [N] |
46000 |
Rated Static Load [N] |
66900 |
Rated Dynamic Torque Load [Nm] |
800 |
Rated Static Torque Load [Nm] |
1160 |
