The REXROTH R162372822 slider is a high-precision ball slider from Bosch Rexroth ball guide systems. This model belongs to their SLS (narrow, long, standard high) carbon steel series and is equipped with a ball chain.
KWD-030-SLS-C2-X-1 is the complete code for all parameters of the R162372822 slider. 30 represents the size specification, SLS indicates that the slider is a narrow and long slider structure (high rigidity, saving lateral space), C2 indicates a medium preload level, and X indicates a higher precision level.
Item |
Specification |
Part Number |
R162372822 |
Ball Runner Type |
SLS |
Size |
30 |
Preload Class |
C2 |
Accuracy Class |
X |
Sealing |
SS – Standard Seal |
Ball Chain |
With Ball Chain |

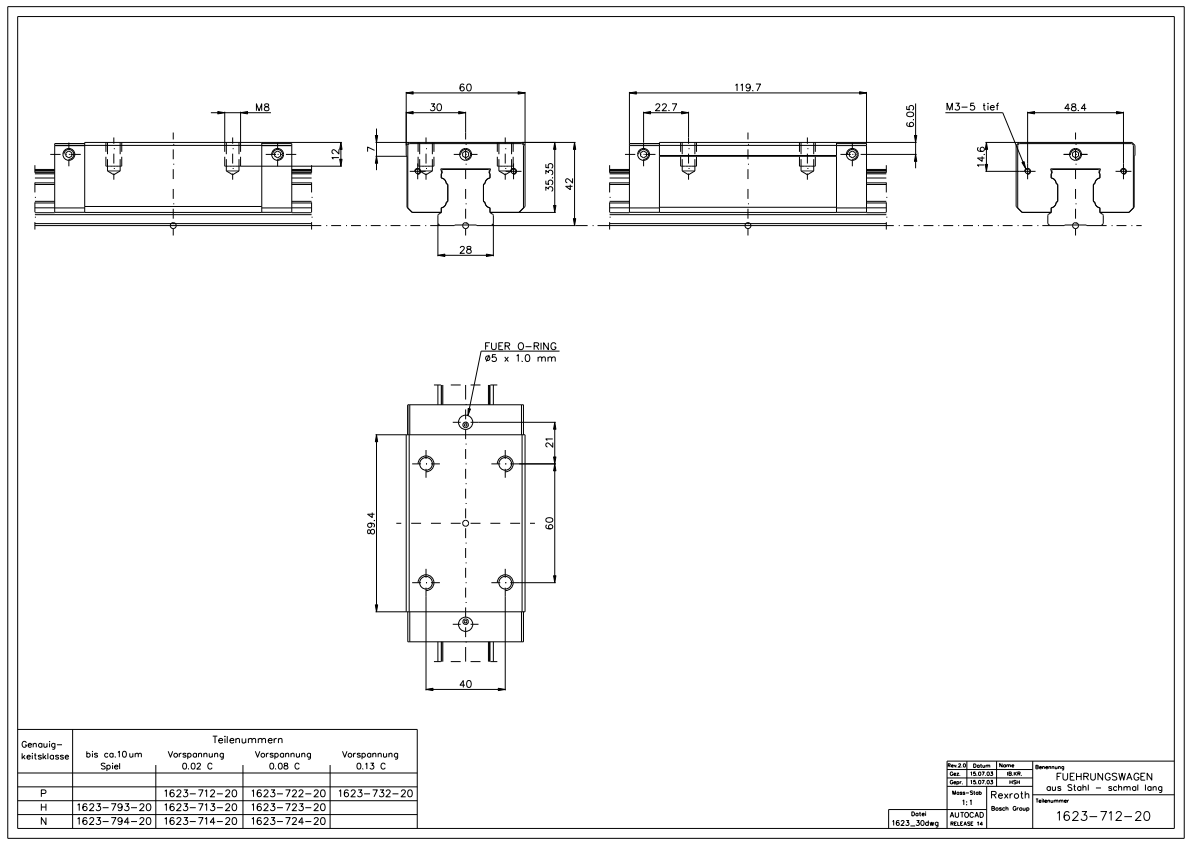

Guide Block Width [mm] |
60 |
Guide Block Length [mm] |
119.7 |
Guide Block Height [mm] |
35.35 |
Guide Block Height with Rail [mm] |
42 |
Mass [kg] |
1.10 |
Rated Dynamic Load [N] |
43800 |
Rated Static Load [N] |
62200 |
Rated Dynamic Torque Load [Nm] |
760 |
Rated Static Torque Load [Nm] |
1080 |
