R162371422 ball slide with ball chain REXROTH KWD-030-SLS-C1-N-1 block
R162371422 ball slide with ball chain REXROTH KWD-030-SLS-C1-N-1 block
R162371422 ball slide with ball chain REXROTH KWD-030-SLS-C1-N-1 block
R162371422 ball slide with ball chain REXROTH KWD-030-SLS-C1-N-1 block
R162371422 ball slide with ball chain REXROTH KWD-030-SLS-C1-N-1 block
R162371422 ball slide with ball chain REXROTH KWD-030-SLS-C1-N-1 block

R162371422 ball slide with ball chain REXROTH KWD-030-SLS-C1-N-1 block

Inquiry Contact Us
  • Description
1

+86-13636560152
[email protected]
Inquiry
R162371422 is a steel standard ball block slider, model KWD-030-SLS-C1-N-1, from the Bosch Rexroth SLS series. It features a narrow, long, standard-height SLS design, is compatible with 30mm wide guideways, and offers low preload (C1), standard precision (N), and ball chain sealing. It is specifically designed for high-precision linear motion applications with limited lateral space.
The REXROTH R1623 series ball slides (especially the SLS type) are actually a very classic standard linear guide slide from Bosch Rexroth. Its narrow, long, and high-rigidity design makes it very suitable for applications that need to bear high loads but have relatively limited installation space.
Key Features of the R1623 SLS Ball Slide Block:
Narrow Design: Suitable for applications with limited lateral installation space.
Extended Length: Offers higher load capacity and torsional rigidity compared to standard length slide blocks.
Interchangeability: This slide block can be used with ball guideways of the same size and accuracy class.
Material: Constructed from carbon steel.
Lubrication: Preliminary lubrication and rust prevention treatment is performed at the factory, typically using Dynalub 510 grease.
Rexroth SLS narrow ball slides are among the most common slide types used in industrial automation and precision manufacturing due to their narrow lateral design and high-precision operation.
Typical Application Industries
1. Machine Tools and Precision Metalworking
2. Electronics and Semiconductor Manufacturing
3. Measurement and Laboratory Technology
4. Automated Production Lines and Robotics
5. Packaging Machinery
6. Medical Equipment

Item

Specification

Part Number

R162371422

Ball Runner Type

SLS

Size

30

Preload Class

C1

Accuracy Class

N

Sealing

SS – Standard Seal

Ball Chain

With Ball Chain

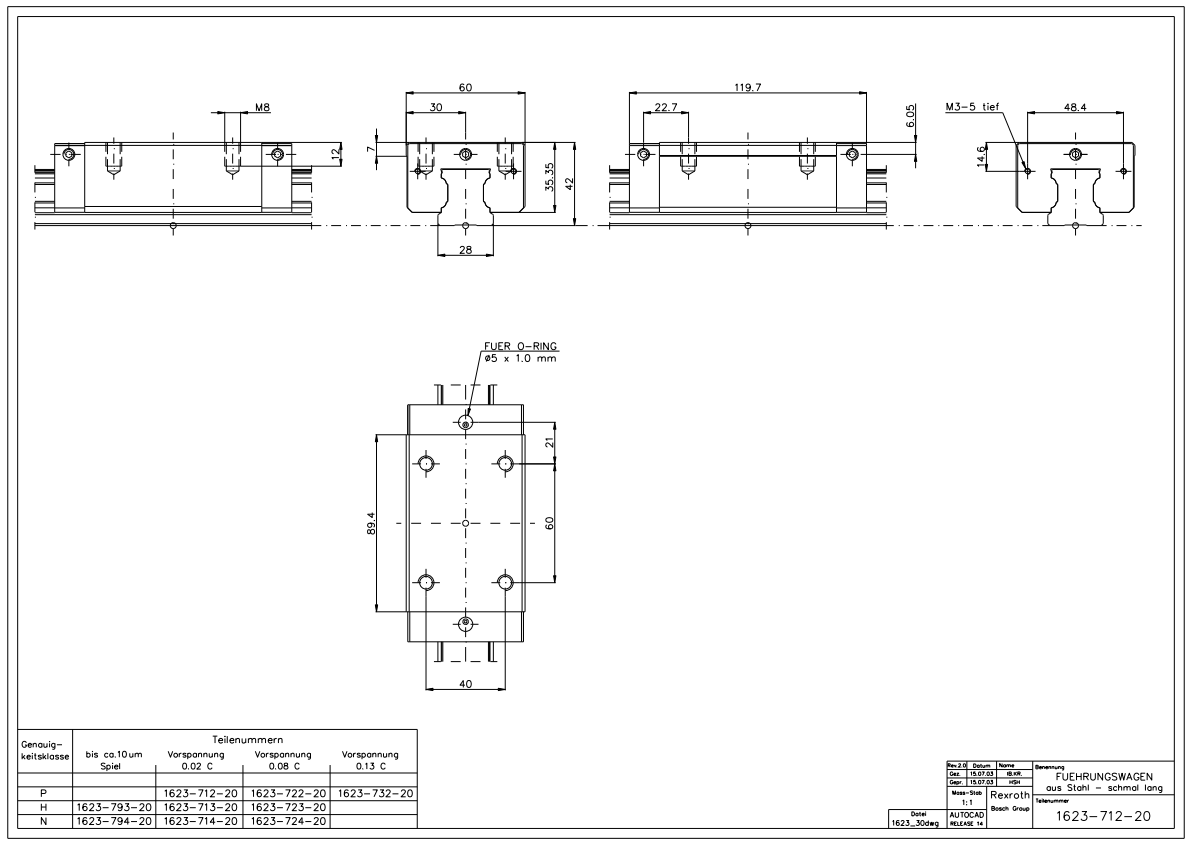

Guide Block Width [mm]

60

Guide Block Length [mm]

119.7

Guide Block Height [mm]

35.35

Guide Block Height with Rail [mm]

42

Mass [kg]

1.10

Rated Dynamic Load [N]

43800

Rated Static Load [N]

62200

Rated Dynamic Torque Load [Nm]

760

Rated Static Torque Load [Nm]

1080
