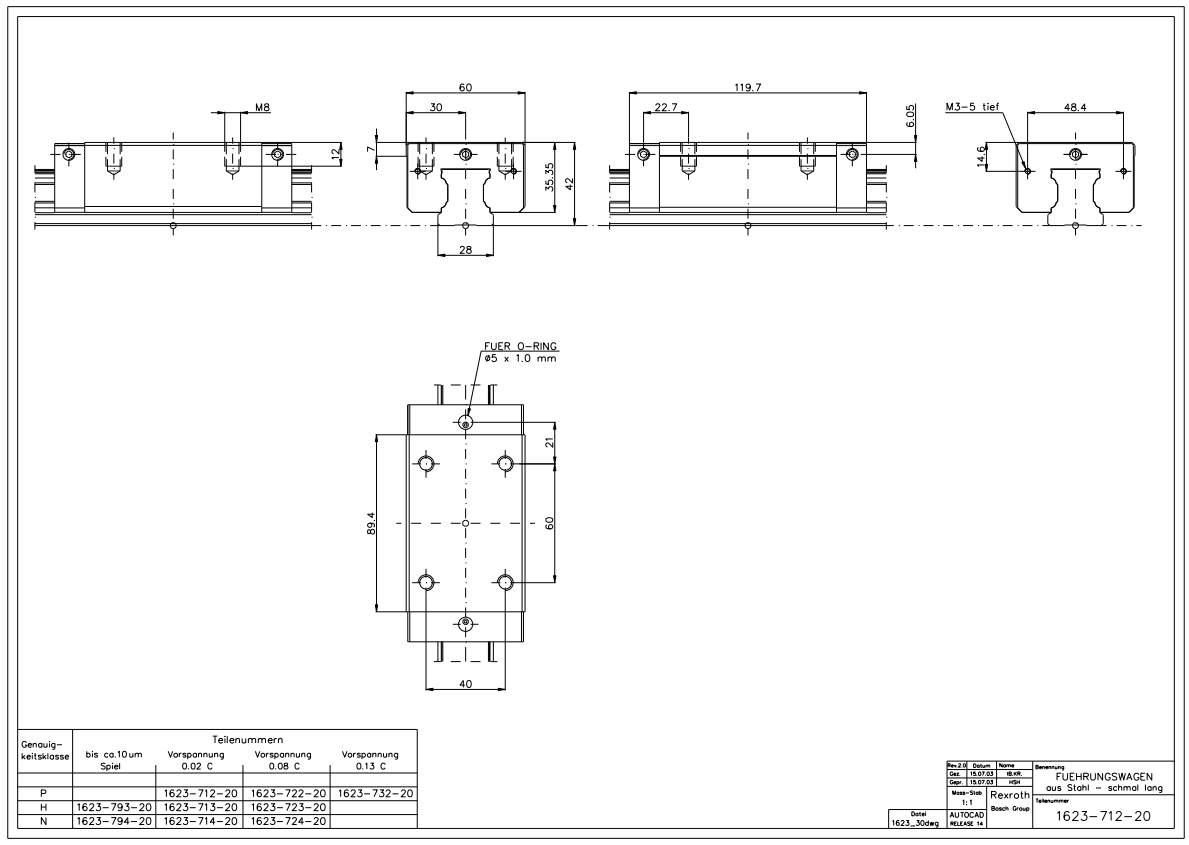

The Bosch Rexroth R162371220 ball slide is a narrow, long, standard-height ball slide constructed of carbon steel. Its standard sealed design without a ball chain achieves high rigidity, low friction, and heavy load capacity, making it suitable for high-precision, high-load linear motion applications.
KWD-030-SLS-C1-P-1 is the complete code for the R162371220 slide's parameters. 30 represents the size specification, SLS indicates a narrow, long slide structure (high rigidity, saving lateral space), C1 indicates a light preload level, and P indicates a precision level.
Item |
Specification |
Part Number |
R162371220 |
Ball Runner Type |
SLS |
Size |
30 |
Preload Class |
C1 |
Accuracy Class |
P |
Sealing |
SS – Standard Seal |
Ball Chain |
Without Ball Chain |
Guide Block Width [mm] |
60 |
Guide Block Length [mm] |
119.7 |
Guide Block Height [mm] |
35.35 |
Guide Block Height with Rail [mm] |
42 |
Mass [kg] |
1.10 |
Rated Dynamic Load [N] |
46000 |
Rated Static Load [N] |
66900 |
Rated Dynamic Torque Load [Nm] |
800 |
Rated Static Torque Load [Nm] |
1160 |
