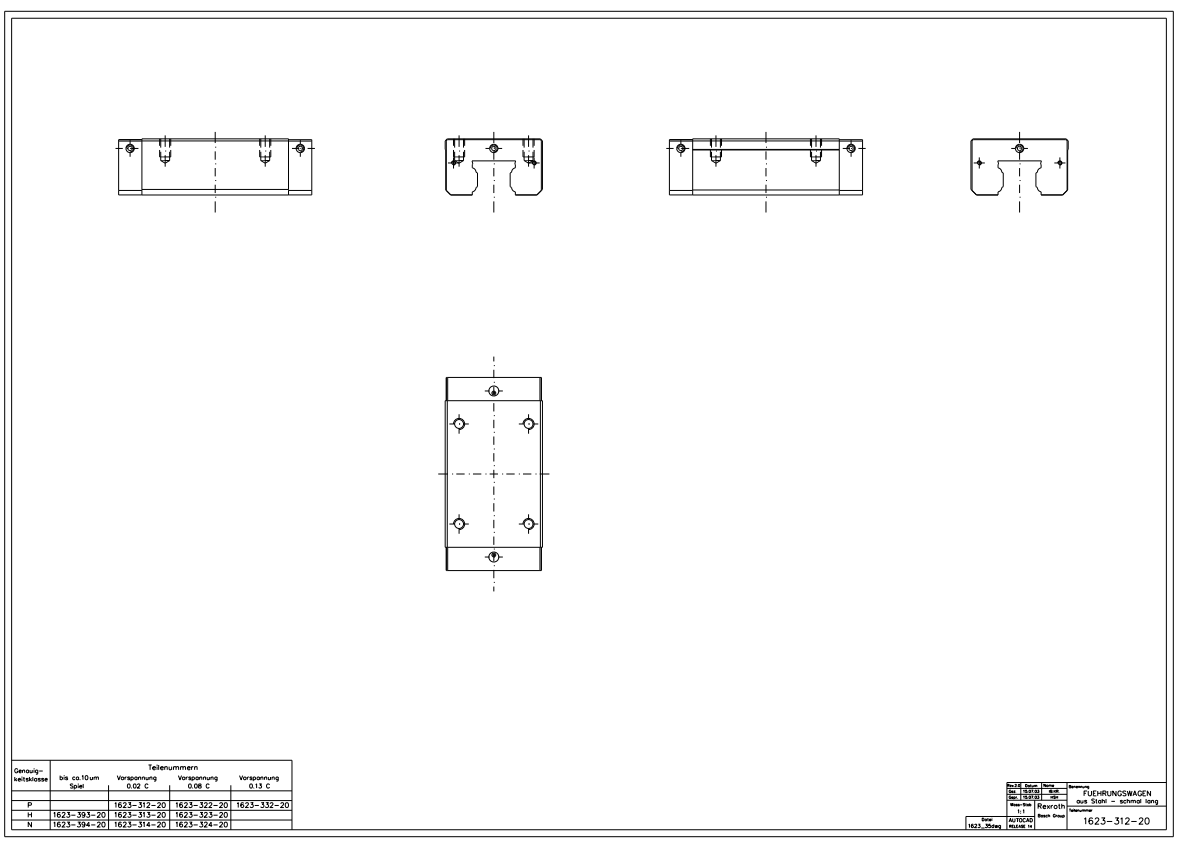

R162332322 SLS high-precision linear guide slider REXROTH KWD-035-SLS-C1-H-1

The R162332322 is a 35 size SLS series steel ball linear slide block. It features a narrow, extended design, high rigidity, high load capacity, smooth operation, and low friction, making it suitable for CNC machine tools, automation equipment, laser processing, and high-speed linear motion systems.

Key features of the REXROTH SLS series ball linear slide blocks:

① Narrow, extended standard height structure, requiring less lateral installation space. The height is the same as conventional slide blocks, eliminating the need for frame modifications, and adapting to compact equipment layouts;

② Four-row ball bearing layout, four-way equal rated load. The extended slide body significantly improves anti-tipping and anti-torque capabilities, resulting in excellent overall rigidity;

③ Multiple precision grades (N/P/H/SP/XP) are available, and slide blocks of the same specification are fully interchangeable, facilitating inventory and maintenance replacement;

④ Supports multiple preload levels (C0/C1/C2/C3), eliminating backlash, reducing frictional resistance, eliminating crawling at low speeds, reducing noise, and adapting to high-speed conditions.
