R162331222 Linear Ball Slider for Automated Equipment KWD-035-SLS-C1-P-1

The Bosch Rexroth R162331222 slider is a high-precision ball bearing slider designed for linear motion applications requiring a compact design and superior performance.

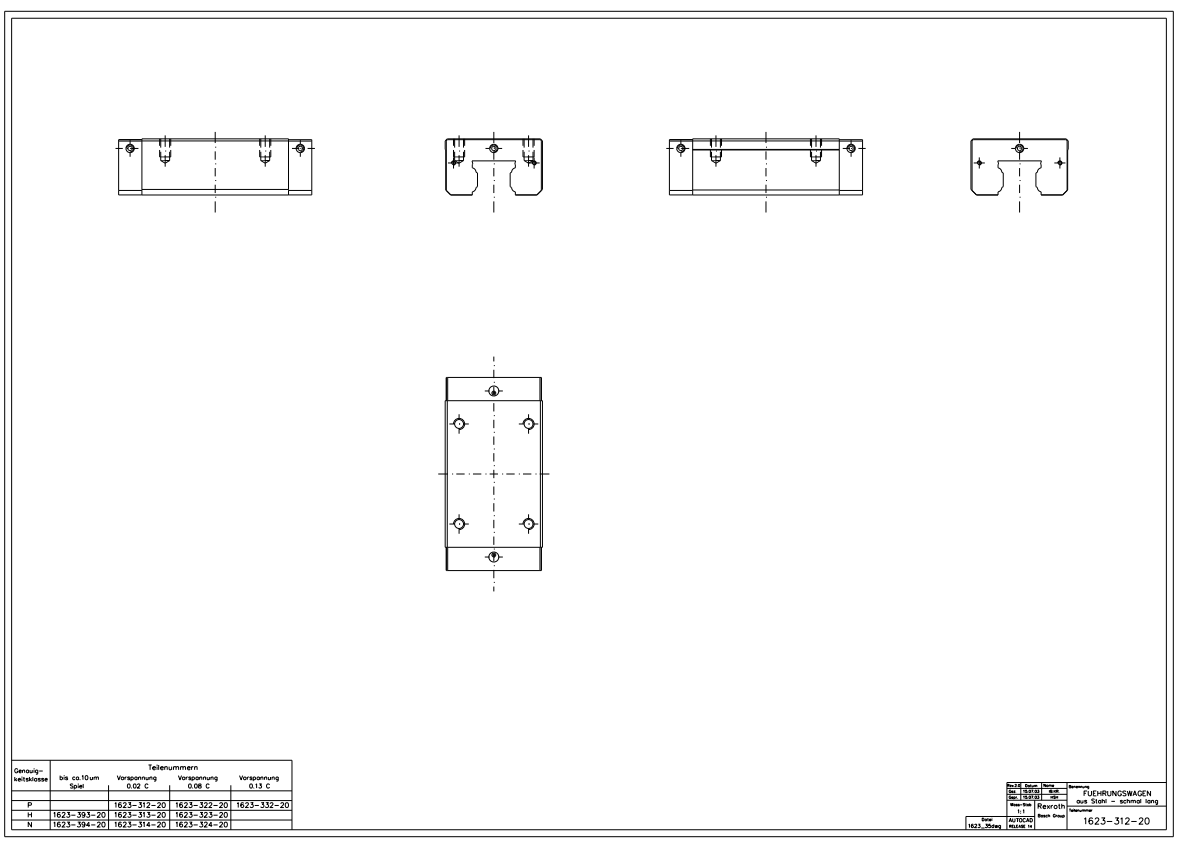

The SLS R162331222 slider features a slim width, relatively long length, and standard height, and is made of alloy-free steel CS. KWD-035-SLS-C1-P-1 indicates a preload class of C1, signifying light preload, and a precision class of P, representing high precision. This slider has a total length of 139 mm, high load ratings in all four main load directions, and supports long-term lubrication for several years.

Key features of SLS ball slides include:

Narrow design, saving installation space: SLS slides have a narrow lateral width, suitable for applications with limited internal space, while maintaining a longer slide length to increase load-bearing capacity.

Four-row ball design, equal load in four directions: Utilizing a four-row ball design with a 45° contact angle, it can withstand the same rated load in all four main directions (up, down, left, and right), providing high rigidity and balanced force distribution.

High precision and high repeatability: Available in precision grades N/H/P/XP to meet the needs of precision equipment, high-speed motion platforms, CNC applications, etc.

Interchangeable guide rails and slides: Within the same precision grade, slides and guide rails can be freely combined, facilitating maintenance and simplifying spare parts management.
