PU05TR NSK Ball Linear Guide PU Miniature Linear Guide Lightweight Slider PU05
PU05TR NSK Ball Linear Guide PU Miniature Linear Guide Lightweight Slider PU05
PU05TR NSK Ball Linear Guide PU Miniature Linear Guide Lightweight Slider PU05
PU05TR NSK Ball Linear Guide PU Miniature Linear Guide Lightweight Slider PU05

PU05TR NSK Ball Linear Guide PU Miniature Linear Guide Lightweight Slider PU05

Inquiry Contact Us
  • Description
1

+86-13636560152
[email protected]
Inquiry

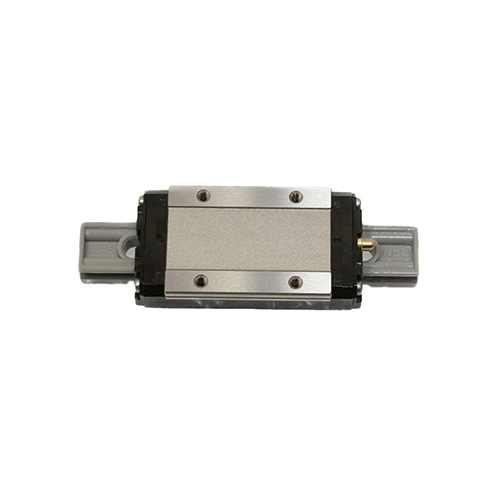

The PU05TR is an easy-to-operate, lightweight, and compact NSK miniature linear guide with smooth start-up and advanced lightweight design. Features include smooth start-up, lightweight construction, stainless steel construction, and low dust generation.
NSK PU Miniature Linear Guide Features:
* Low inertia, low dust generation in a compact series
* Low dust generation, stable operation
* Ultra-compact
* Standard series available in stainless steel versions
* Standardized series with protective plates
* Standardized interchangeable parts (interchangeable items) that can be purchased separately from the slider
NSK PU Miniature Linear Guide Applications:
⦁ Semiconductor manufacturing equipment
⦁ LCD panel manufacturing equipment
⦁ Medical devices
⦁ Optical microscope platforms
⦁ Microscope XY platforms
⦁ Fiber optic transmission
⦁ Miniature robotic arms
⦁ Computer peripherals
⦁ Pneumatic machinery

Item

Specification

Product Model

PU05TR

Slider Series

PU

Slider Type

TR

Specification

5

Individual Slider Model

PAU

Individual Guide Rail Model

P1U

Guide Rail Length

100-3000mm

Guide Slider Width[mm]

12

Guide Slider Length[mm]

19.4

Guide Slider Height[mm]

5

Guide Rail Width[mm]

5

Guide Rail Height[mm]

3.2

Height of Slider with Rail[mm]

6

Slider Weight[g]

4

Guide Rail Weight[g/100mm]

11

Rated Dynamic Load [N]

50Km-520

100Km-410

Rated Static Load [N]

775
