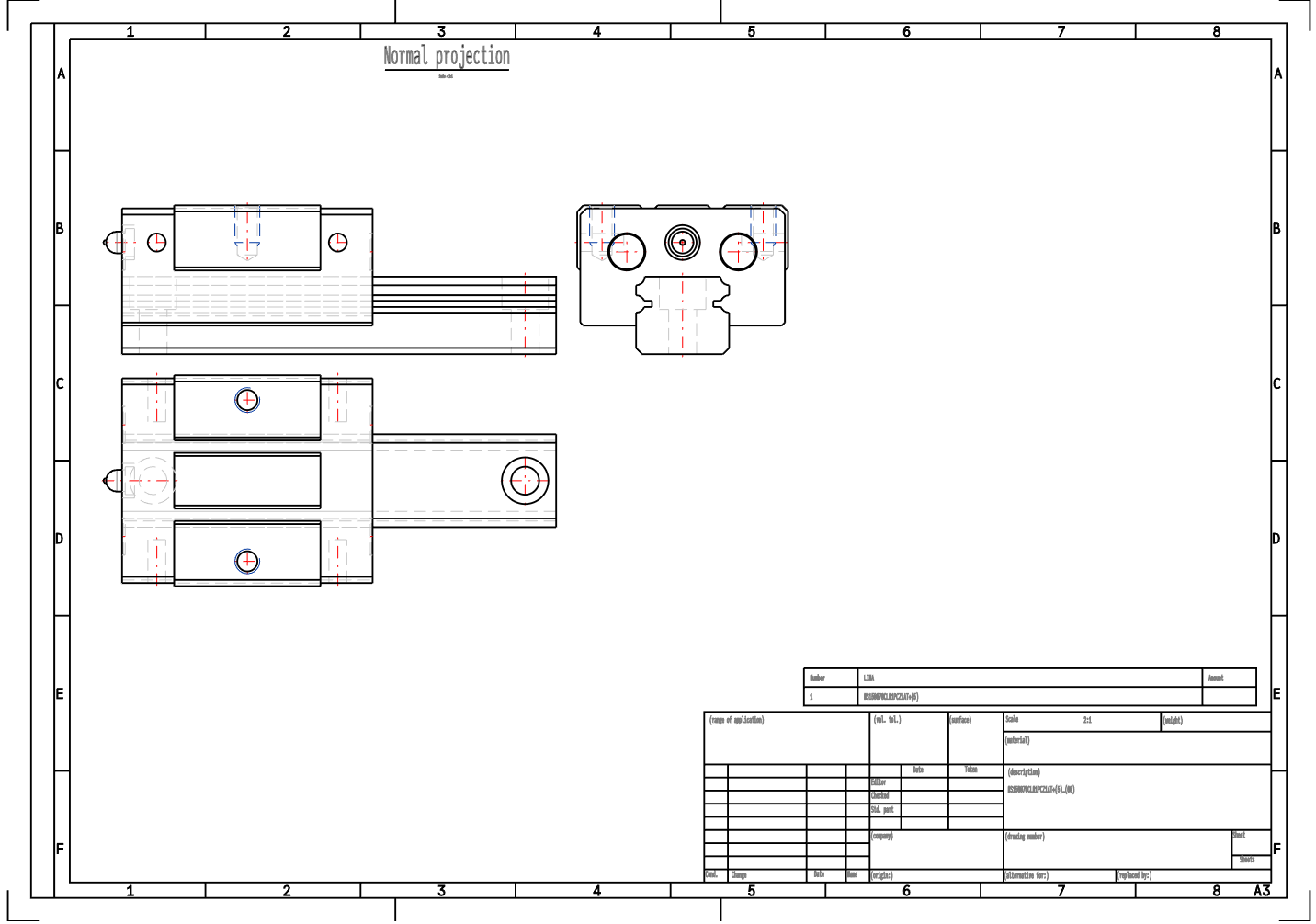

NS15CL NSK Linear Guide NS-CL Short Style Block NAS15CL Linear Guide Block

NSK NS15CL linear guides are based on widely used, highly reliable standard linear guides, achieving a significant improvement in durability. They are also equipped with interchangeable parts and lubrication units to meet the requirements of various production equipment.

NS Series Linear Guides Features:
A low-profile series widely used in various fields, from general industry to high precision.

Interchangeable parts (interchangeable components) standard settings.

• Compact and low-profile design
• By setting the contact angle between the ball and the groove to 50°, the ability to withstand the frequent vertical loads encountered in use is improved.
• By adopting a DF contact structure, the ability to absorb installation errors in the right-angle direction of the track is improved.
• Due to the use of offset Gothic circular arc grooves, the ball rolls with two-point contact, resulting in low friction.
• Features a structure with strong resistance to impact loads.
• The Gothic circular arc grooves facilitate accurate and simple precision measurement.
• Standardized interchangeable parts (interchangeable components) for separate purchase of guide rails and sliders.
• Standard series available in stainless steel.

NSK NS Series Linear Guide Applications: Orthogonal coordinate robots, injection molding machine unloading robots, handling devices, food machinery, packaging and bundling machinery, printing machinery, woodworking machinery, papermaking machinery, measuring machinery, inspection devices, semiconductor manufacturing equipment, LCD substrate manufacturing machinery, medical devices, EDM machinery, laser processing machinery, stamping machinery.
