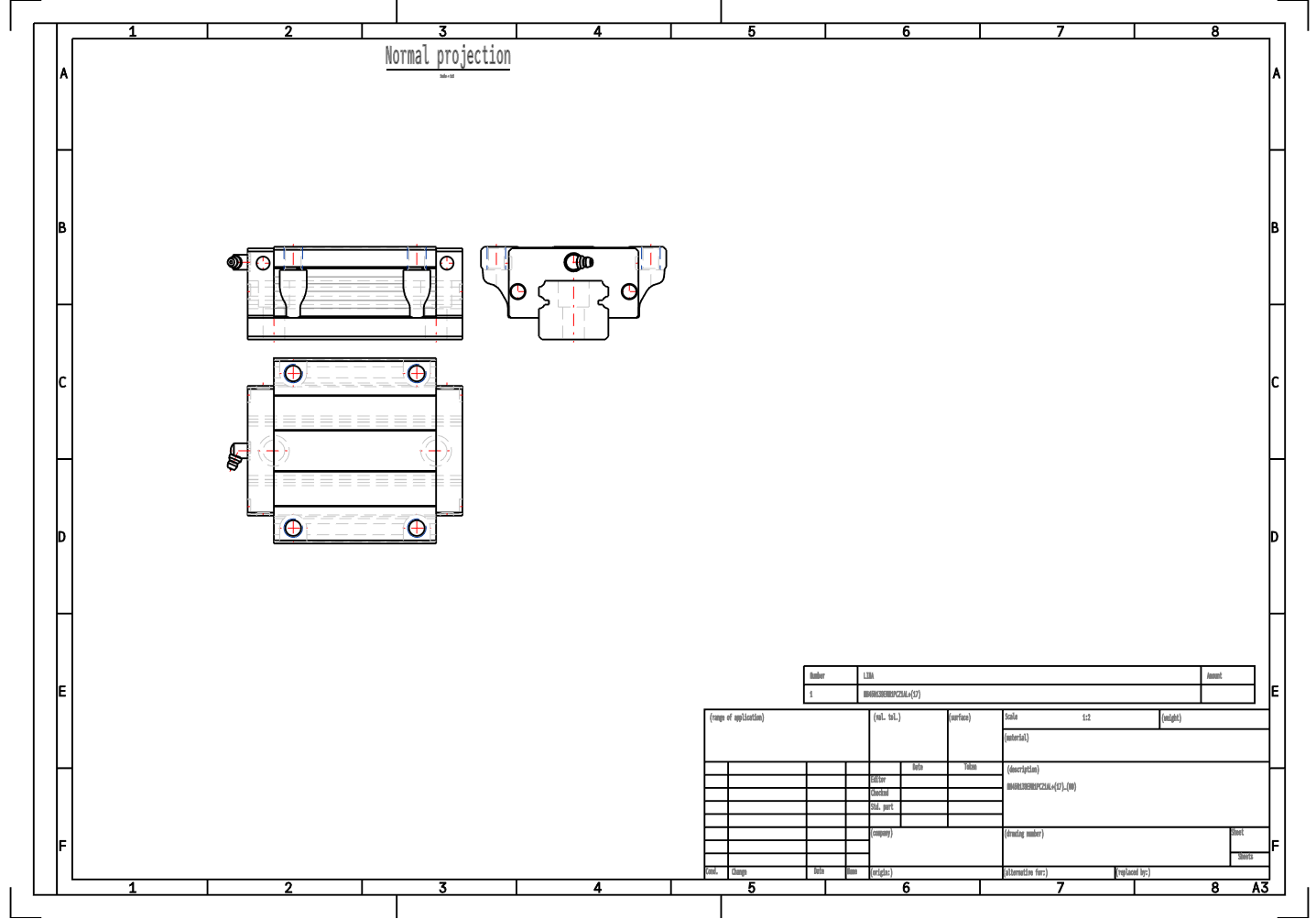

NAK NH45EM NH Linear Guide for Machine Tools NAH45EM Linear Guide Block

NH45EM Linear Guide, Brand: NSK, NH Series, Slider Model: EM, Flange Slider, High-Load Type, Standard Specification, for General Industrial Use

NH45EM, as a standard series of NSK linear guides, has significantly improved durability. It is a product consistent with world standard dimensions. Its superior performance can be applied in all industrial fields.

Features of NH Series:

⦁ Leapfrog improvement in service life. Based on the original LH series products trusted by customers, it has achieved a substantial increase in wear resistance.

⦁ Circulation circuit with high-speed characteristics. By optimizing the design of the circulation circuit, smooth circulation is achieved and noise is reduced. It is more suitable for high-speed operation compared with LH series.

⦁ Installation dimensions are the same as LH and SH series

⦁ Strong self-aligning ability (horizontal direction)

⦁ Strong load capacity in vertical direction. The contact angle is set at 50°, so the load capacity and rigidity in vertical direction are enhanced.

⦁ Strong resistance to impact load

⦁ High precisionIn the Gothic arc shape, the measuring rollers are easy to fix, and the precision measurement of the ball grooves is simple, easy and accurate.

⦁ Easy to use and safe in designEven if the slider is pulled out from the guide rail, the balls will not fall off due to the protection of the guard plate.

⦁ Rich models and serialized dimensionsIn each series, there are various slider shapes to meet all application needs.

⦁ Short delivery time availableThrough the serialization of interchangeable parts for guide rails and sliders, short delivery time can be satisfied. Precision class/medium preload types are available. (Special high-carbon steel products)
