KWD-035-SLS-C3-X-1 R162333822 Size 35 Ball Block R1623 Series Sliders

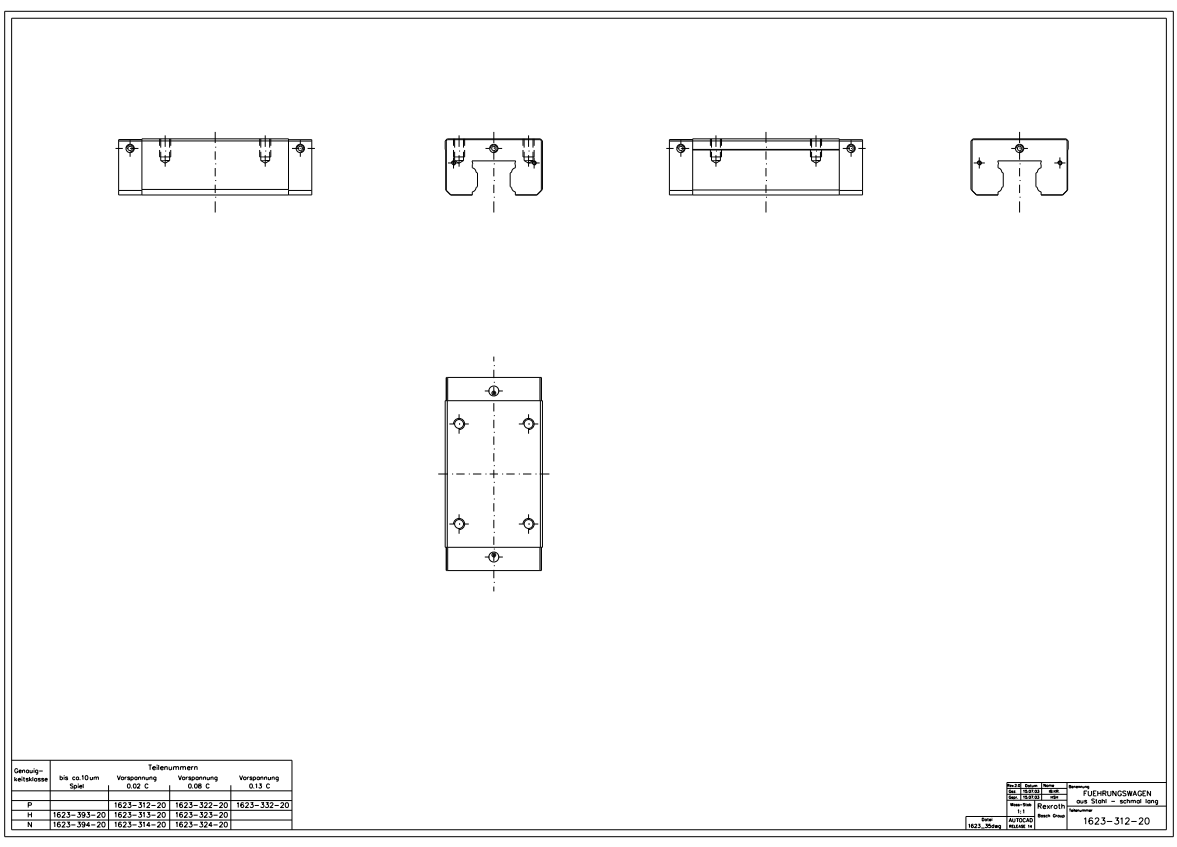

The REXROTH SLS R162333822 is a 35mm narrow, extended, standard height ball slide from the SLS series, belonging to the R1623 series, and compatible with SNS/SNO type ball guides.

KWD-035-SLS-C3-X-1 is the complete code for the parameters of the R162333822 slide. 35 represents the size specification, SLS indicates that the slide has a narrow, long slide structure (high rigidity, saving lateral space), C3 indicates a high preload level, and X indicates an ultra-precision level.

The core features of the R162333822 slider are:

It employs a four-row ball bearing structure, achieving equal load capacity in four directions, providing strong load-bearing capacity and the ability to withstand torque loads;

The SLS narrow and extended design maintains high rigidity and high load-bearing performance even in space-constrained conditions;

It supports both long-term lubrication and initial pre-lubrication designs, enabling years of low-maintenance operation;

The standard sealing structure provides excellent dustproof and contamination resistance;

The slider and guide rail are interchangeable within the same precision class, facilitating maintenance and replacement.
