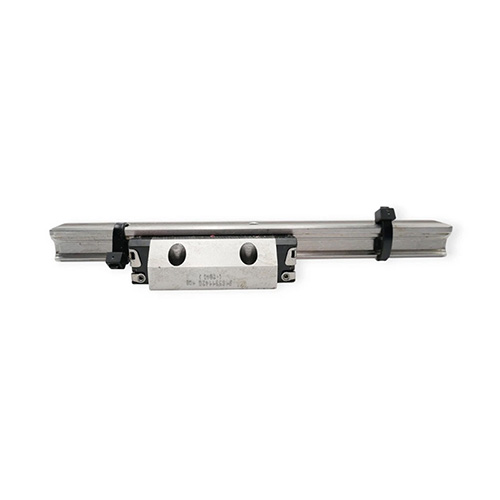

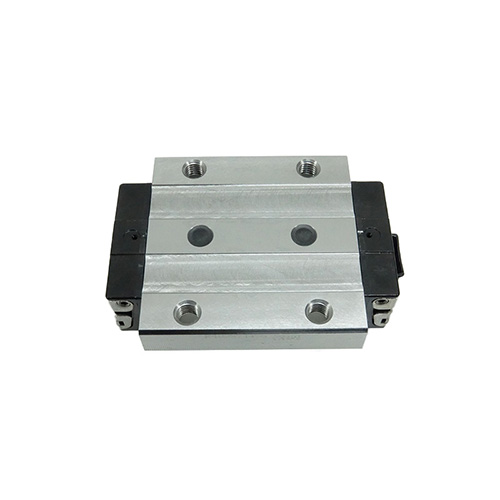

165332822 Ball Slider, extremely high load capacity, FLS type, size 30, CS steel, XP-grade precision, C2-grade preload, standard seal, ball chain included.
Bosch Rexroth's FLS steel ball slider is a flange-type, extended, standard height linear motion component. It is designed for operating environments with extremely high rigidity and load-bearing capacity requirements, offering excellent load-bearing capacity.
Key Features and Performance of FLS Ball Slider:
  • High Load Capacity and High Rigidity: The extended design provides a larger contact area compared to standard length sliders (such as FNS), significantly improving the ability to withstand high loads and moments.
  • Flexible Installation: As a flange-type slider, it supports bolt mounting from the top or bottom, suitable for various mechanical structures.
  • Applications: Possesses extremely high load-bearing capacity, suitable for applications with the most demanding stiffness requirements.
  • Smooth operation: Under external loads, it can effectively reduce friction fluctuations and provide excellent running smoothness.
Rexroth ultra-high load capacity ball slides FLS are primarily used in the following industries:
 Machine tools, Industrial automation and robotics, Precision packaging and printing machinery, Assembly and conveying technology, and Electronics and semiconductor equipment.

Item

Specification

Part Number

165332822

Ball Runner Type

FLS

Size

35

Preload Class

C2

Accuracy Class

XP

Sealing

SS – Standard Seal

Ball Chain

With Ball Chain

Guide Block Width [mm]

100

Guide Block Length [mm]

139

Guide Block Height [mm]

40.40

Guide Block Height with Rail [mm]

48

Mass [kg]

2.25

Rated Dynamic Load [N]

63600

Rated Static Load [N]

10800

Rated Dynamic Torque Load [Nm]

1370

Rated Static Torque Load [Nm]

2320
