Core features of MGN9C-0
Ultra-small and lightweight design
The main body of the slider is made of resin material, which reduces the overall weight by about 20%, significantly reducing the inertia of movement.
It is extremely small and suitable for precision equipment with strict space requirements.
Gothic four-point contact design
The steel ball contacts the raceway at 45°, which can withstand radial, reverse radial and lateral loads.
Provides high rigidity, high precision and stability, and has strong resistance to mounting surface errors.
Steel ball retainer design
The retainer fixes the position of the steel ball to avoid mutual friction and improve the smoothness of operation.
The modular design ensures interchangeability within the accuracy range and is easy to maintain and replace.
Modular reflux system
Optimize the circulation path of the steel ball, reduce vibration noise, and extend the service life.
Product Information | |
Product Name |
HIWIN MGN9C-0 Linear Guide |
Material |
steel |
Length |
Customized |
Model No. |

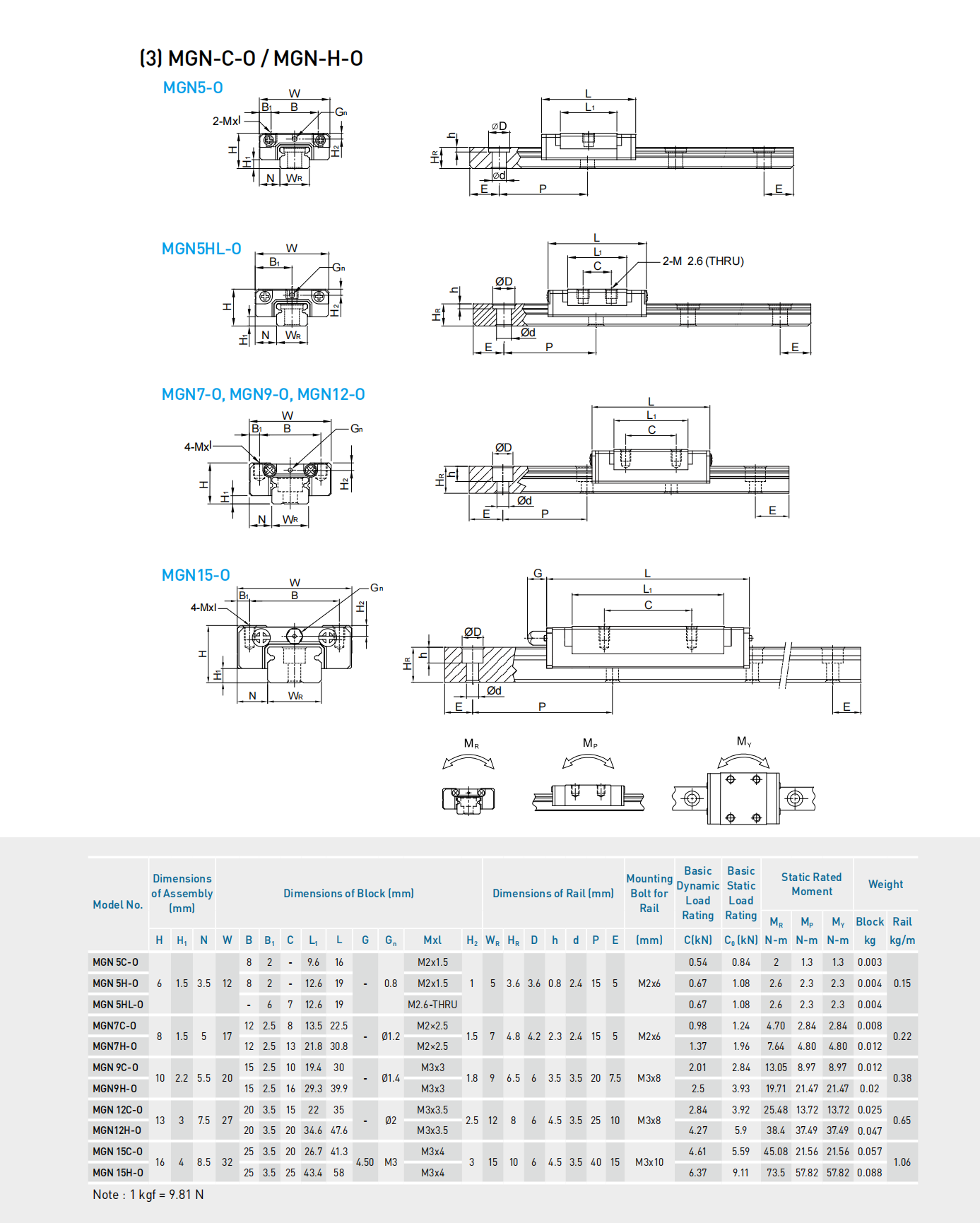

MGN5C-0 MGN5H-0 MGN5HL-0 MGN7C-0 MGN7H-0 MGN9C-0 MGN9H-0 MGN12C-0 MGN12H-0 MGN15C-0 MGN15H-0 |
Our services |
According to drawings or samples for our customers to manufacture products. |
Product Package |
a. Plastic bag with box case or wooden case. We can provide shipping information to our customer at any time. |
Typical application scenarios |
a. Precision measuring instruments b. Semiconductor manufacturing equipment c. Medical equipment d. Small automation equipment e. Optical instruments f. Small robot arm guide rails / robot joint guide rails |
