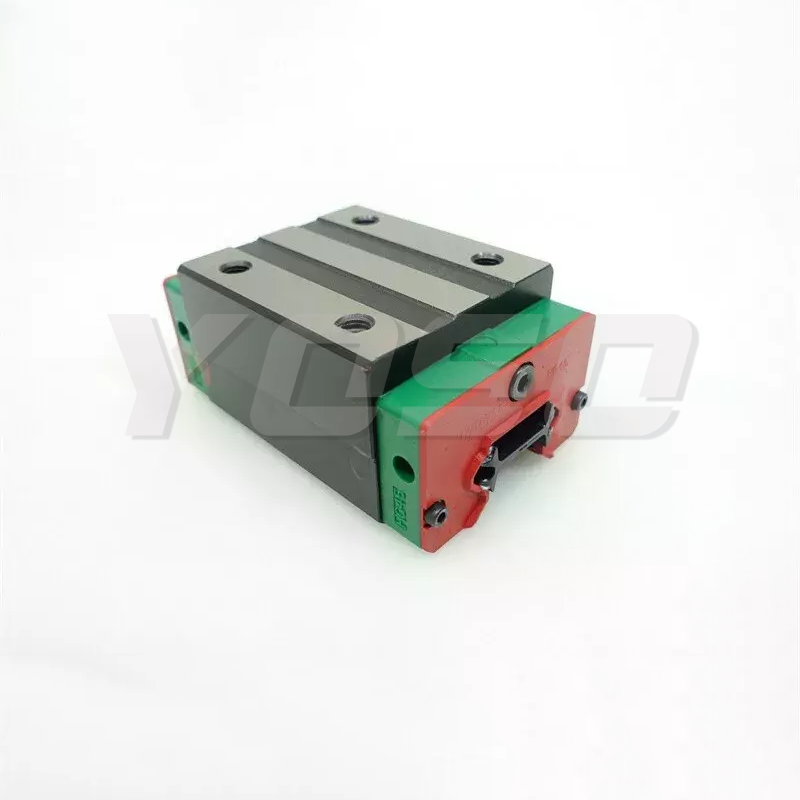

The HIWIN HGH25HA Linear Guide are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error. Thus, the HIWIN HGH25HA Linear Guide can achieve a long life with high speed, high accuracy and smooth linear motion.
Industrial automation equipment: In automated production lines, robots and other equipment, precise linear motion is required to ensure the accuracy and stability of the production process. The HGH25HA linear guide can ensure extremely precise linear motion, meet the needs of automated equipment to transfer loads in the horizontal and vertical directions, thereby improving production efficiency and product quality.
Mechanical processing equipment: such as CNC machining centers, the movement of tools and workpieces during the machining process requires high-precision linear guidance. The high-precision characteristics of the HGH25HA linear guide can ensure machining accuracy, reduce errors, and make the machined parts meet the design requirements.
Model No. |
Dimensions of Assembly (mm) |
Dimensions of Block(mm) | Dimensions of Rail (mm) | Mounting Bolt for Rail |
Basic Dynamic Load Rating |
Basic Static Load Rating |
Static Rated Moment |
Weight | |||||||||||||||||||||||
| Mg
kN-m |
Mp
kN-m |
My
kN-m |
Block
kg |
Rai
kg/m |
|||||||||||||||||||||||||||
| H | H₁ | N | W | B | B₁ | C | L₁ | L | K₁ | K₂ | G | Mxl | T | H₂ | H₃ | Wg | Hg | D | h | d | P | E | (mm) | C(kN) | C₀ (kN) | ||||||
| HGH15CA | 28 | 4.3 | 9.5 | 34 | 26 | 4 | 26 | 39.4 | 61.4 | 10 | 4.85 | 5.3 | M4x5 | 6 | 7.95 | 7.7 | 15 | 15 | 7.5 | 5.3 | 4.5 | 60 | 20 | M4x16 | 14.7 | 23.47 | 0.12 | 0.10 | 0.10 | 0.18 | 1.45 |
| HGH20CA | 30 | 4.6 | 12 | 44 | 32 | 6 | 36 | 50.5 | 77.5 | 2.25 | 6 | 12 | M5x6 | 8 | 6 | 6 | 20 | 17.5 | 9.5 | 8.5 | 6 | 60 | 20 | M5x16 | 27.1 | 36.68 | 0.27 | 0.20 | 0.20 | 0.30 | 2.21 |
| HGH2OHA | 50 | 65.2 | 92.2 | 12.6 | 32.7 | 47.96 | 0.35 | 0.35 | 0.35 | 0.39 | |||||||||||||||||||||
| HGH25CA | 40 | 5.5 | 12.5 | 48 | 35 | 6.5 | 35 | 58 | 84 | 15.7 | 6 | 12 | M6x8 | 8 | 10 | 9 | 23 | 22 | 11 | 9 | 7 | 60 | 20 | M6x20 | 34.9 | 52.82 | 0.42 | 0.33 | 0.33 | 0.51 | 3.21 |
| HGH25HA | 50 | 78.6 | 104.6 | 18.5 | 42.2 | 69.07 | 0.56 | 0.57 | 0.57 | 0.69 | |||||||||||||||||||||
| HGH30CA | 45 | 6 | 16 | 60 | 40 | 10 | 40
60 |
70 | 97.4 | 20.25 | 6 | 12 | M8x10 | 8.5 | 9.5 | 13.8 | 28 | 26 | 14 | 12 | 9 | 80 | 20 | M8x25 | 48.5 | 71.87 | 0.66 | 0.53 | 0.53 | 0.88 | 4.47 |
| HGH30HA | 93 | 120.4 | 21.75 | 58.6 | 93.99 | 0.88 | 0.92 | 0.92 | 1.16 | ||||||||||||||||||||||
