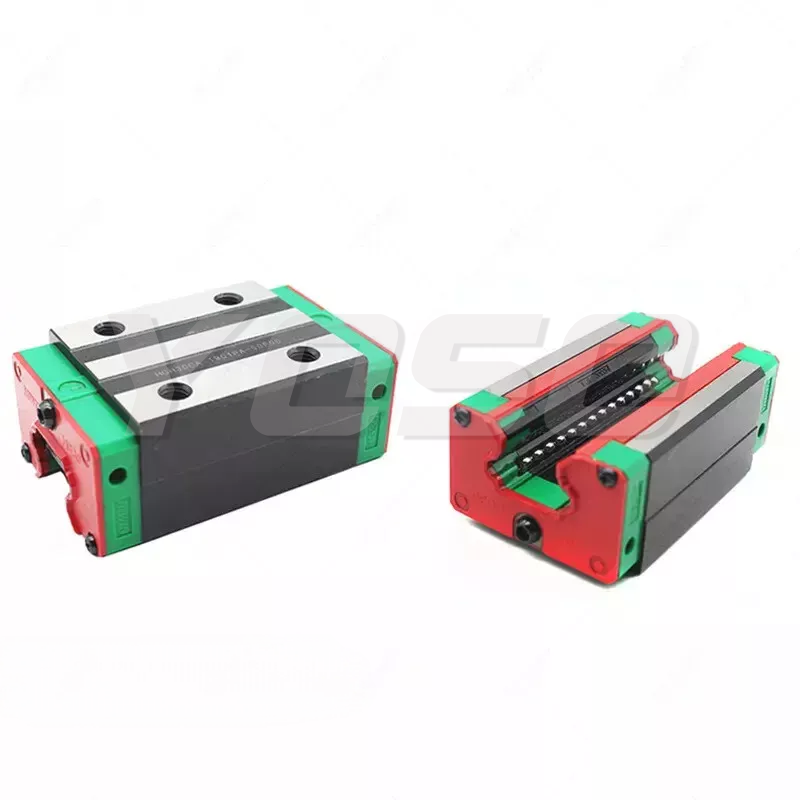

The HIWIN HGH20HA Linear Guide are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error. Thus, the HIWIN HGH20HA Linear Guide can achieve a long life with high speed, high accuracy and smooth linear motion.
Industrial automation equipment: In automated production lines, robots and other equipment, precise linear motion is required to ensure the accuracy and stability of the production process. The HGH20HA linear guide can ensure extremely precise linear motion, meet the needs of automated equipment to transfer loads in the horizontal and vertical directions, thereby improving production efficiency and product quality.
Mechanical processing equipment: such as CNC machining centers, the movement of tools and workpieces during the machining process requires high-precision linear guidance. The high-precision characteristics of the HGH20HA linear guide can ensure machining accuracy, reduce errors, and make the machined parts meet the design requirements.
HIWIN model
HGH15CA HGH20CA HGH20HA HGH25CA HGH25HA HGH30CA HGH30HA HGH35CA HGH35HA HGH45CA HGH45HA HGH55CA HGH55HA HGH65CA HGH65HA
Model No. |
Dimensions of Assembly (mm) |
Dimensions of Block(mm) | Dimensions of Rail (mm) | Mounting Bolt for Rail |
Basic Dynamic Load Rating |
Basic Static Load Rating |
Static Rated Moment |
Weight | |||||||||||||||||||||||
| Mg
kN-m |
Mp
kN-m |
My
kN-m |
Block
kg |
Rai
kg/m |
|||||||||||||||||||||||||||
| H | H₁ | N | W | B | B₁ | C | L₁ | L | K₁ | K₂ | G | Mxl | T | H₂ | H₃ | Wg | Hg | D | h | d | P | E | (mm) | C(kN) | C₀ (kN) | ||||||
| HGH15CA | 28 | 4.3 | 9.5 | 34 | 26 | 4 | 26 | 39.4 | 61.4 | 10 | 4.85 | 5.3 | M4x5 | 6 | 7.95 | 7.7 | 15 | 15 | 7.5 | 5.3 | 4.5 | 60 | 20 | M4x16 | 14.7 | 23.47 | 0.12 | 0.10 | 0.10 | 0.18 | 1.45 |
| HGH20CA | 30 | 4.6 | 12 | 44 | 32 | 6 | 36 | 50.5 | 77.5 | 2.25 | 6 | 12 | M5x6 | 8 | 6 | 6 | 20 | 17.5 | 9.5 | 8.5 | 6 | 60 | 20 | M5x16 | 27.1 | 36.68 | 0.27 | 0.20 | 0.20 | 0.30 | 2.21 |
| HGH2OHA | 50 | 65.2 | 92.2 | 12.6 | 32.7 | 47.96 | 0.35 | 0.35 | 0.35 | 0.39 | |||||||||||||||||||||
| HGH25CA | 40 | 5.5 | 12.5 | 48 | 35 | 6.5 | 35 | 58 | 84 | 15.7 | 6 | 12 | M6x8 | 8 | 10 | 9 | 23 | 22 | 11 | 9 | 7 | 60 | 20 | M6x20 | 34.9 | 52.82 | 0.42 | 0.33 | 0.33 | 0.51 | 3.21 |
| HGH25HA | 50 | 78.6 | 104.6 | 18.5 | 42.2 | 69.07 | 0.56 | 0.57 | 0.57 | 0.69 | |||||||||||||||||||||
| HGH30CA | 45 | 6 | 16 | 60 | 40 | 10 | 40
60 |
70 | 97.4 | 20.25 | 6 | 12 | M8x10 | 8.5 | 9.5 | 13.8 | 28 | 26 | 14 | 12 | 9 | 80 | 20 | M8x25 | 48.5 | 71.87 | 0.66 | 0.53 | 0.53 | 0.88 | 4.47 |
| HGH30HA | 93 | 120.4 | 21.75 | 58.6 | 93.99 | 0.88 | 0.92 | 0.92 | 1.16 | ||||||||||||||||||||||
