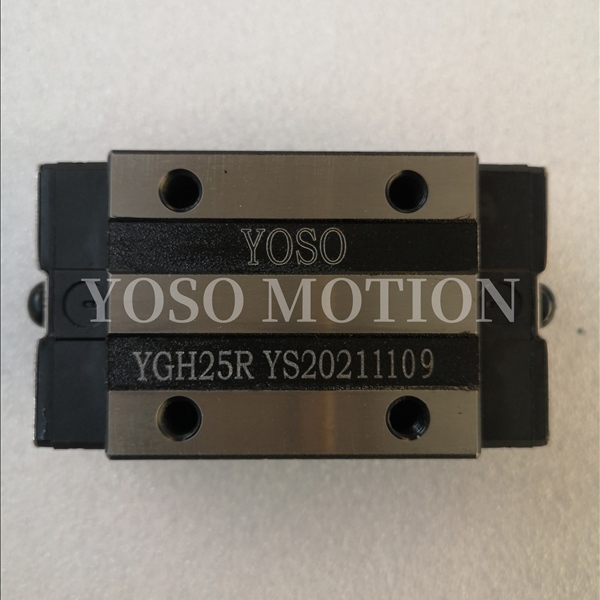

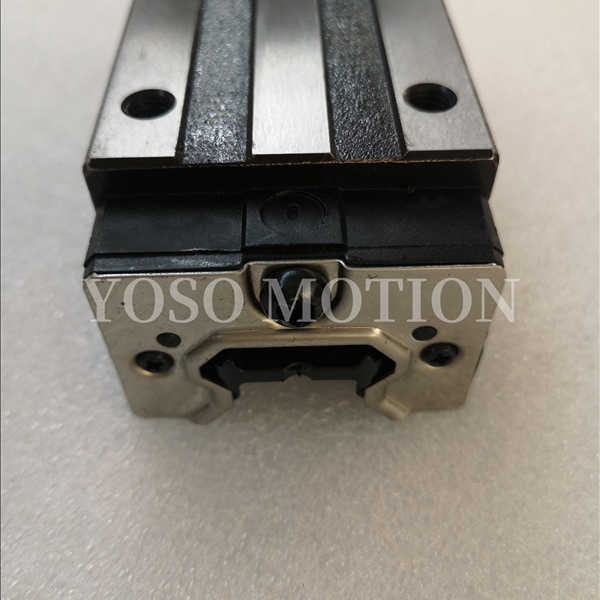

Hoë startheid, hoë noukeurigheid, hoë belastingvermoë in vier rigtings, outomatiese uitlijningfunksie
Hoof toevoering
Masjiene Senters.
NC Dreuners.
Voedselmasjien.
Grindmasjiene.
● CNC Masjien.
● Swaar Snymasjiene.
● Perforasie Masjien.
● Injeksie Vorm Masjien.
● Automatiseringstoerusting.
● Vervoertoerusting.
● Sluitingsmasjien.

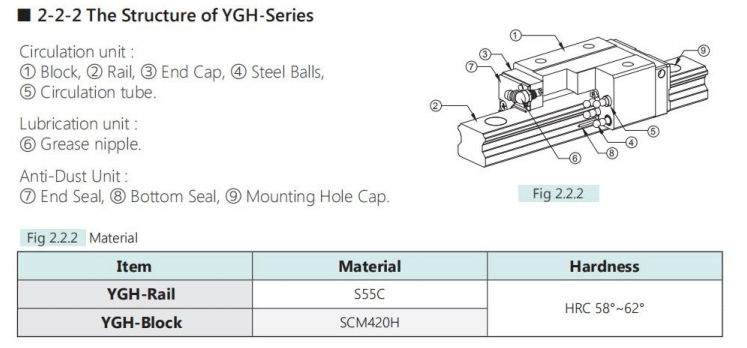

Die YG-reeks kan in uitwisselbare en nie-uitwisselbare tipes geklassifiseer word. Die groottes is identies; die enigste verskil tussen die twee tipes is dat die akkuraatheid van nie-uitwisselbare tipes tot UP-graad kan bereik omdat YOSO MorroN die lynêre gidsstel onder streng internasionale regulasie vervaardig. Uitwisselbare blokke en spore kan vrylik uitgewissel word; egter, as gevolg van tegniese probleme kan die akkuraatheid slegs tot H-graad bereik word. Dit is baie meer gemaklik vir klante wat lynnêre gids met hoë akkuraatheid nie nodig het nie, om uitwisselbare blokke en spore te hê.
Nie-uitwisselbare Tipekode:

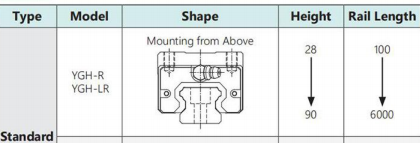

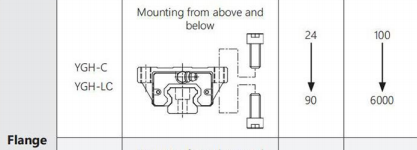

| Nominaal Model | Blok tipe | Hoogte van Montage Tipe | Dimensie | |
| Y | G:Standaard | R:Laag-Montage | 15,20,25,30,35,45,55,65 | |
| S:Laag-Samestelling | L:Gemiddeld-Samestelling | |||
| H:Hoog-Samestelling | ||||
| Flens Tipe | Lengte van Blok | Aantal Blokke Per Wag | Behang Kode | |
| C:Met Flens | N:Normaal | EX:2 | Standaard (Verwys asseblief na bladsy A26) | |
| L:Lank | ||||
| Twee Stelle per Asrail Spesiale Werksverrigting | ||||
| Lengte van Rail | Naukeurigheidsgraad | Voorbelading | Twee Sette per As | U:Gevit-Rail |
| Eenheid:mm | N:Normaal | ZF:Klein Speling | II | E:Spoor met Spesiale Maching |
| H:Hoog | ZO: Geen Voorbelading | |||
| P:Nauwkeurigheid | Z1:Ligte Voorbelading | |||
| SP:Super-Nauwkeurigheid | Z2:Gemiddelde Voorbelading | |||
| UP:Ultra-Nauwkeurigheid | Z3:Swaar Voorspanning | |||
| Blokoppervlakbehandeling | Spooroppervlakbehandeling | |||
| S:Standaard | S: Standaard | |||
| B1:Swart Oksidasie | B1:Swart Oksidasie | |||
| N1: Harde Krom Vermaking | N1:Hard Chrome Bedekking | |||
| P:Fosfaatbehandeling | P:Fosfaatbehandeling | |||
| N3:Nikel Bedekking | N3:Nikel Bedekking | |||
| N4:Raydent | N4:Raydent | |||
| N5:Chrome Bedekking | N5:Chrome Bedekking | |||

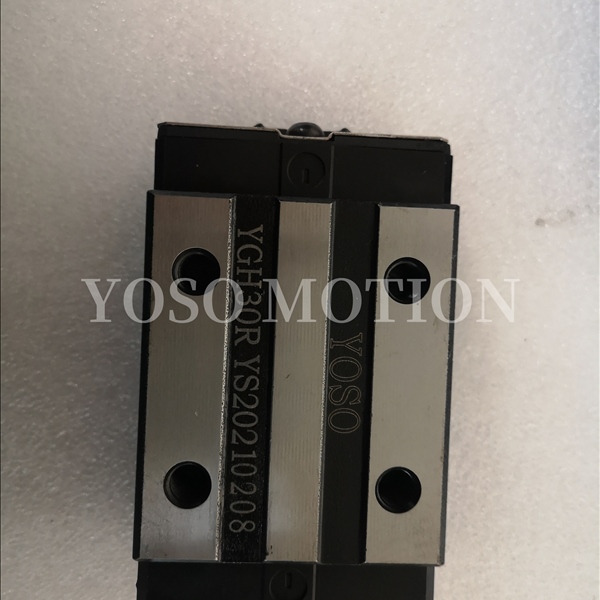

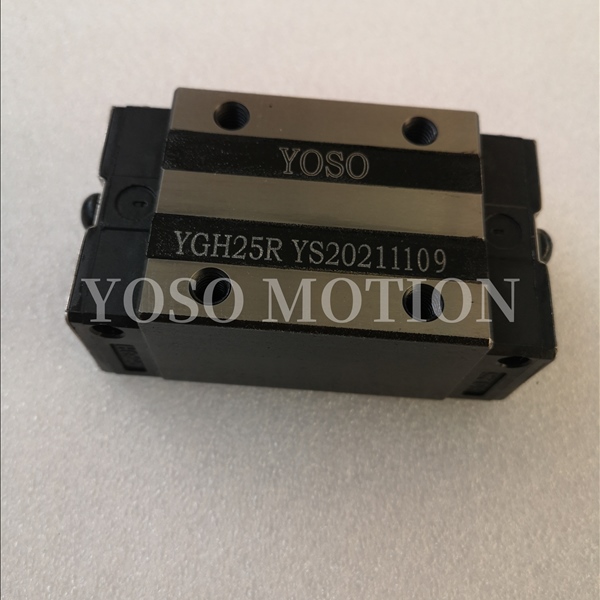

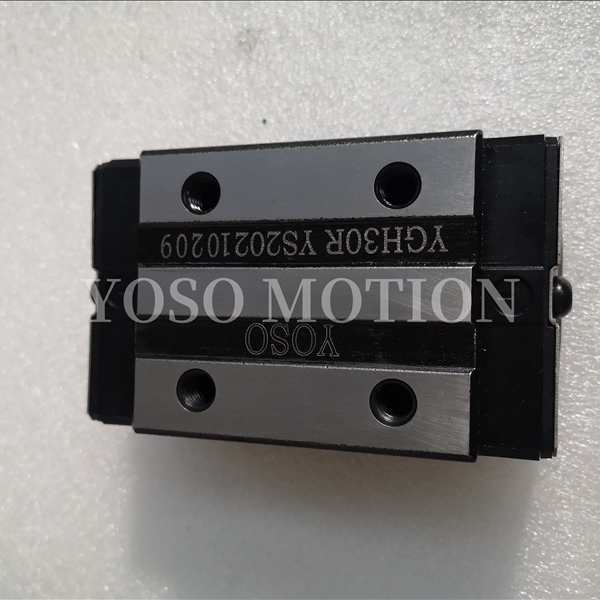

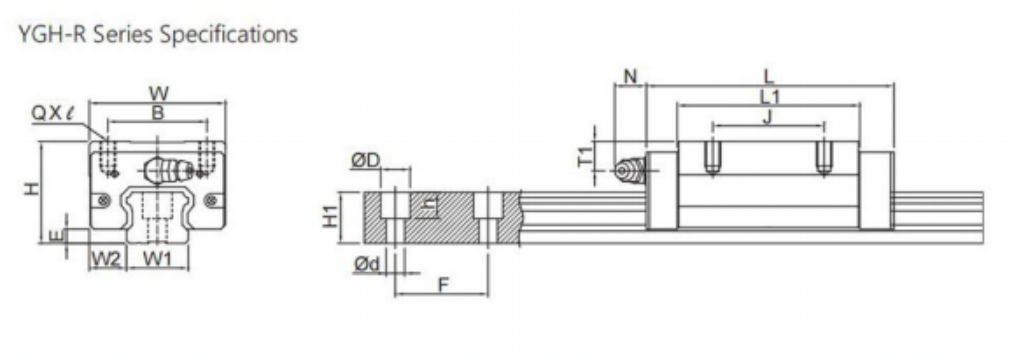

| Model NO. | Montage(mm) | Blokafmeting(mm) | Spoor(mm) | |||||||||||||||
| H | W2 | E | W | B | J | L | L1 | QXL | T1 | Oliegat | N | W1 | H1 | ød | h | ød | F | |
| YGH15R | 28 | 9.5 | 4.3 | 34 | 26 | 26 | 61.4 | 39.4 | M4x5 | 7.95 | M4X0.7 | 5.3 | 15 | 15 | 7.5 | 5.3 | 4.5 | 60 |
| YGH15LR | ||||||||||||||||||
| YGH20R | 30 | 12 | 4.6 | 44 | 32 | 36 | 77.5 | 50.5 | M5x6 | 6 | M6X1 | 12 | 20 | 17.5 | 9.5 | 8.5 | 6 | 60 |
| YGH20LR | 50 | 92.2 | 65.2 | |||||||||||||||
| YGH25R | 40 | 12.5 | 5.5 | 48 | 35 | 35 | 84 | 58 | M6x8 | 10 | M6X1 | 12 | 23 | 22 | 11 | 9 | 7 | 60 |
| YGH25LR | 50 | 104.6 | 78.6 | |||||||||||||||
| YGH30R | 45 | 16 | 6 | 60 | 40 | 40 | 97.4 | 70 | M8X10 | 9.5 | M6X1 | 12 | 28 | 26 | 14 | 12 | 9 | 80 |
| YGH30LR | 60 | 120.4 | 93 | |||||||||||||||
| YGH35R | 55 | 18 | 7.5 | 70 | 50 | 50 | 112.4 | 80 | M8X12 | 16 | M6X1 | 12 | 34 | 29 | 14 | 12 | 9 | 80 |
| YGH35LR | 72 | 138.2 | 105.8 | |||||||||||||||
| YGH45R | 70 | 20.5 | 9.5 | 86 | 60 | 60 | 139.4 | 97 | M10X17 | 18.5 | PT1/8 | 12.9 | 45 | 38 | 20 | 17 | 14 | 105 |
| YGH45LR | 80 | 171.2 | 128.8 | |||||||||||||||
| YGH55R | 80 | 23.5 | 13 | 100 | 75 | 75 | 166.7 | 117.7 | M12X18 | 22 | PT1/8 | 12.9 | 53 | 44 | 23 | 20 | 16 | 120 |
| YGH55LR | 95 | 204.8 | 155.8 | |||||||||||||||
| YGH65R | 90 | 31.5 | 15 | 126 | 76 | 70 | 200.2 | 144.2 | M16X20 | 15 | PT1/8 | 12.9 | 63 | 53 | 26 | 22 | 18 | 150 |
| YGH65LR | 120 | 259.6 | 203.6 | |||||||||||||||

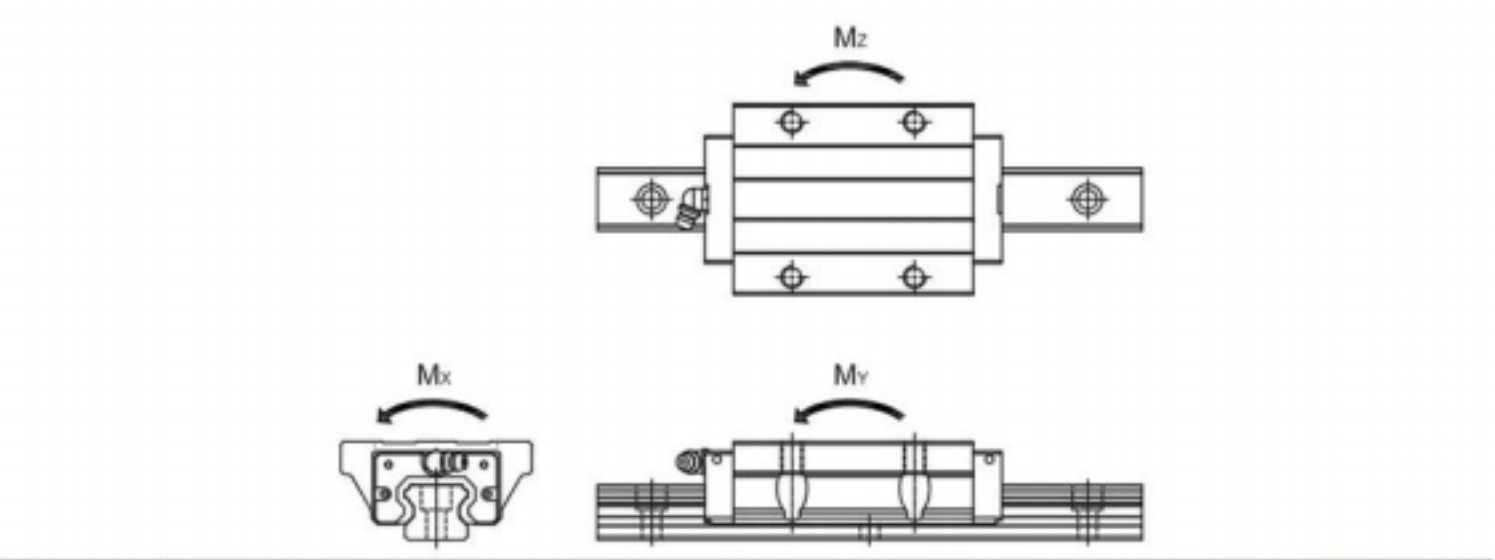

| Model NO. | Laai Gradering (kgf) | Statiske Toelaatbare Moment | Gewig | ||||||
| Mx(kgf-mm) | My(kgf-mm) | Mz(kgf-mm) | Blok(kg) | Spoor(kg/m) | |||||
| C | Co | Enkele Blok | Enkele Blok | Dubbel blok | Enkele Blok | Dubbel blok | |||
| YGH15R | 1206 | 2206 | 16,436 | 14,884 | 70,960 | 14,884 | 70,960 | 0.17 | 1.45 |
| YGH15LR | 1343 | 2574 | 19,175 | 20,429 | 95,224 | 20,429 | 95,224 | 0.18 | |
| YGH20R | 2050 | 3696 | 37,334 | 33,268 | 157,298 | 33,268 | 157,298 | 0.3 | 2.21 |
| YGH20LR | 2553 | 5058 | 51,089 | 63,229 | 284,163 | 63,229 | 284,163 | 0.39 | |
| YGH25R | 2581 | 4503 | 52,239 | 43,407 | 207,324 | 43,407 | 207,324 | 0.51 | 3.21 |
| YGH25LR | 3248 | 6255 | 72,554 | 85,112 | 391,311 | 85,112 | 391,311 | 0.69 | |
| YGH30R | 3807 | 6483 | 90,722 | 74,970 | 355,321 | 74,970 | 355,321 | 0.88 | 4.47 |
| YGH30LR | 4791 | 9004 | 126,003 | 147,000 | 677,068 | 147,000 | 677,068 | 1.16 | |
| YGH35R | 5090 | 8346 | 142,722 | 106,070 | 519,799 | 106,070 | 519,799 | 1.45 | 6.31 |
| YGH35LR | 6667 | 12274 | 209,885 | 233,977 | 1,070,533 | 233,977 | 1,070,533 | 1.92 | |
| YGH45R | 7572 | 12808 | 292,657 | 220,751 | 1,030,183 | 220,751 | 1,030,183 | 2.73 | 10.4 |
| YGH45LR | 8852 | 16010 | 365,821 | 348,554 | 1,598,703 | 348,554 | 1,598,703 | 3.61 | |
| YGH55R | 14703 | 21613 | 571,342 | 411,729 | 2,019,184 | 411,729 | 2,019,184 | 4.17 | 15.08 |
| YGH55LR | 17349 | 27377 | 723,699 | 670,530 | 3,148,637 | 670,530 | 3,148,637 | 5.50 | |
| YGH65R | 22526 | 31486 | 973,074 | 695,840 | 3,594,277 | 695,840 | 3,594,277 | 7 | 21.18 |
| YGH65LR | 27895 | 42731 | 1,320,601 | 1,307,568 | 6,312,759 | 1,307,568 | 6,312,759 | 9.82 | |

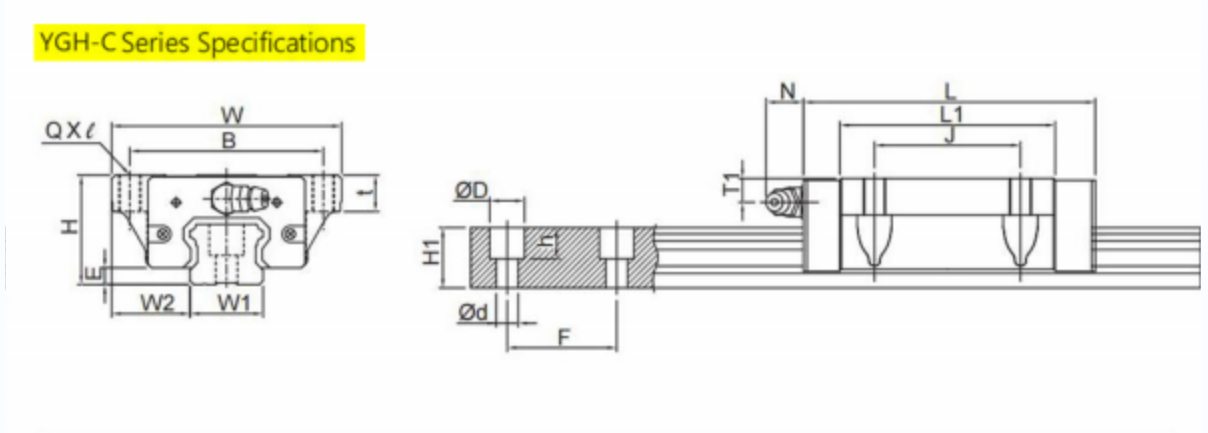

| Modelnr. | Montage(mm) | Blokafmeting (mm) | Spoor (mm) | ||||||||||||||||
| H | W2 | E | W | B | J | t | L | L1 | QXI | T1 | Oliegat | N | W1 | H1 | ød | h | ød | F | |
| YGH15C | 24 | 16 | 4.3 | 47 | 38 | 30 | 8.9 | 61.4 | 39.4 | M5X9 | 3.95 | M4X0.7 | 5.3 | 15 | 15 | 7.5 | 5.3 | 4.5 | 60 |
| YGH15LC | |||||||||||||||||||
| YGH20C | 30 | 21.5 | 4.6 | 63 | 53 | 40 | 10 | 77.5 | 50.5 | M6X10 | 6 | M6X1 | 12 | 20 | 17.5 | 9.5 | 8.5 | 6 | 60 |
| YGH20LC | 92.2 | 65.2 | |||||||||||||||||
| YGH25C | 36 | 23.5 | 5.5 | 70 | 57 | 45 | 14 | 84 | 58 | M8X14 | 6 | M6X1 | 12 | 23 | 22 | 11 | 9 | 7 | 60 |
| YGH25LC | 104.6 | 78.6 | |||||||||||||||||
| YGH30C | 42 | 31 | 6 | 90 | 72 | 52 | 16 | 97.4 | 70 | M10X16 | 6.5 | M6X1 | 12 | 28 | 26 | 14 | 12 | 9 | 80 |
| YGH30LC | 120.4 | 93 | |||||||||||||||||
| YGH35C | 48 | 33 | 7.5 | 100 | 82 | 62 | 18 | 112.4 | 80 | M10X18 | 9 | M6X1 | 12 | 34 | 29 | 14 | 12 | 9 | 80 |
| YGH35LC | 138.2 | 105.8 | |||||||||||||||||
| YGH45C | 60 | 37.5 | 9.5 | 120 | 100 | 80 | 22 | 139.4 | 97 | M12X22 | 8.5 | PT1/8 | 12.9 | 45 | 38 | 20 | 17 | 14 | 105 |
| YGH45LC | 171.2 | 128.8 | |||||||||||||||||
| YGH55C | 70 | 43.5 | 13 | 140 | 116 | 95 | 26.5 | 166.7 | 117.7 | M14X27 | 12 | PT1/8 | 12.9 | 53 | 44 | 23 | 20 | 16 | 120 |
| YGH55LC | 204.8 | 155.8 | |||||||||||||||||
| YGH65C | 90 | 53.5 | 15 | 170 | 142 | 110 | 37.5 | 200.2 | 144.2 | M16X38 | 15 | PT1/8 | 12.9 | 63 | 53 | 26 | 22 | 18 | 150 |
| YGH65LC | 259.6 | 203.6 | |||||||||||||||||

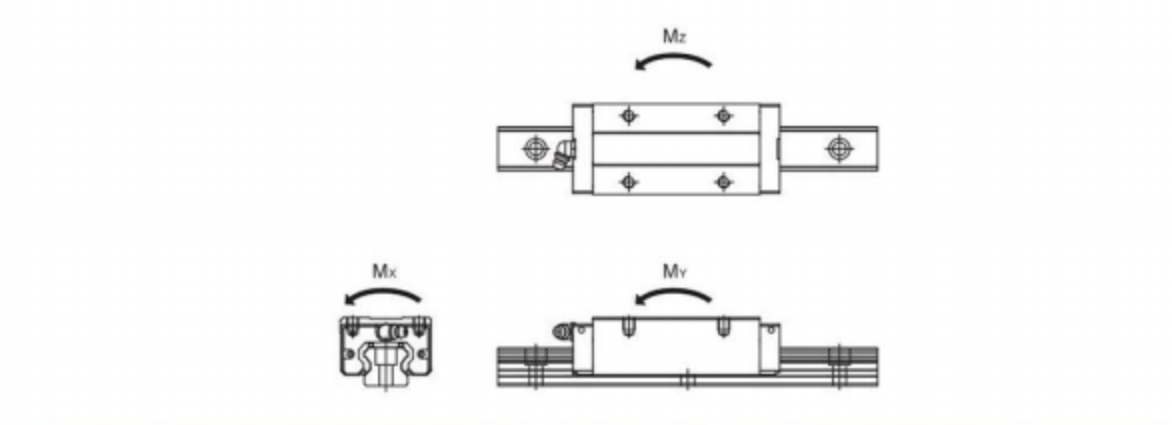

| Model NO. | Laaiwaarde (kgf) | Statiske Toelaatbare Moment | Gewig | ||||||
| Mx(kgf-mm) | My(kgf-mm) | Mz(kgf-mm) | Blok (kg) | Spoor (kg⁄m) | |||||
| C | Co | Enkele Blok | Enkele Blok | Dubbel blok | Enkele Blok | Dubbel blok | |||
| YGH15C | 1206 | 2206 | 16,436 | 14,884 | 70,960 | 14,884 | 70,960 | 0.17 | 1.45 |
| YGH15LC | 1343 | 2574 | 19,175 | 20,429 | 95,224 | 20,429 | 95,224 | 0.2 | |
| YGH20C | 2050 | 3696 | 37,334 | 33,268 | 157,298 | 33,268 | 157,298 | 0.40 | 2.21 |
| YGH20LC | 2553 | 5058 | 51,089 | 63,229 | 284,163 | 63,229 | 284,163 | 0.52 | |
| YGH25C | 2581 | 4503 | 52,239 | 43,407 | 207,324 | 43,407 | 207,324 | 0.59 | 3.21 |
| YGH25LC | 3248 | 6255 | 72,554 | 85,112 | 391,311 | 85,112 | 391,311 | 0.80 | |
| YGH30C | 3807 | 6483 | 90,722 | 74,970 | 355,321 | 74,970 | 355,321 | 1.09 | 4.47 |
| YGH30LC | 4791 | 9004 | 126,003 | 147,000 | 677,068 | 147,000 | 677,068 | 1.44 | |
| YGH35C | 5090 | 8346 | 142,722 | 106,070 | 519,799 | 106,070 | 519,799 | 1.56 | 6.3 |
| YGH35LC | 6667 | 12274 | 209,885 | 233,977 | 1,070,533 | 233,977 | 1,070,533 | 2.06 | |
| YGH45C | 7572 | 12808 | 292,657 | 220,751 | 1,030,183 | 220,751 | 1,030,183 | 2.79 | 10.41 |
| YGH45LC | 8852 | 16010 | 365,821 | 348,554 | 1,598,703 | 348,554 | 1,598,703 | 3.69 | |
| YGH55C | 14703 | 21613 | 571,342 | 411,729 | 2,019,184 | 411,729 | 2,019,184 | 4.52 | 15.08 |
| YGH55LC | 17349 | 27377 | 723,699 | 670,530 | 3,148,637 | 670,530 | 3,148,637 | 5.96 | |
| YGH65C | 22526 | 31486 | 973,074 | 695,840 | 3,594,277 | 695,840 | 3,594,277 | 9.17 | 21.08 |
| YGH65LC | 27895 | 42731 | 1,320,601 | 1,307,568 | 6,312,759 | 1,307,568 | 6,312,759 | 12.98 | |
